Oldsmobile
>>
1987
>>
Cutlass V8-307 5.0L VIN 9 4-bbl HP
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Torque Converter Clutch & Vehicle Speed Sensor (VSS)
Torque Converter Clutch & Vehicle Speed Sensor (VSS)

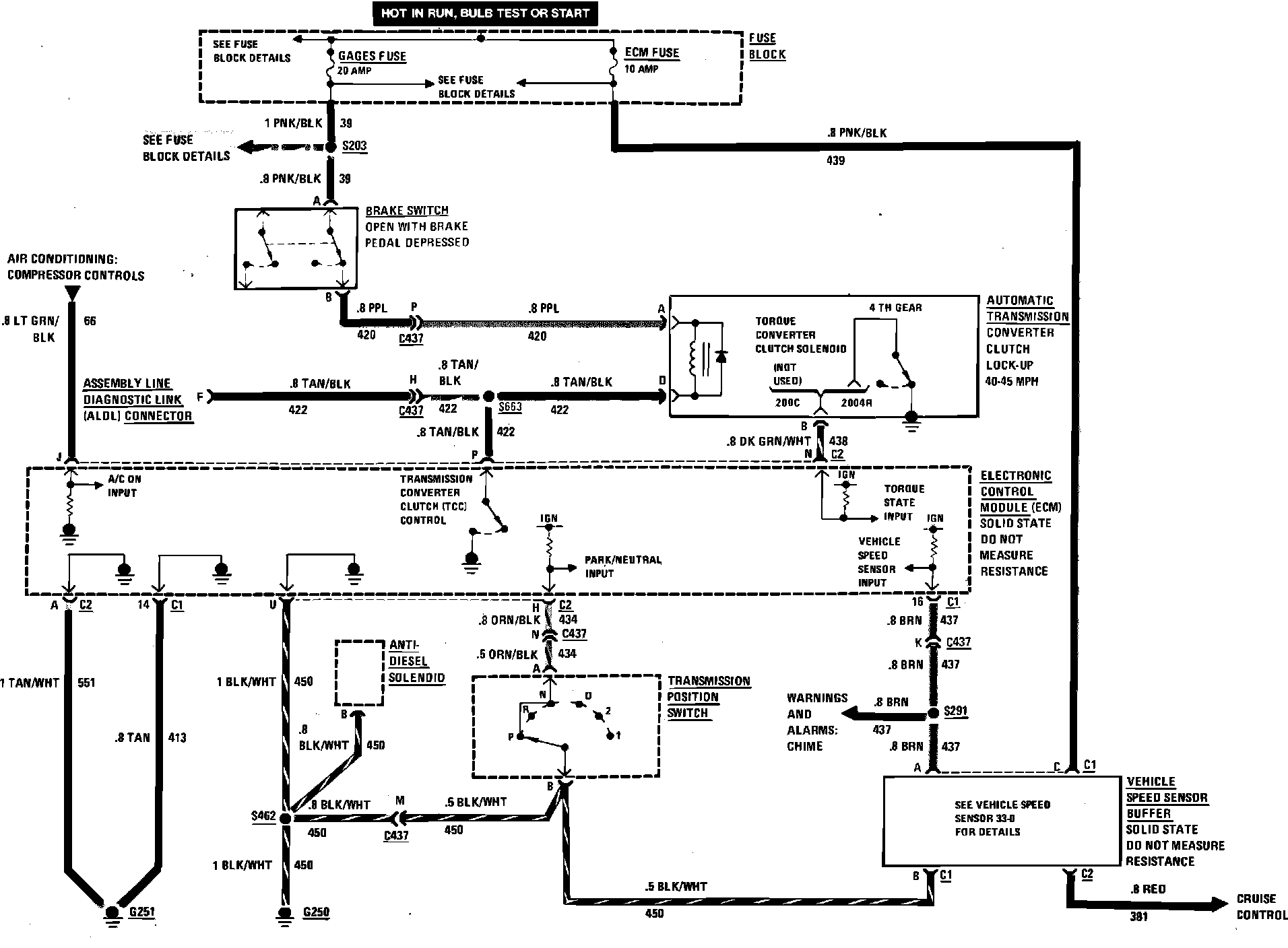

Computer Command Control Wiring Circuit (Vehicle Sensor & Torque Converter Clutch) W/VIN Y:
Computer Command Control Wiring Circuit (Vehicle Sensor & Torque Converter Clutch) W/VIN 9:
