Computer Command Control Wiring Circuit (Service Engine Soon & Ignition) W/VIN 9:

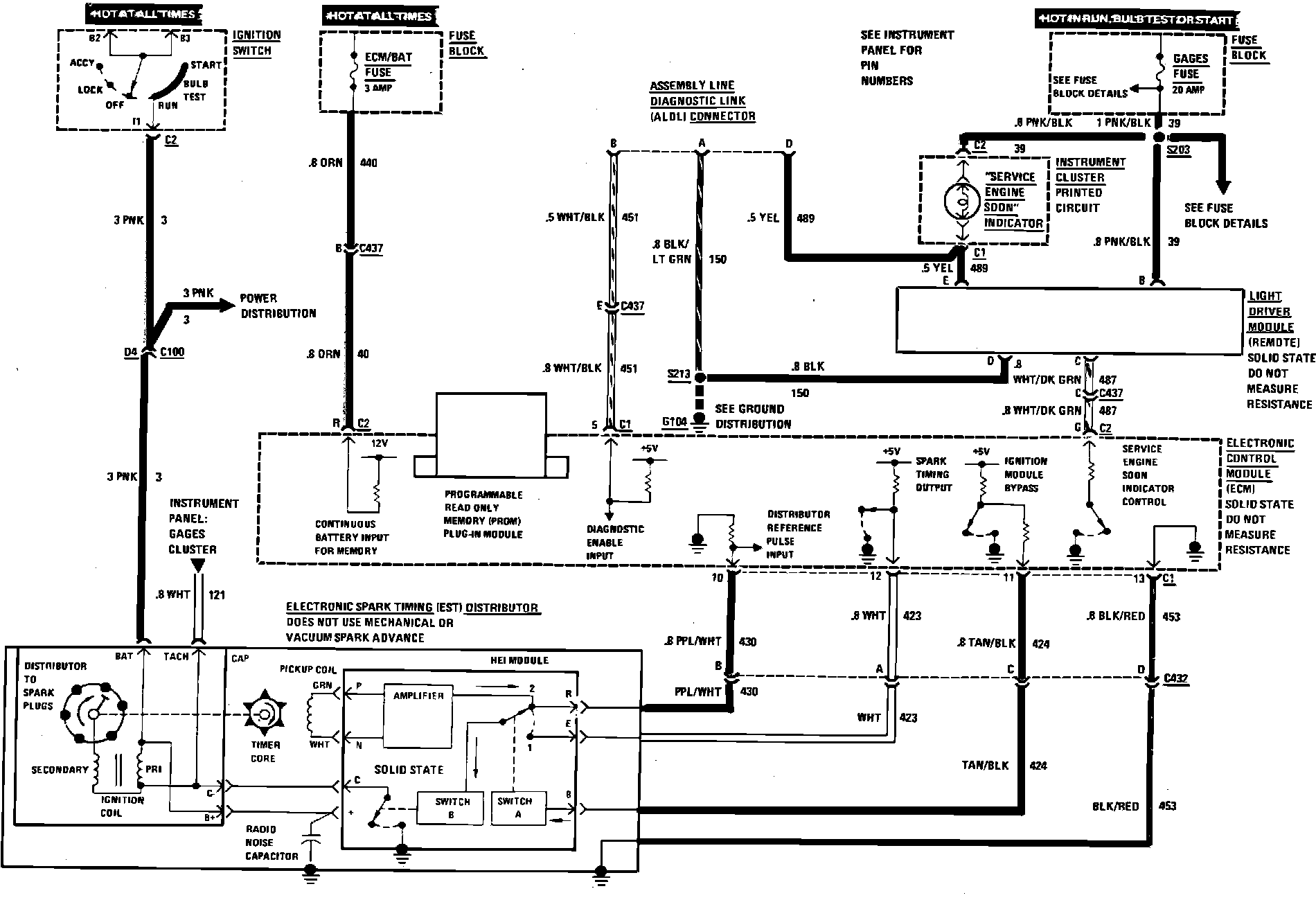

Computer Command Control Wiring Circuit (Ignition & Service Engine Soon) W/VIN Y:
