Firenza L4-121 2.0L VIN K TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Figure 8 (2.0L) OHV TBI. (Vin 1)
Figure 8 (2.0L) OHV TBI. (Vin 1)

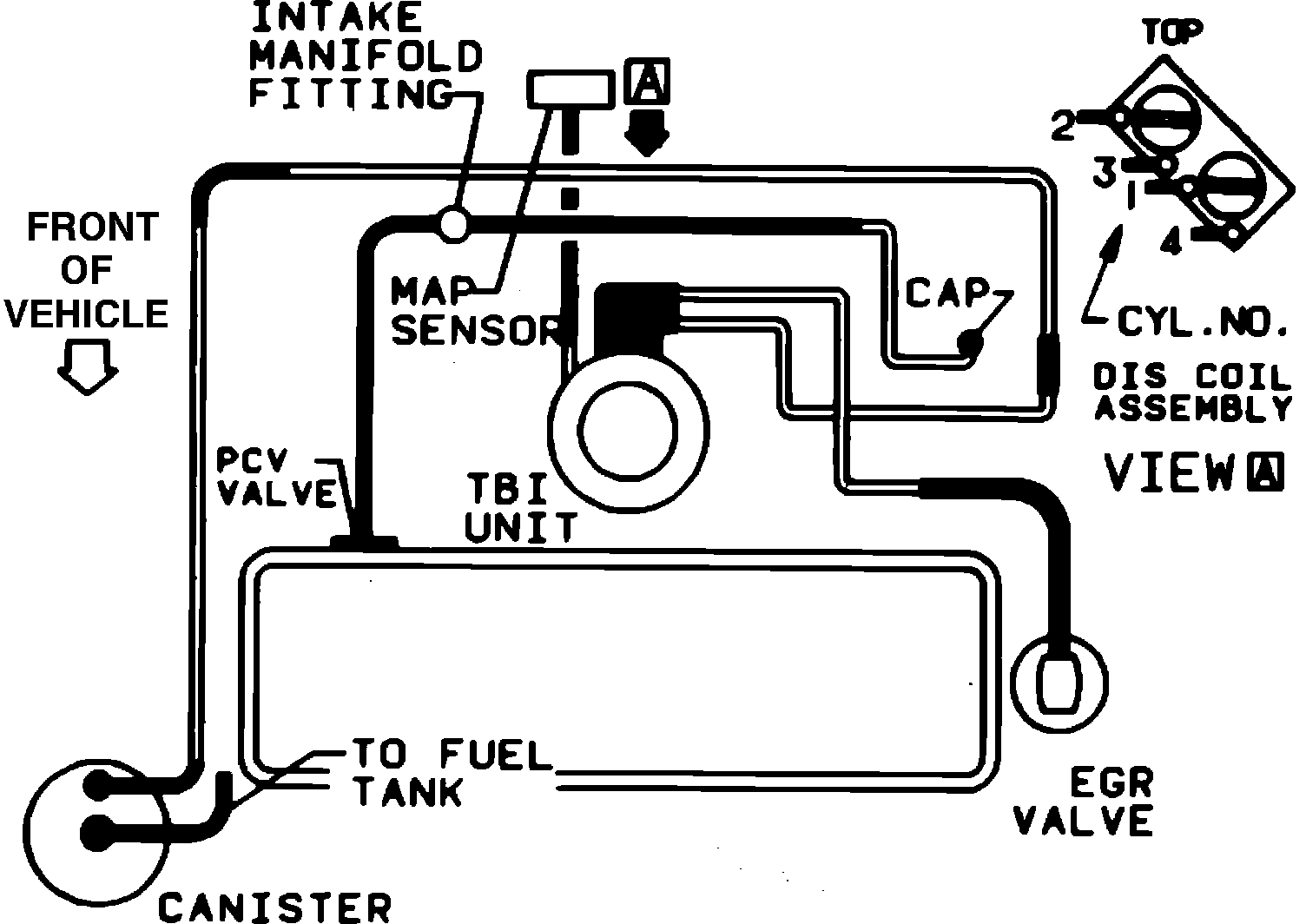

Fig. 8 Vacuum Hose Routing. W/4-121 (2.0L) OHV TBI (VIN 1):
