Coolant Level Indicator Lamp

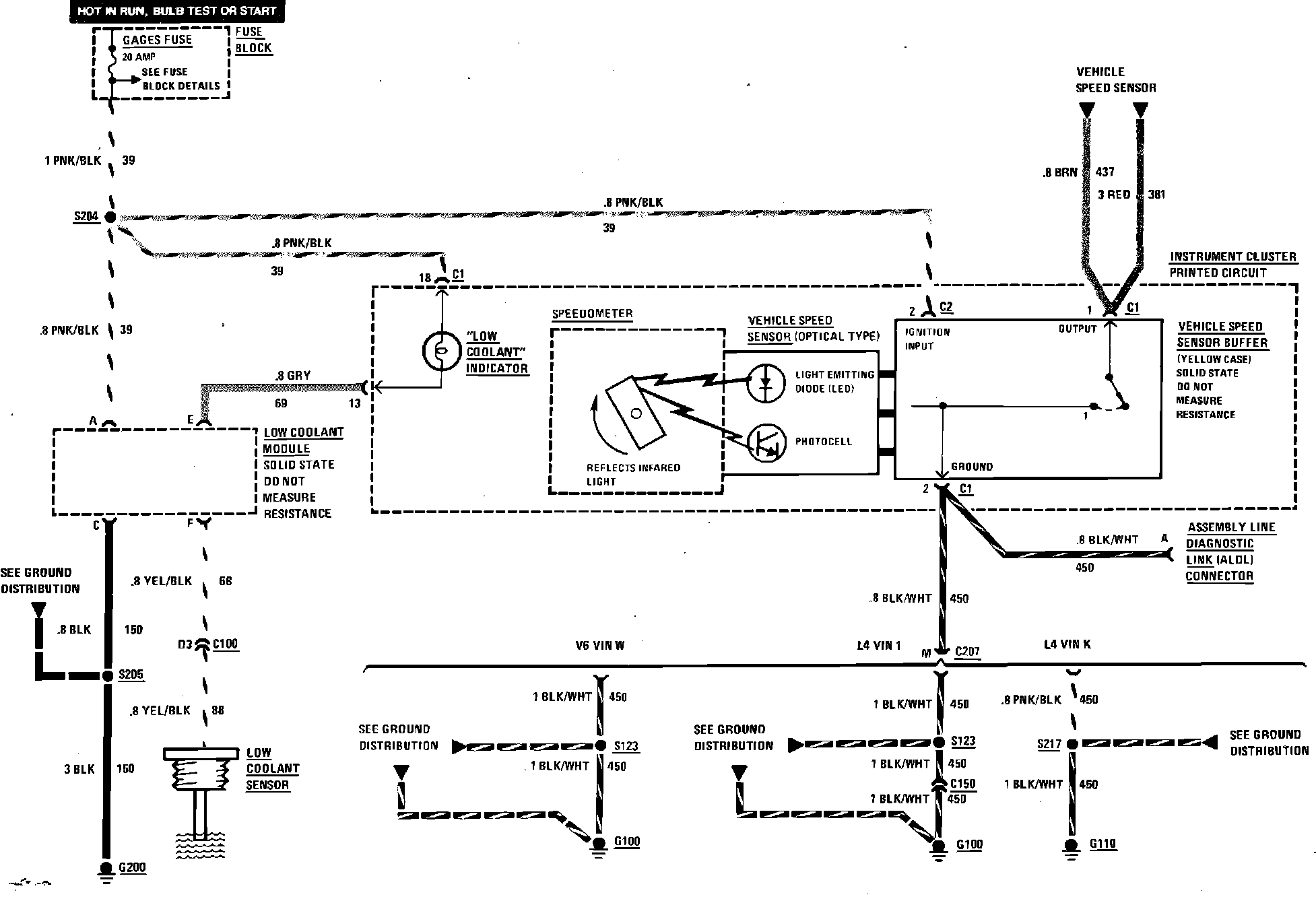

Fig. 190 Instrument Panel (Indicators Cluster) Vehicle Speed Sensor Low Coolant Indicator:
