G100 & G111, Part 2 of 2
G100 & G111, Part 2 of 2

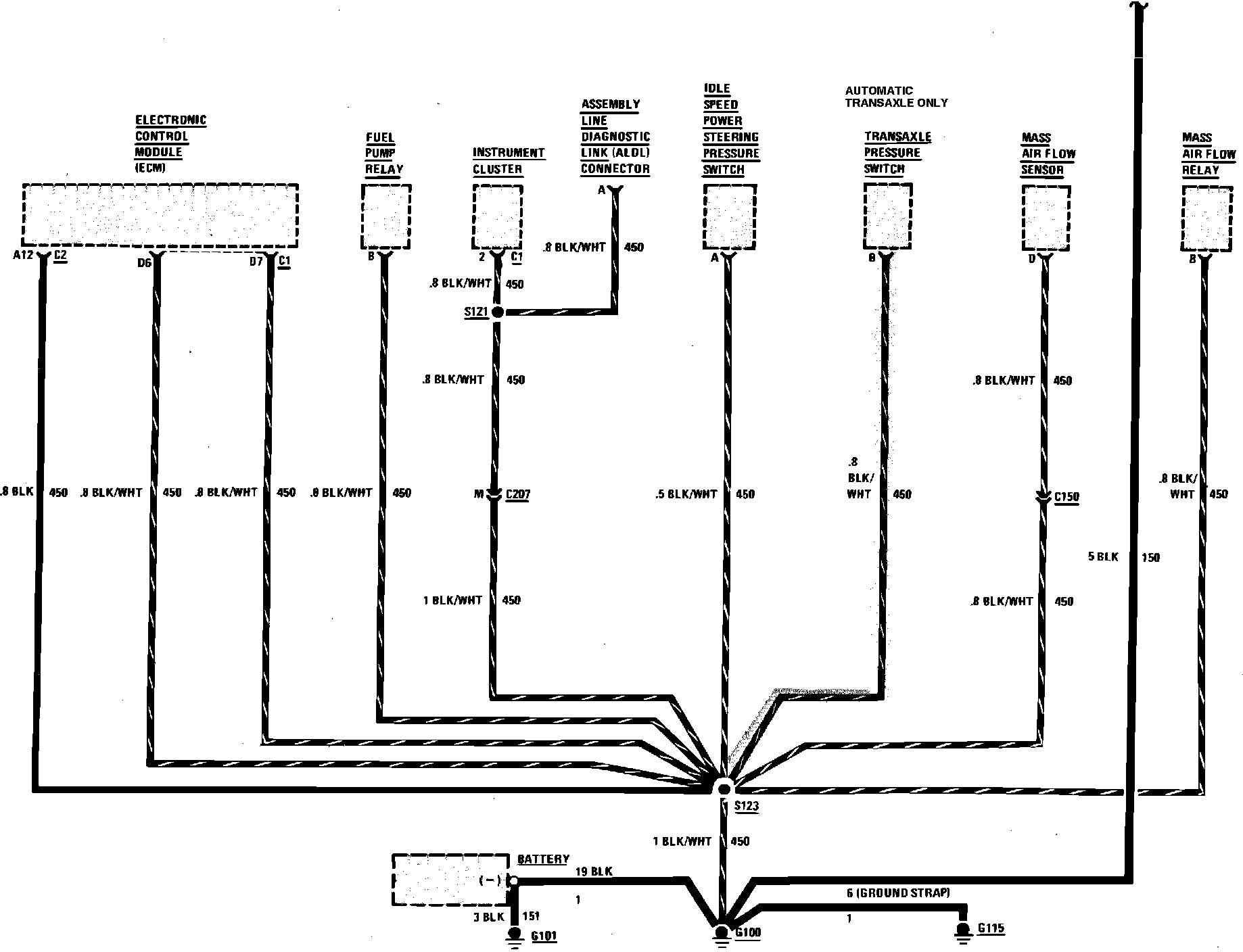

Fig. 145 G100 & G111 (Part 2 Of 2) W/V6-173/2.8L Engine:
