Ignition System & Service Engine Soon (SES) Indicator

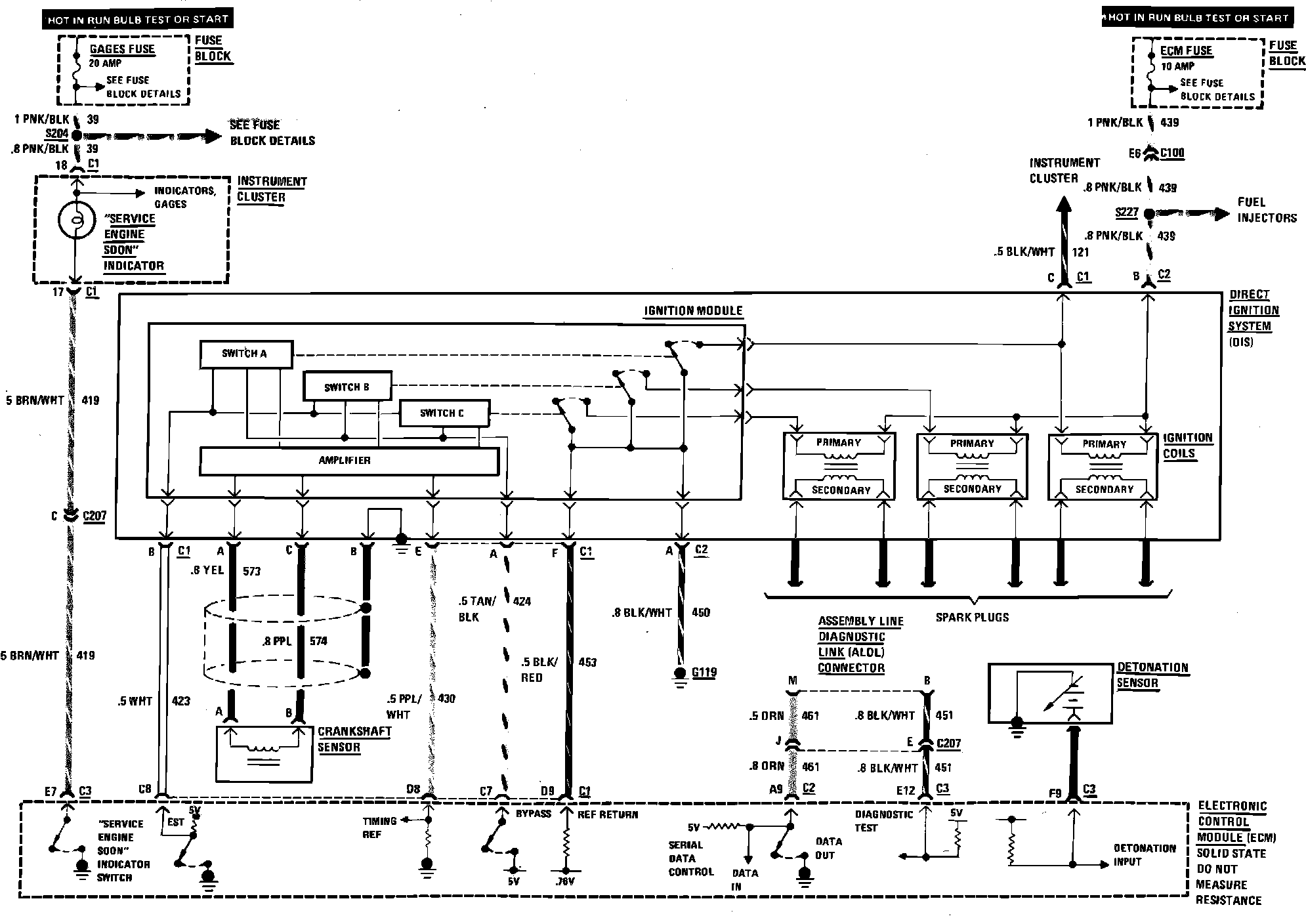

Fig. 238 Multi-Port Fuel Injection Wiring Circuit (Ignition & Service Engine Soon Light) W/V6-173/2.8L Engine:
