Home >> Oldsmobile >> 1987 >> Ninety-Eight V6-231 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> W/Electronic A/C

W/Electronic A/C

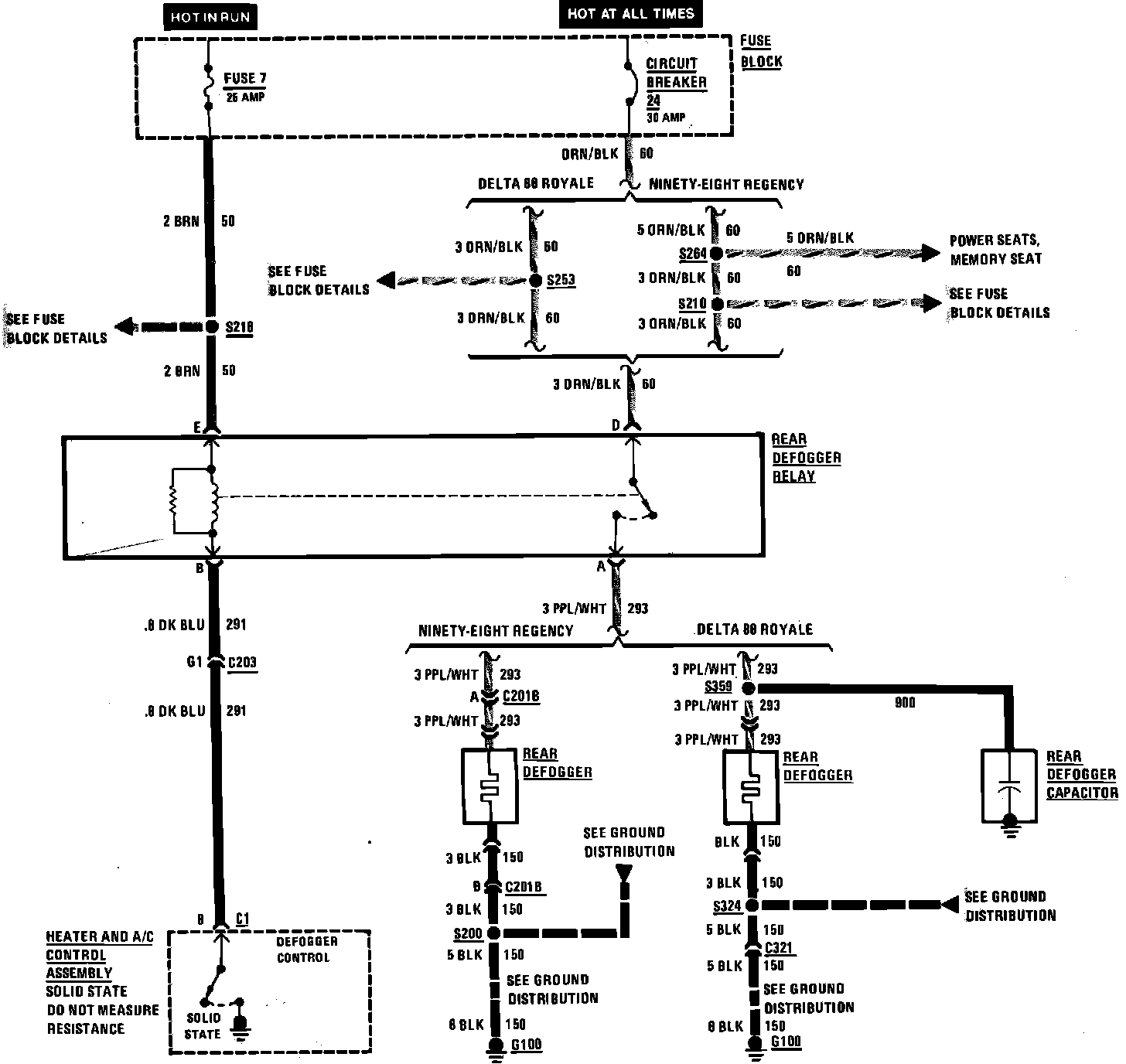

Defogger Wiring Circuit (W/Electronic A/C):
