Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>

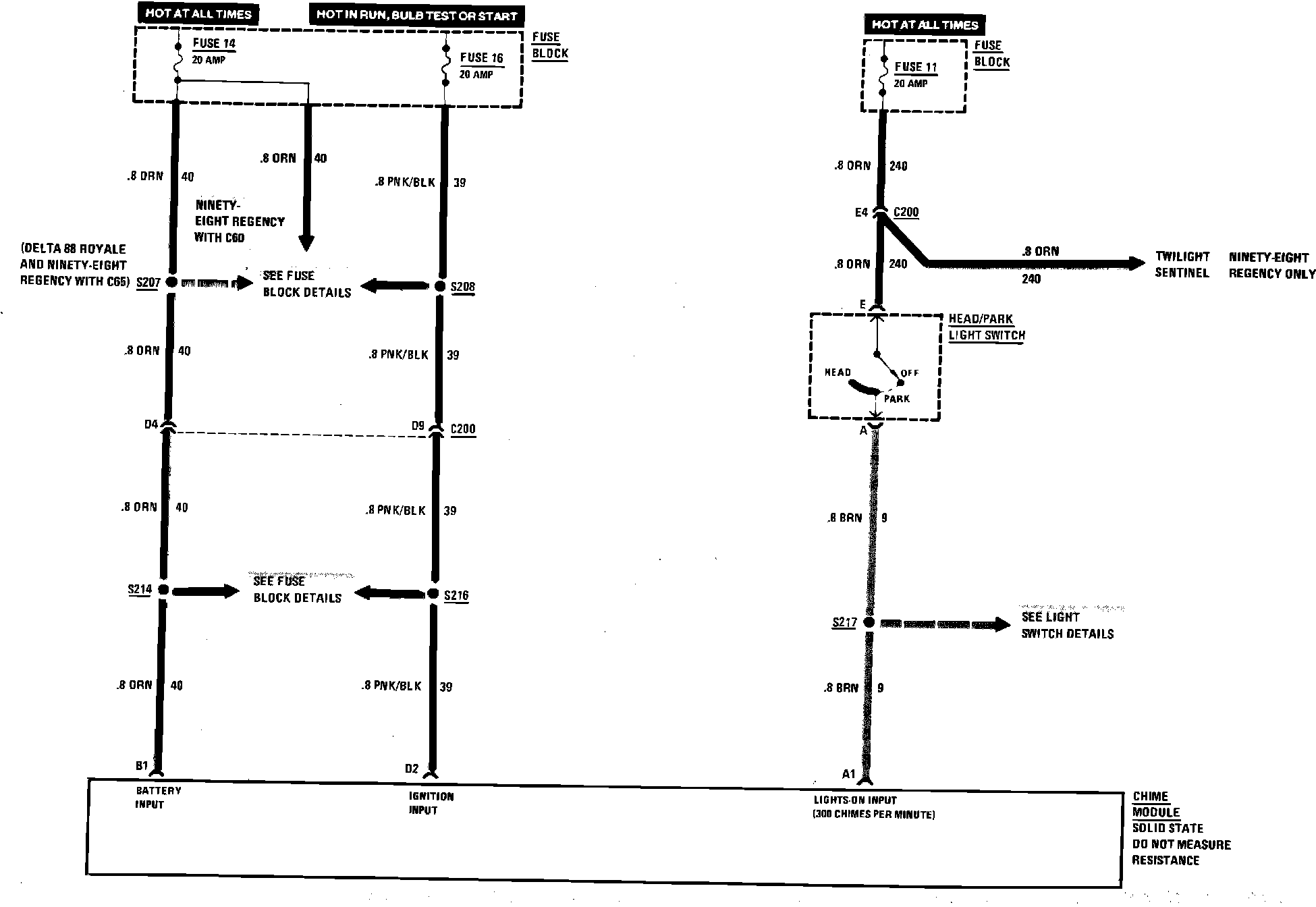

With Chimes Less Reminder Package, Part 1 of 2
With Chimes Less Reminder Package, Part 1 of 2
Alarms & Warning Systems Wiring Circuit (Less):
Alarms & Warning Systems Wiring Circuit (Less):
