Trunk Lamp
Trunk Lamp

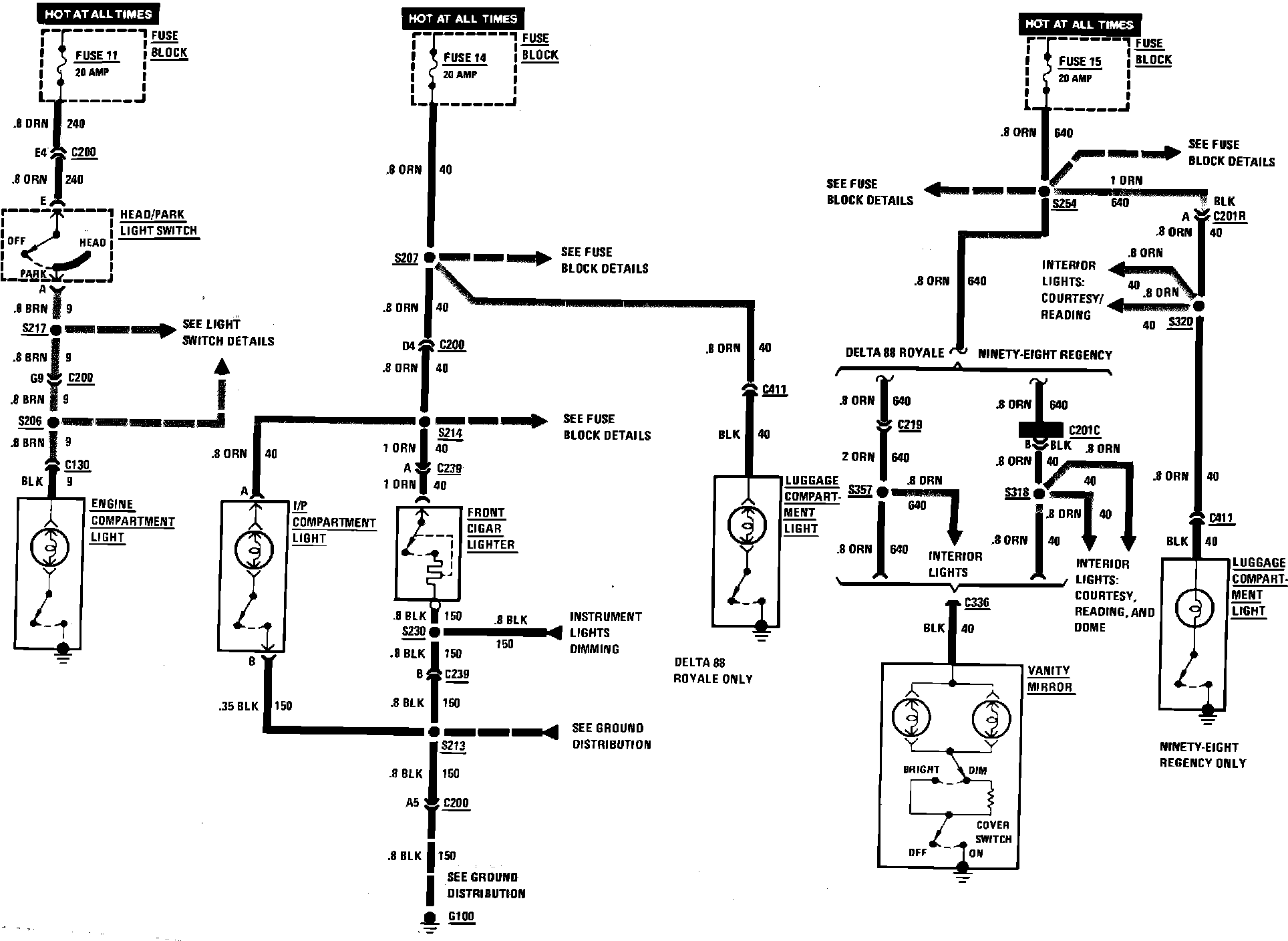

Interior Lamps & Lighters Wiring Circuit (Engine Compartment Lamp, Front Cigar Lighter, Glove Box, Trunk & Vanity Mirror Lamps):
