Oldsmobile
>>
1987
>>
Ninety-Eight V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Mirrors
>>
With Digital Cluster
With Digital Cluster

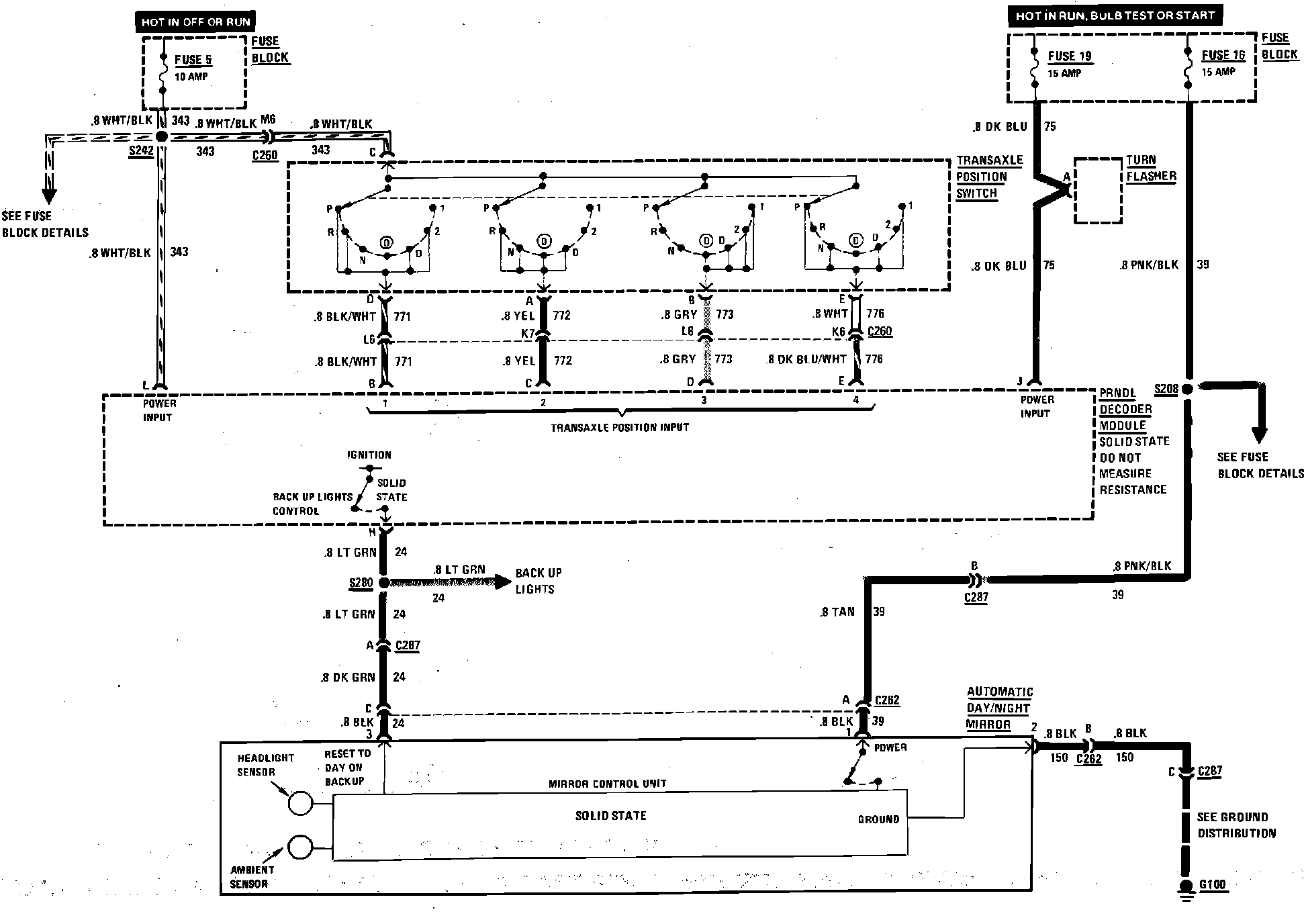

Automatic Day/Night Mirror Wiring Circuit (W/Digital Cluster):
