With Electronic Tuning

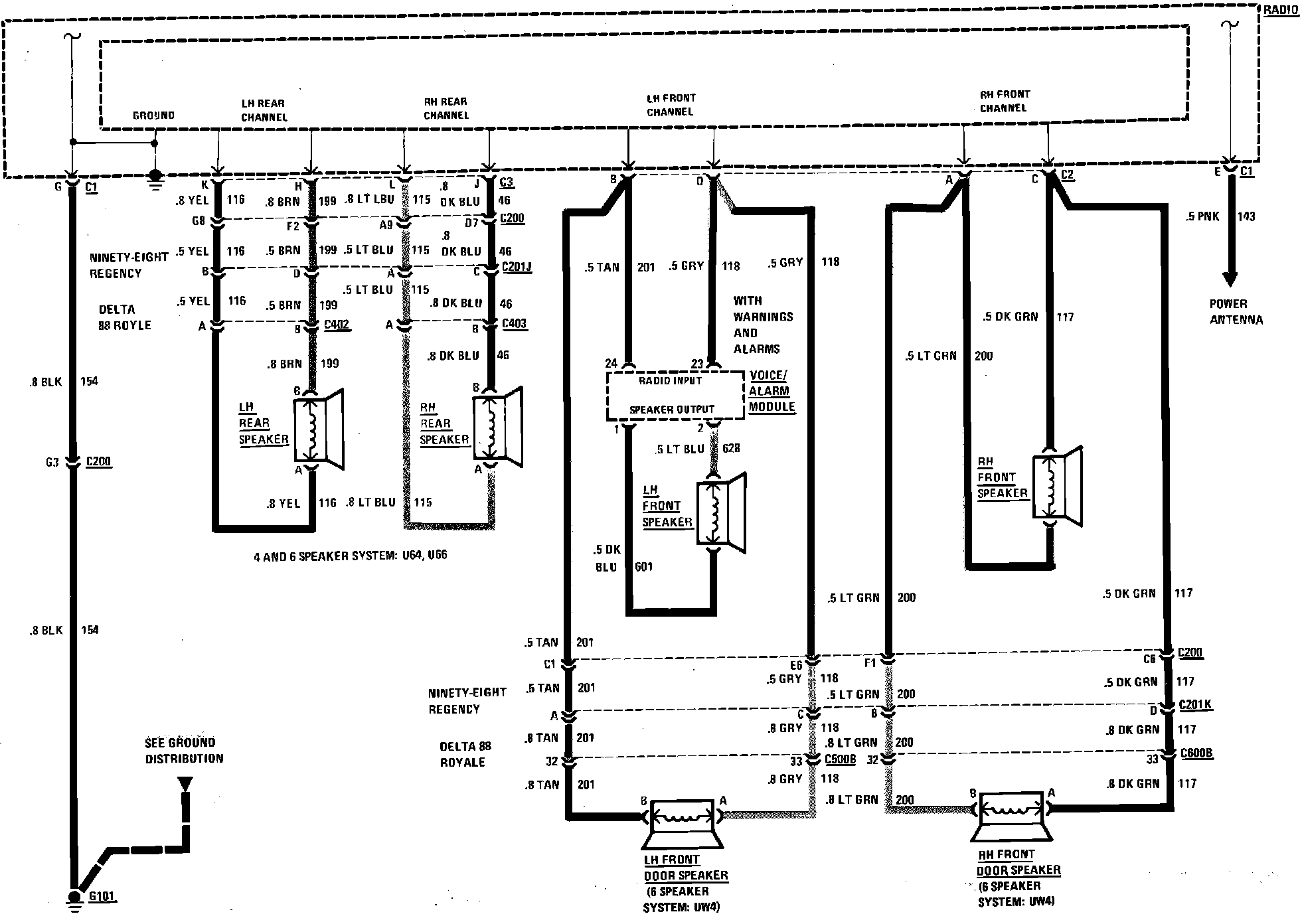

Radio Wiring Circuit W/Electronic Tuning:

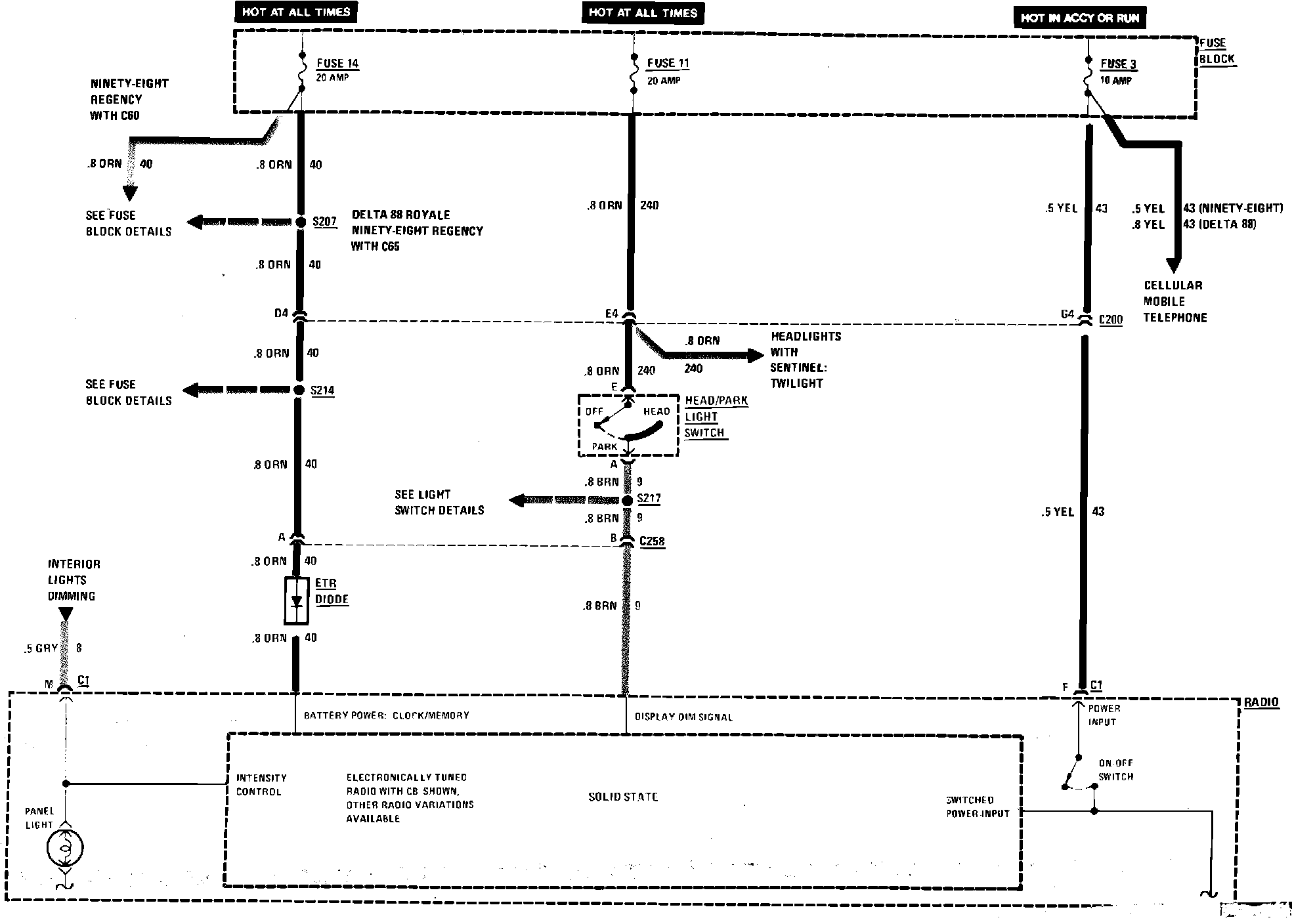

Radio Wiring Circuit W/Electronic Tuning:
