Fuel Gauge

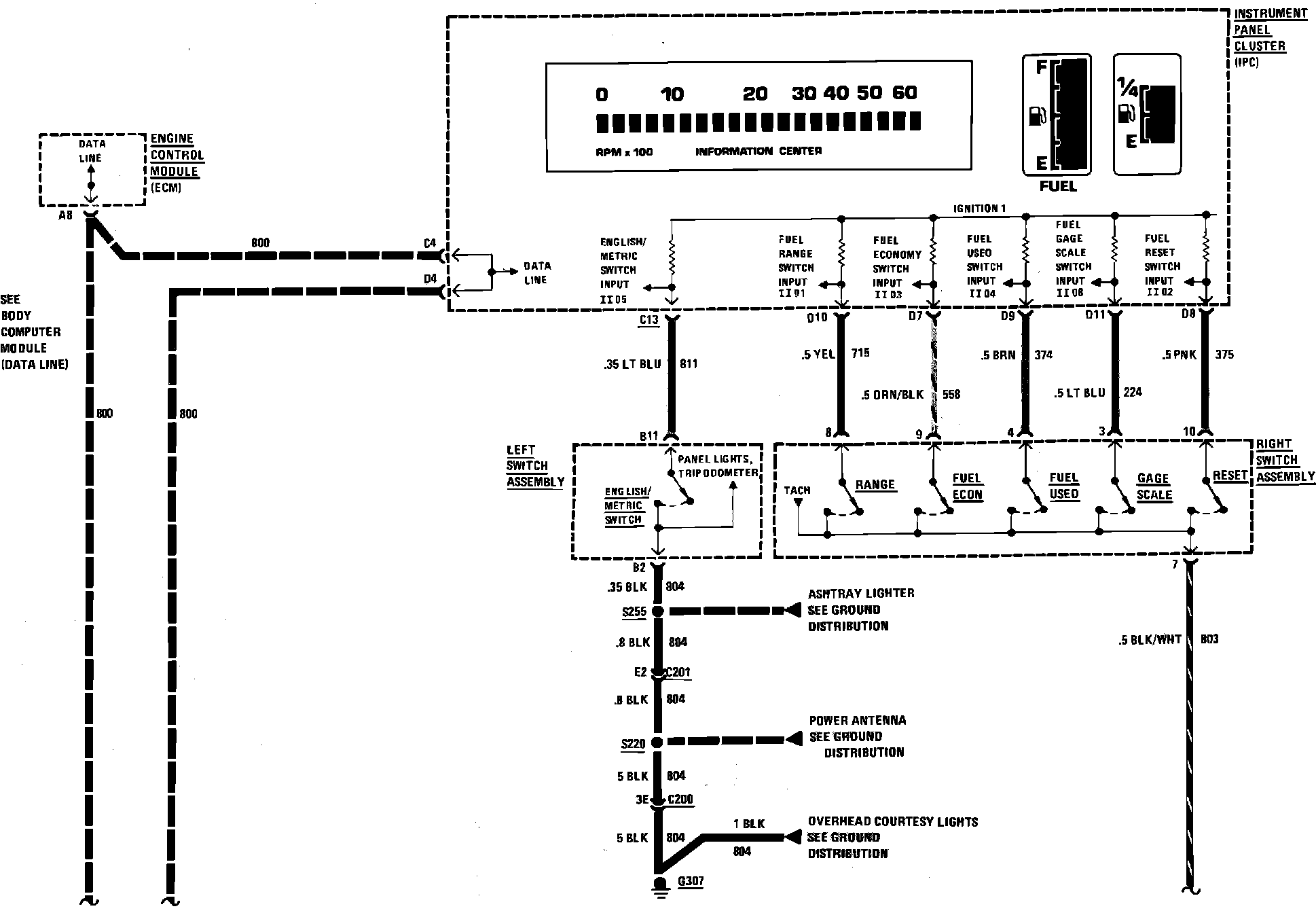

Instrument Panel Digital Cluster Wiring Circuit (Fuel Gauge, Part 1 Of 2):

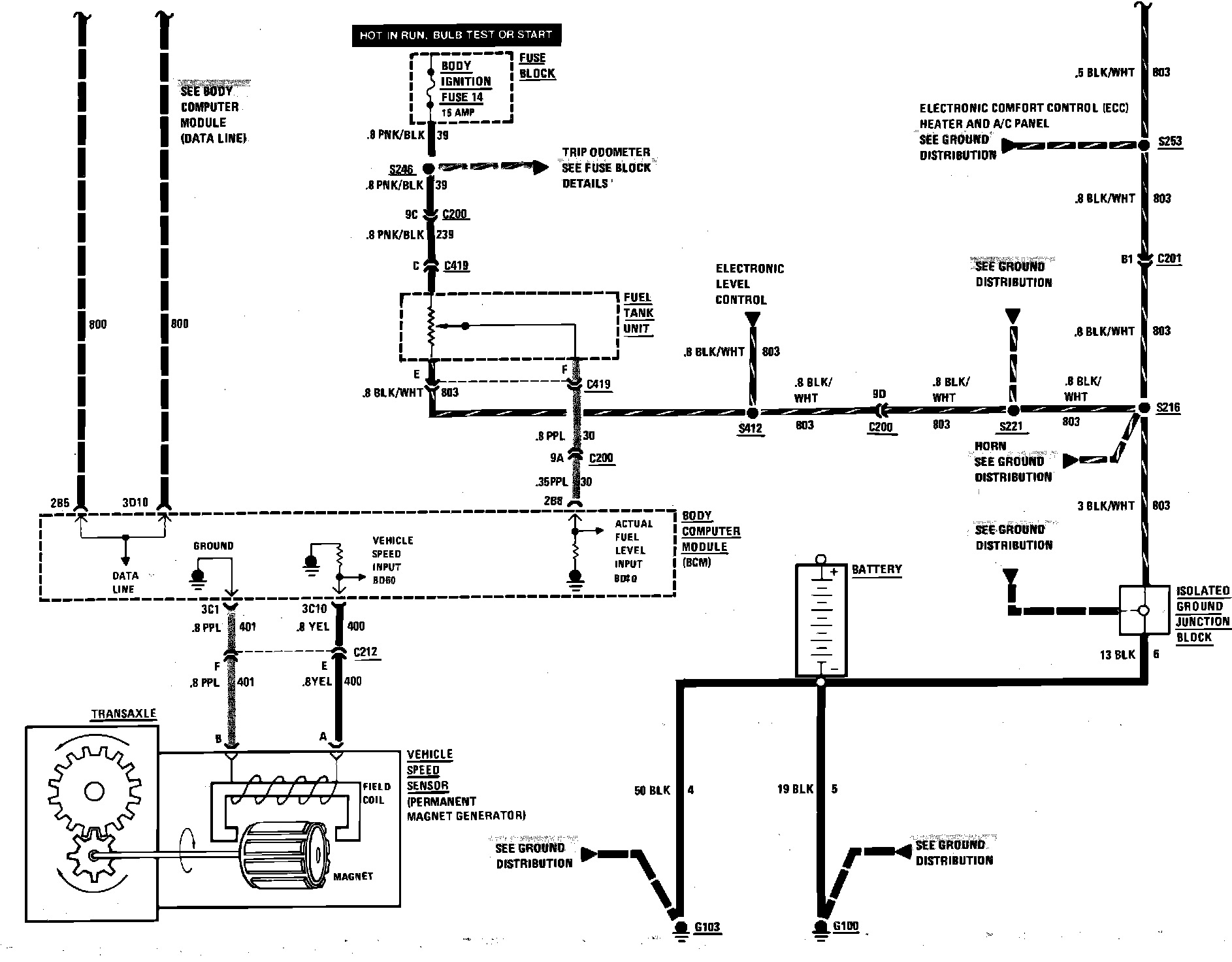

Instrument Panel Digital Cluster Wiring Circuit (Fuel Gauge, Part 2 Of 2):
