Backup Lamp

Back-Up Lights Wiring Circuit (Part 1 Of 2):

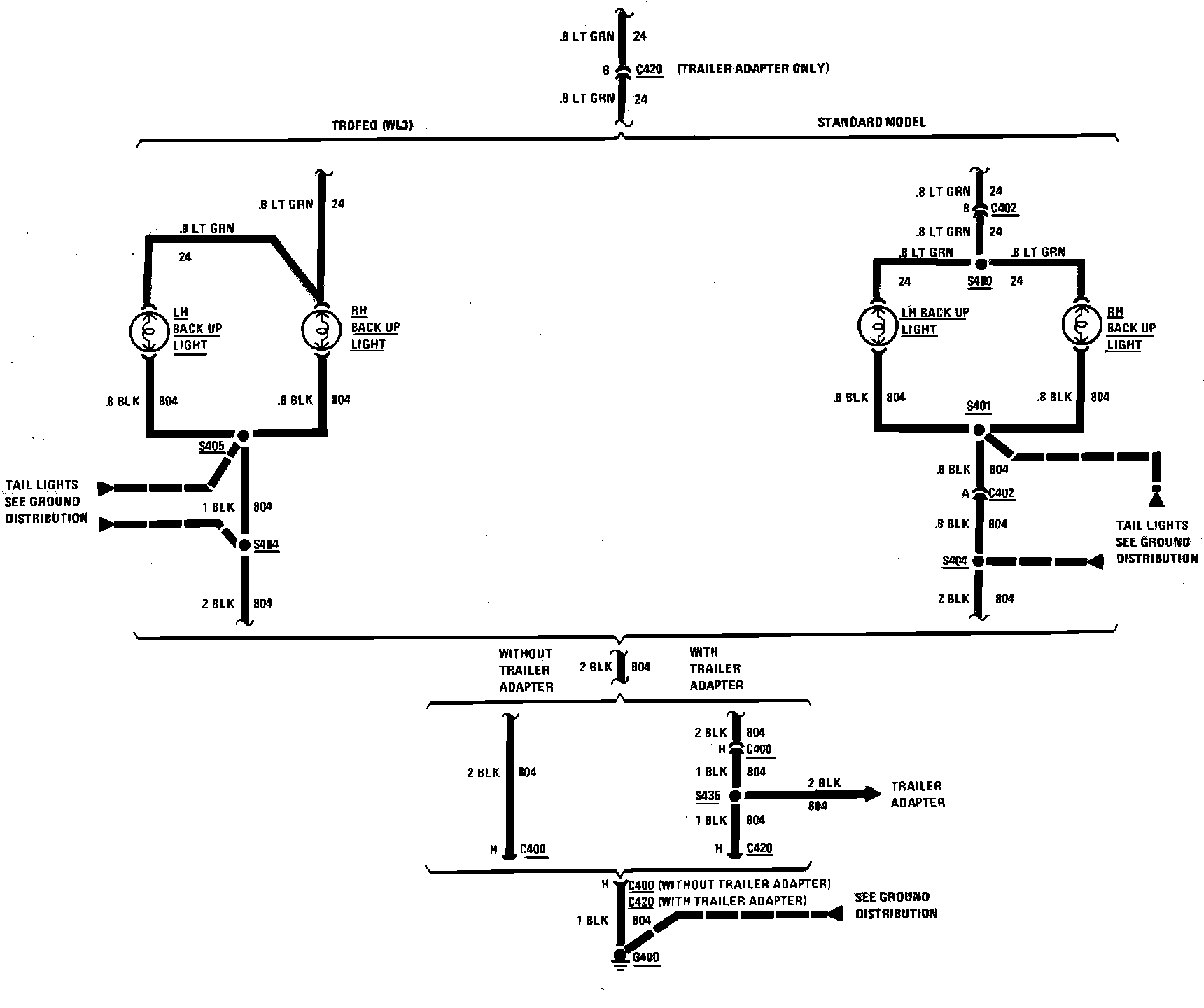

Back-Up Lights Wiring Circuit (Part 2 Of 2):
