Remote Cassette Tape Player

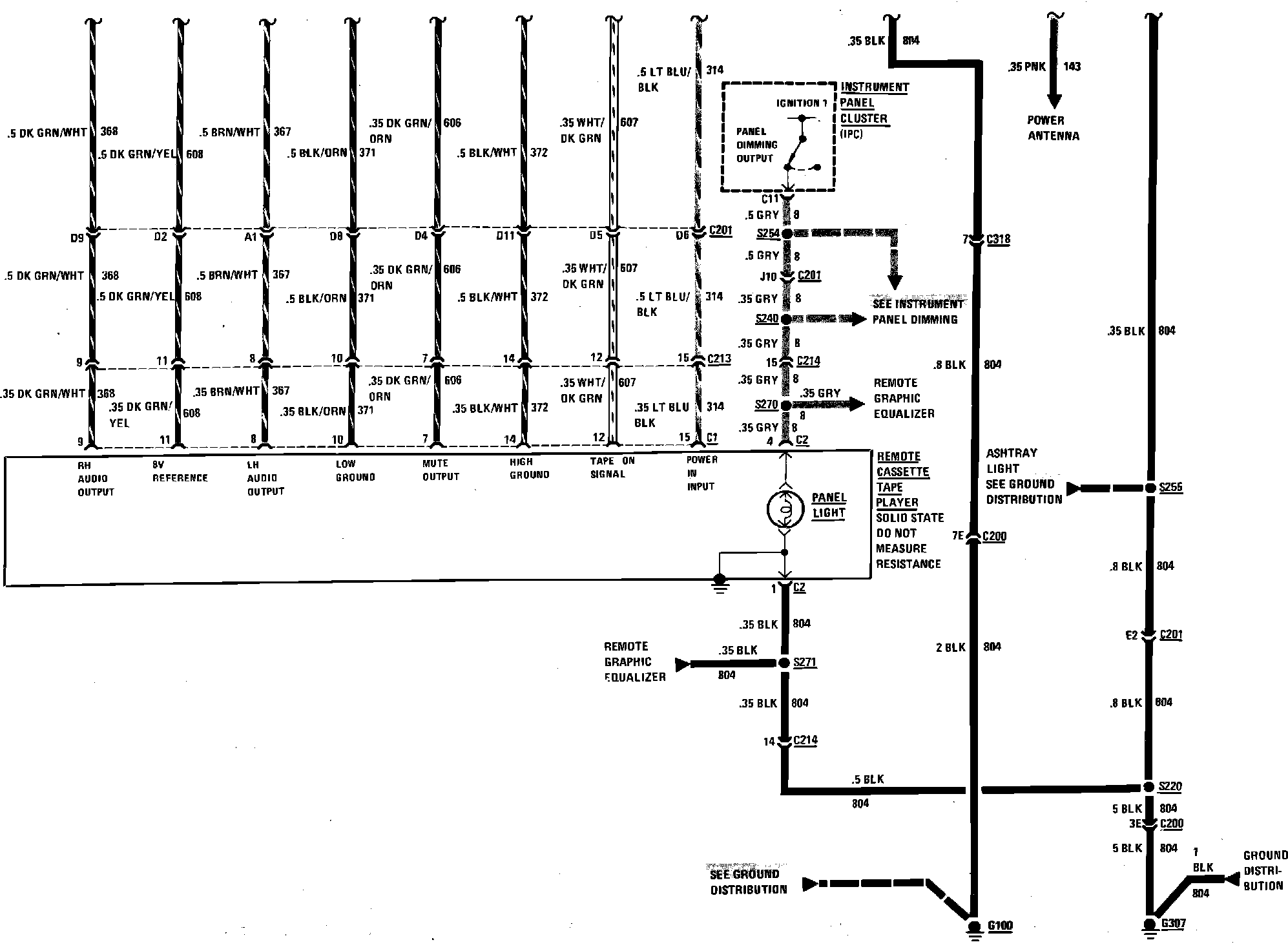

Radio Wiring Circuit (Part 1 Of 2). W/Remote Cassette Tape Player:

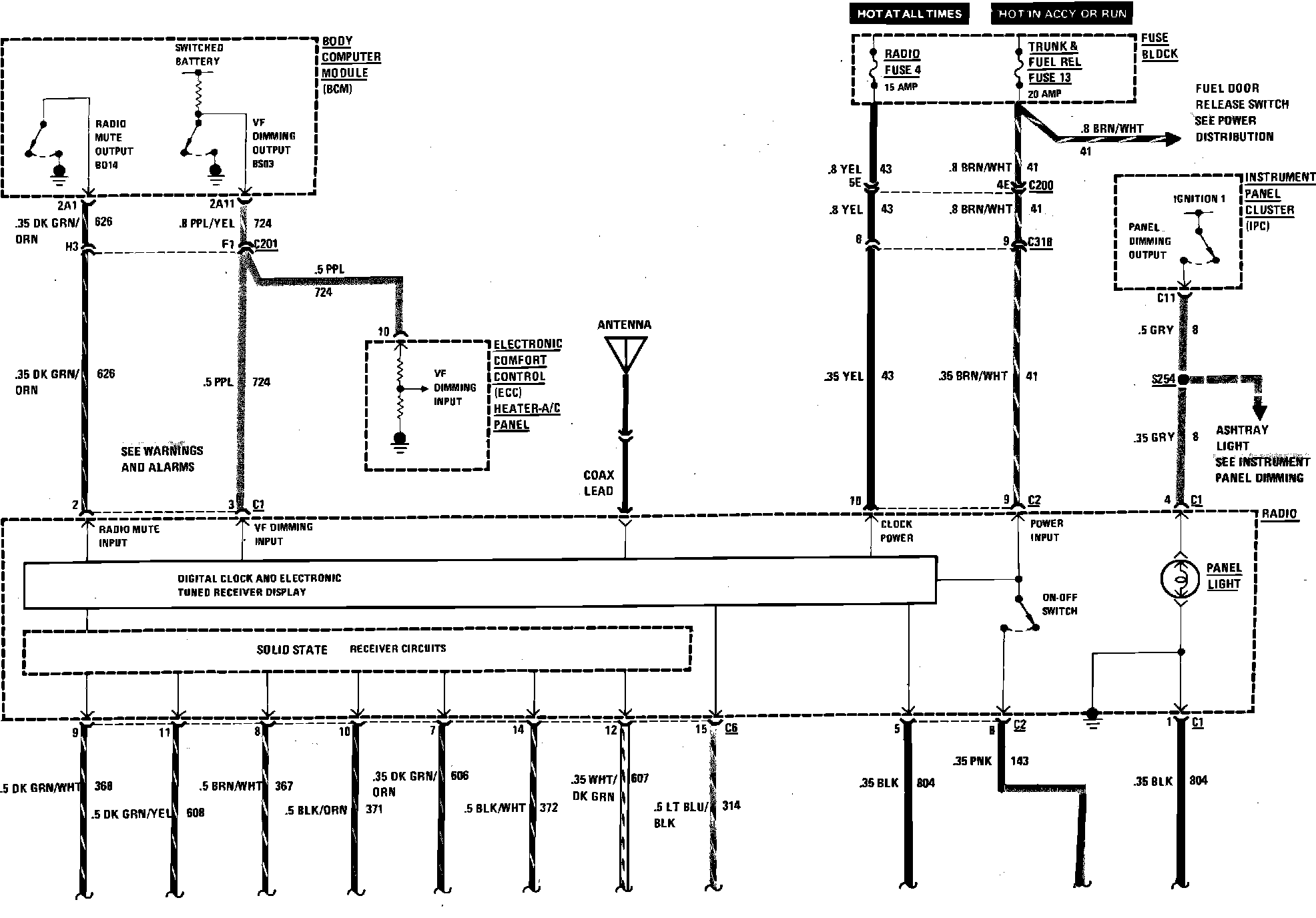

Radio Wiring Circuit (Part 2 Of 2). W/Remote Cassette Tape Player:
