Alarm & Warning System

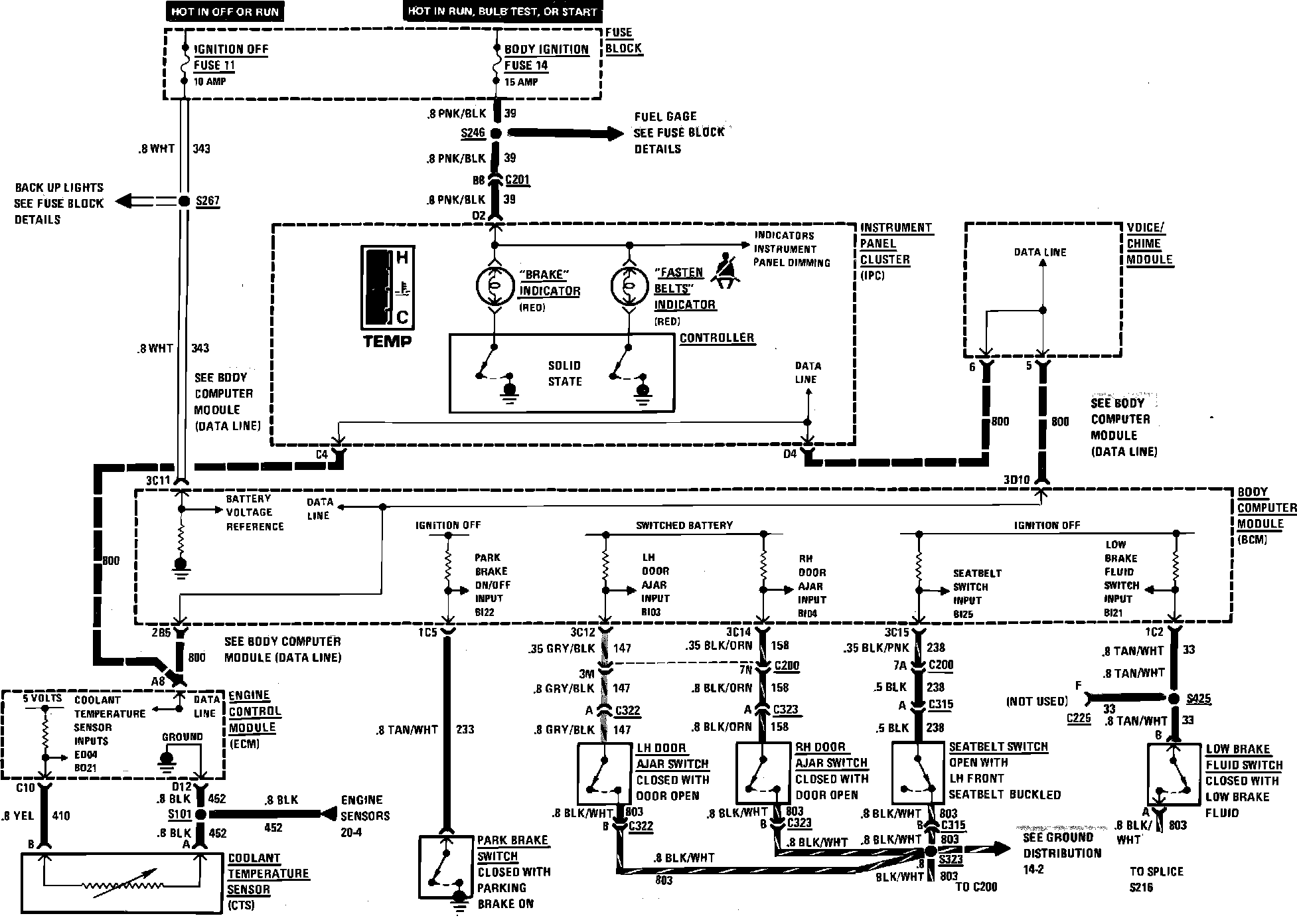

Alarms Wiring Circuit (Part 1 Of 6):

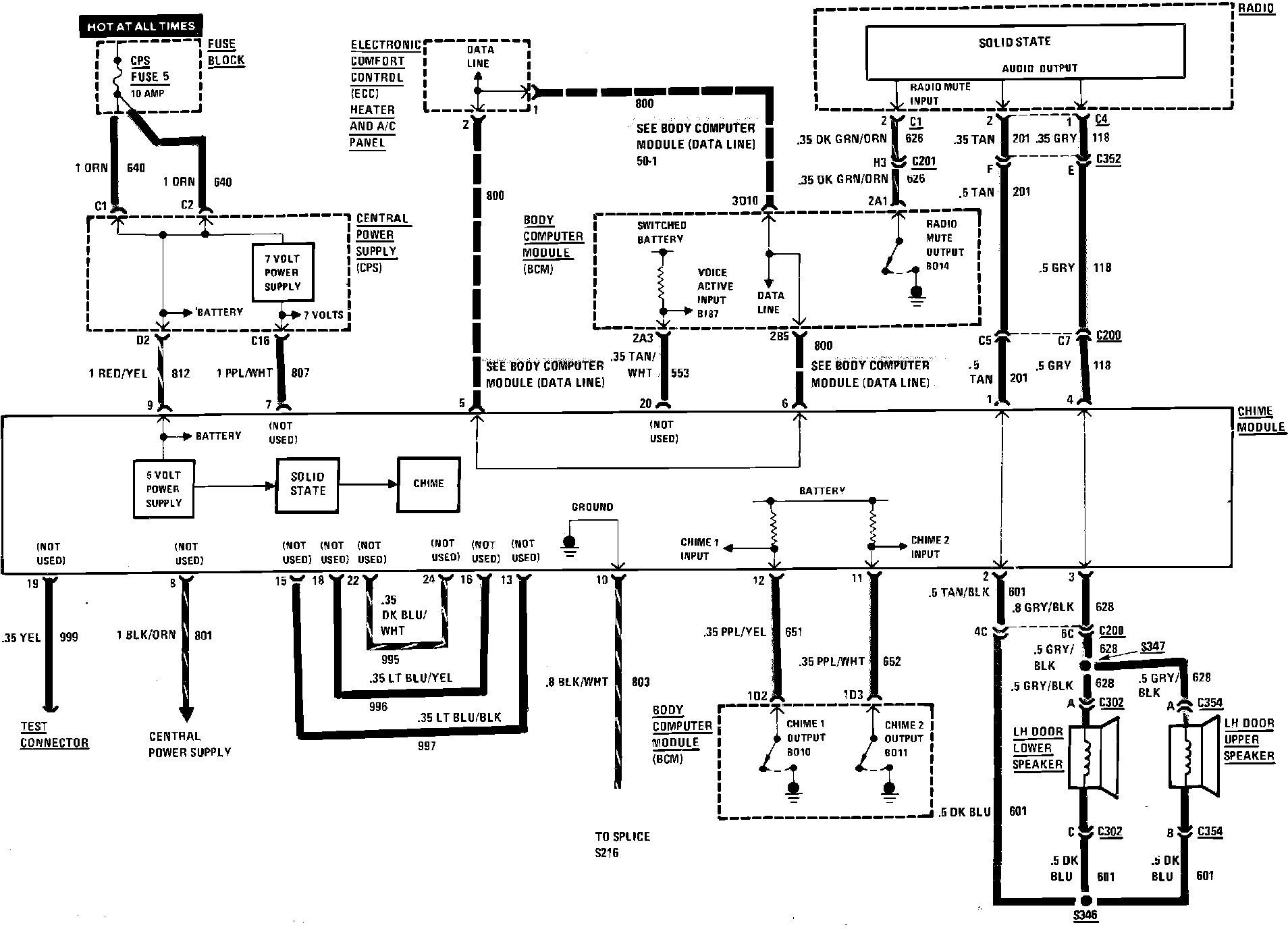

Alarms Wiring Circuit (Part 2 Of 6):

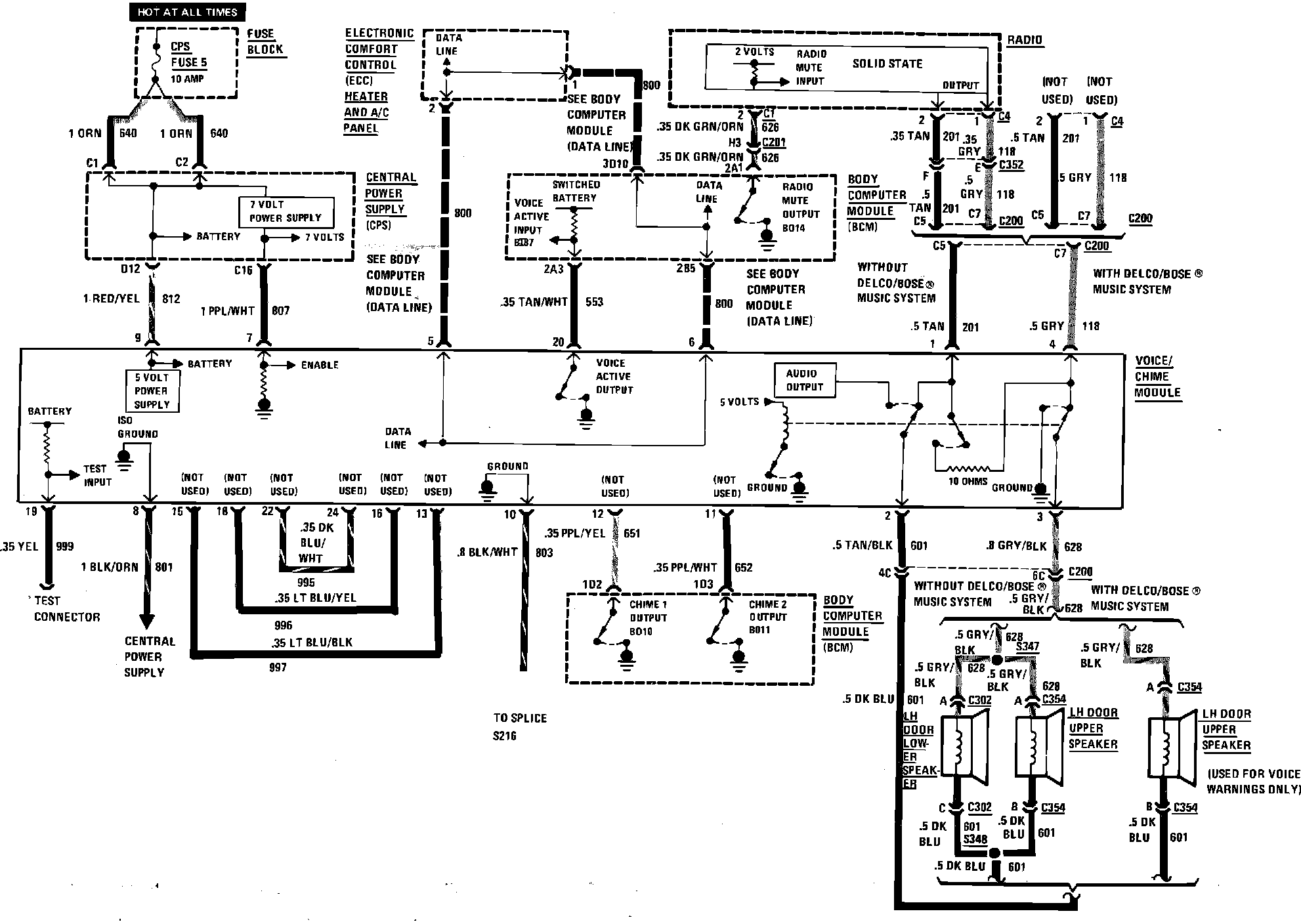

Alarms Wiring Circuit (Part 3 Of 6):

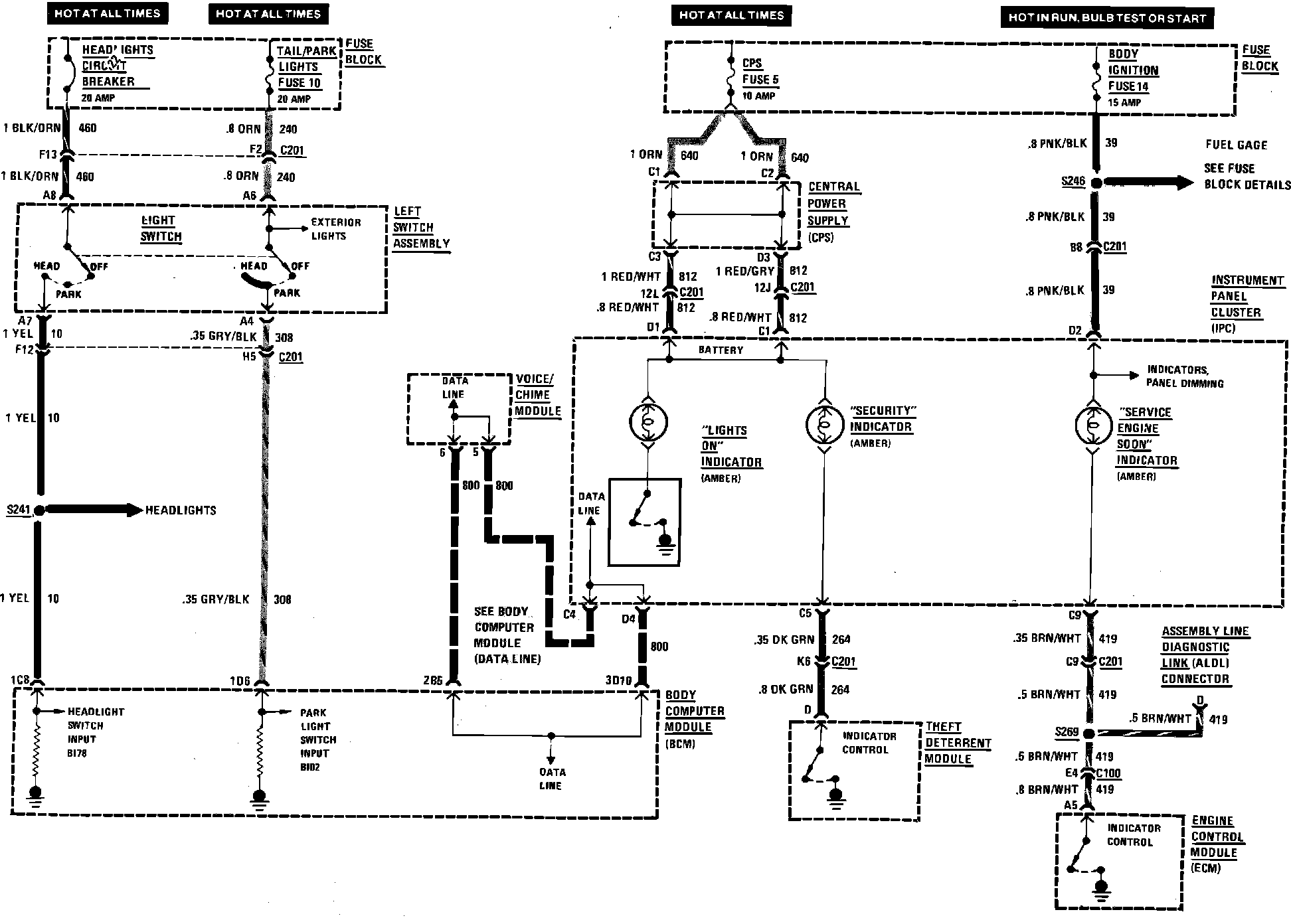

Alarms Wiring Circuit (Part 4 Of 6):

Alarms Wiring Circuit (Part 5 Of 6):

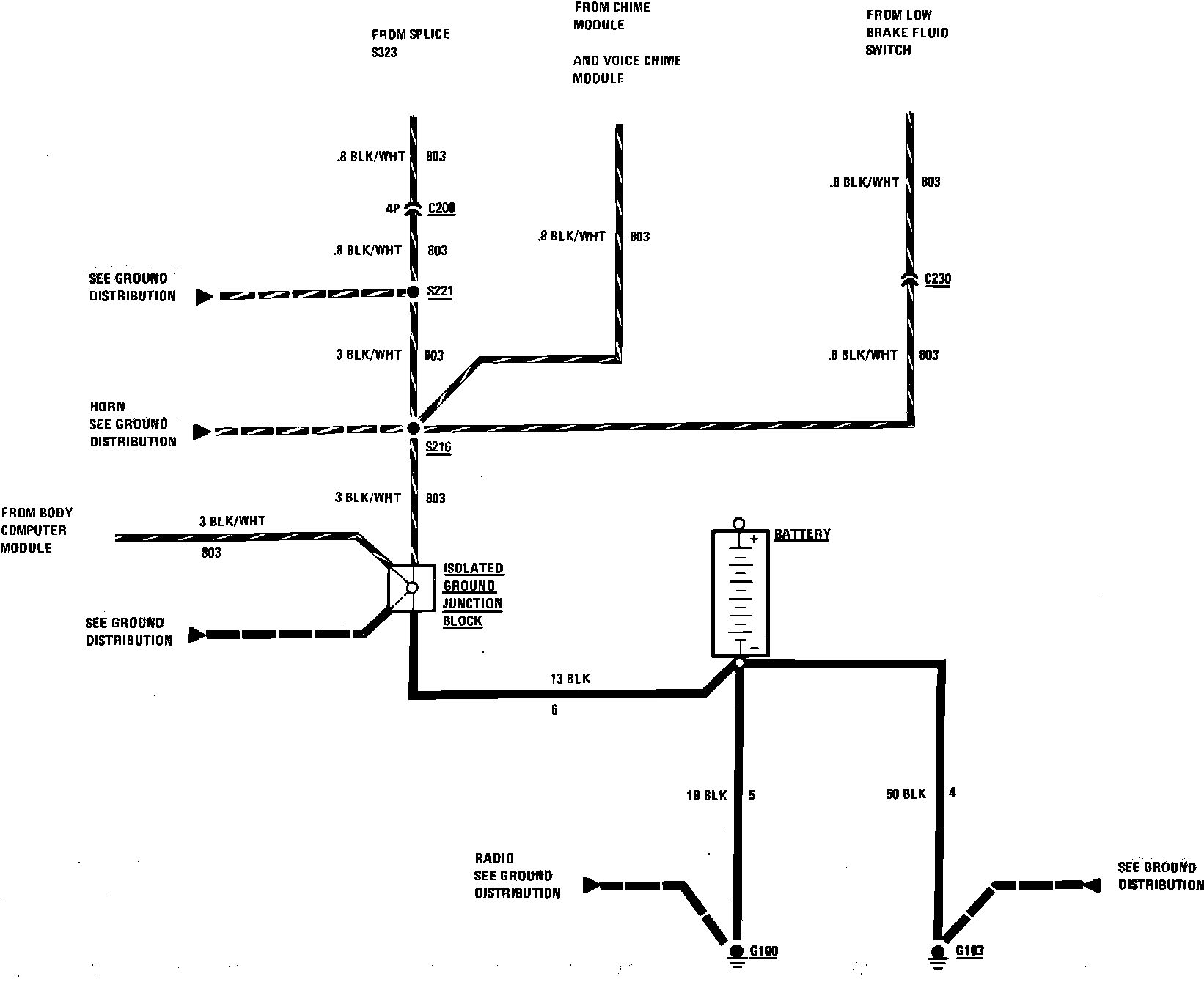

Alarms Wiring Circuit (Part 6 Of 6):
