Central Power Supply (CPS)

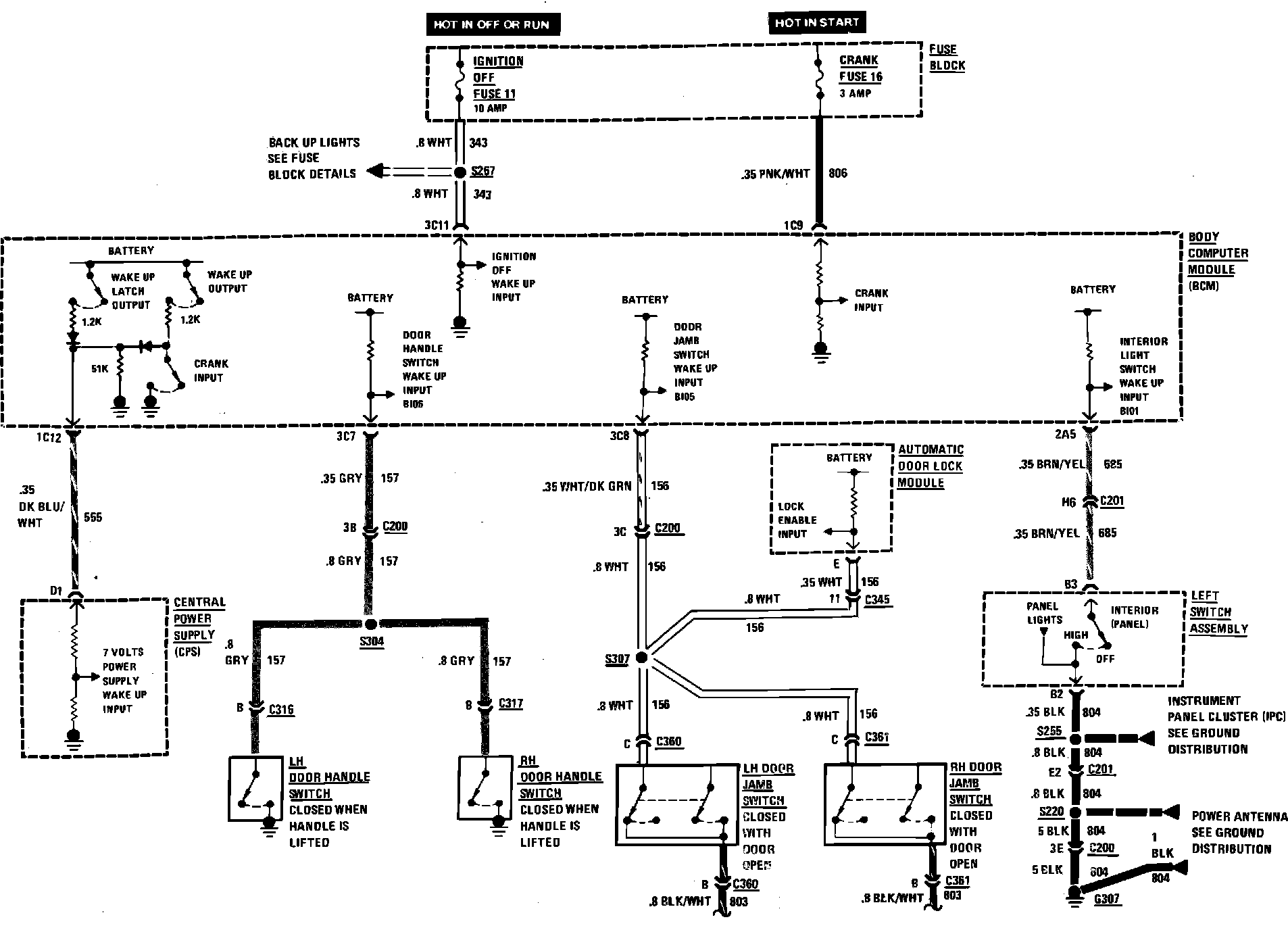

Central Power Supply Wiring Circuit (Part 1 Of 2) Less Wake Up:

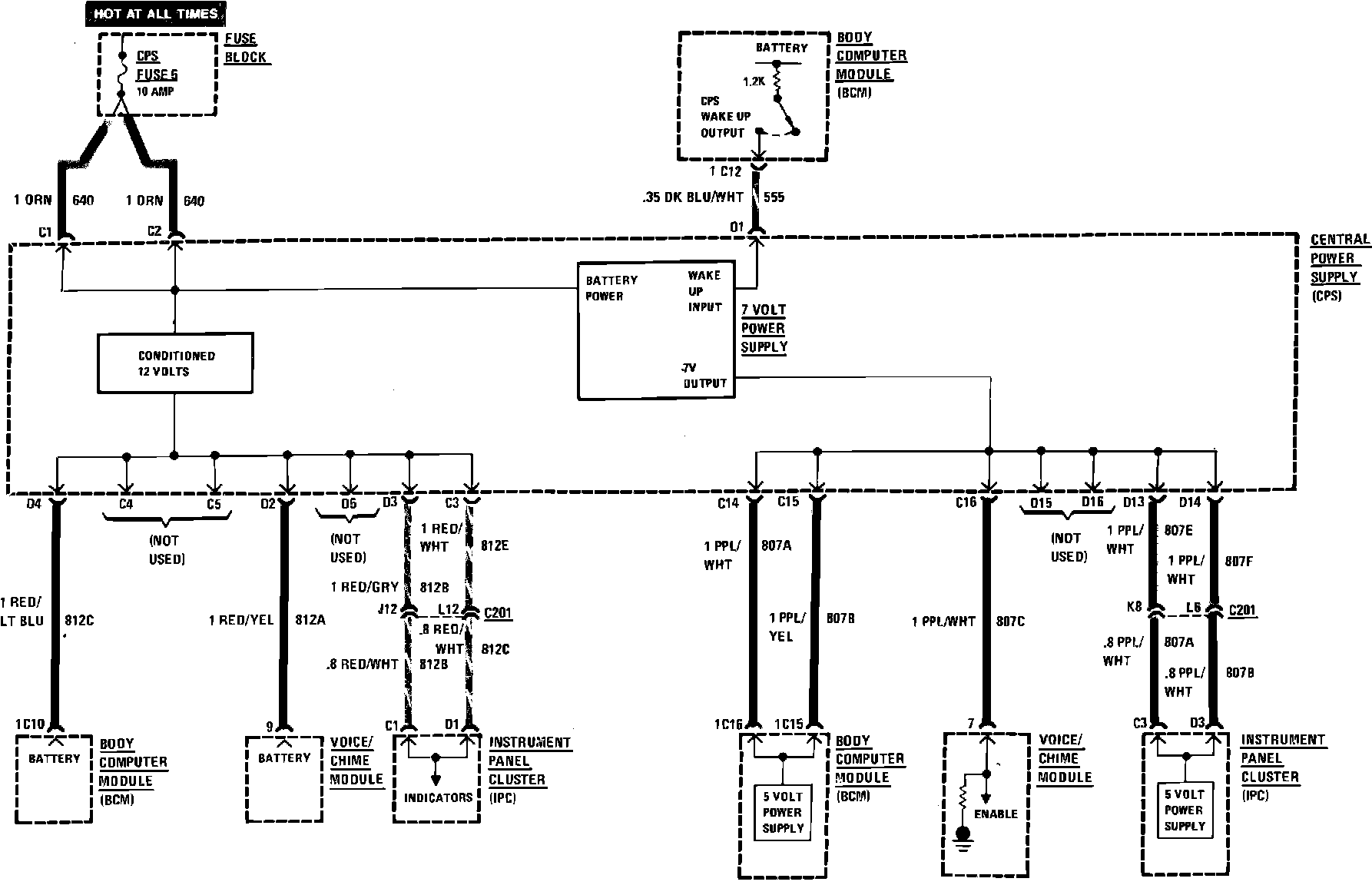

Central Power Supply Wiring Circuit (Part 2 Of 2) Less Wake Up:



Central Power Supply Wiring Circuit (Part 1 Of 2) W/Wake Up:



Central Power Supply Wiring Circuit (Part 2 Of 2) W/Wake Up:
