Torque Converter Clutch, Emissions & A/C Controls

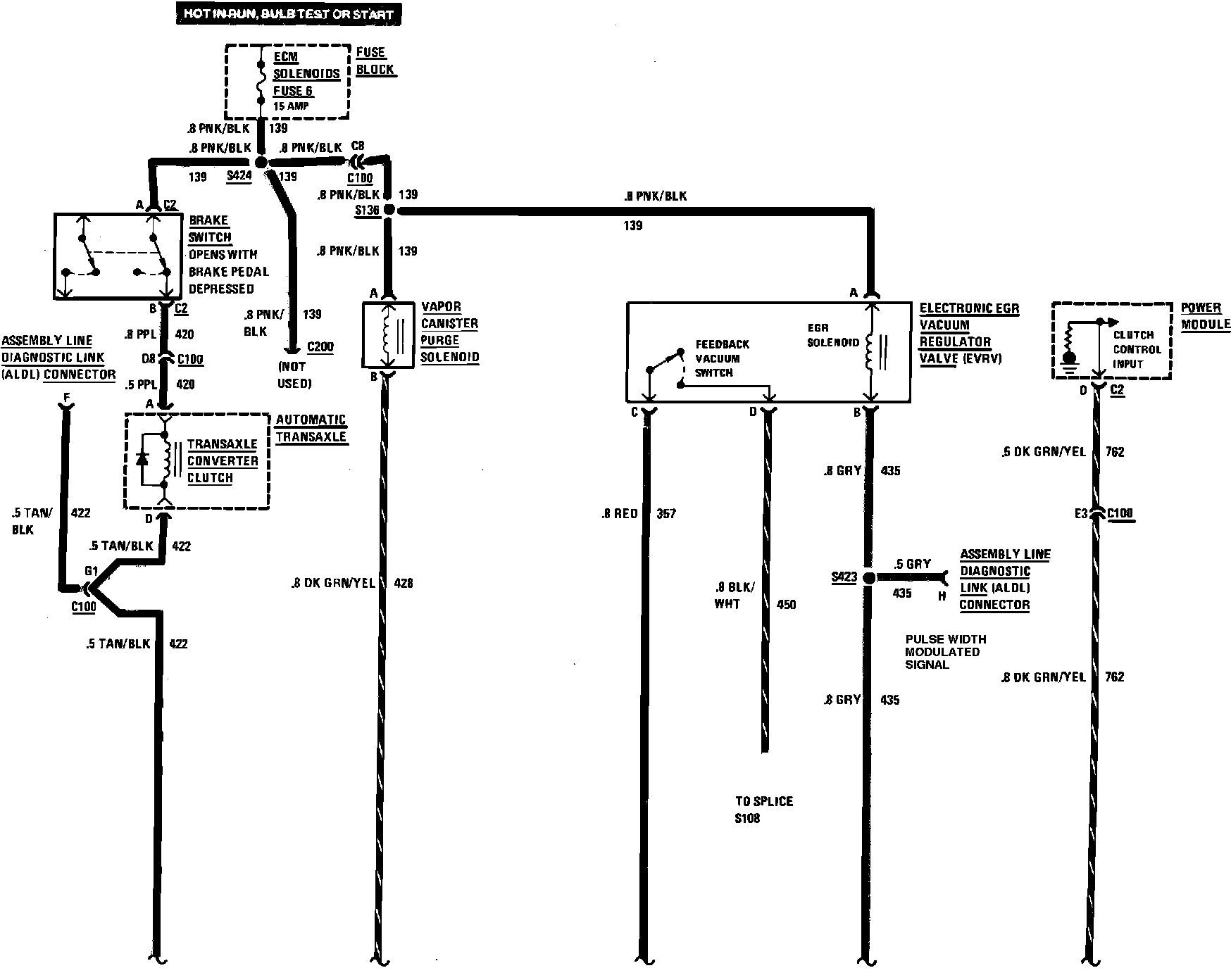

Fuel Injection Wiring Circuit (Transaxle Converter Clutch/Emission & A/C Controls, Part 1 Of 2):

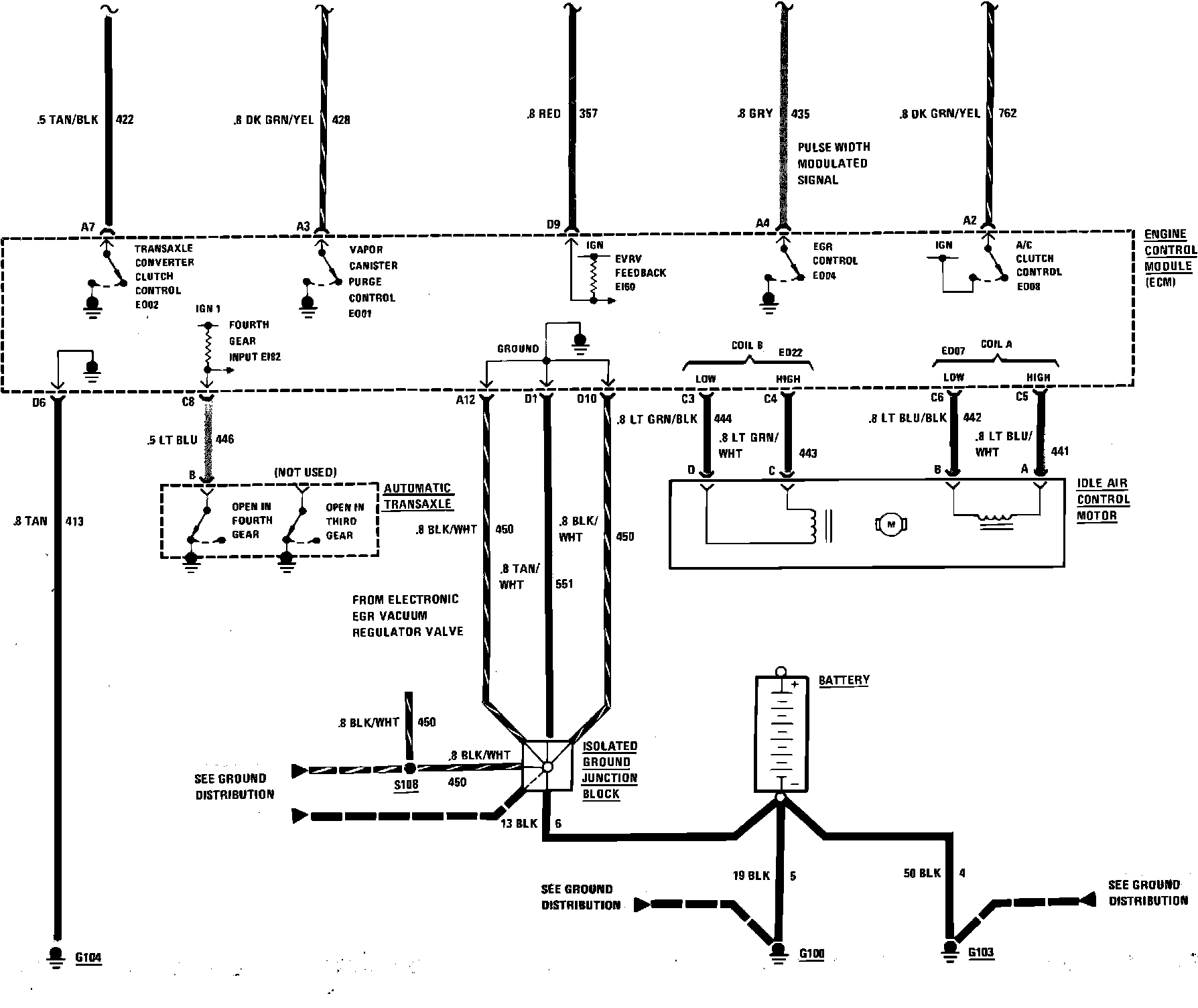

Fuel Injection Wiring Circuit (Transaxle Converter Clutch/Emission & A/C Controls, Part 2 Of 2):
