A/C Compressor Control Relay

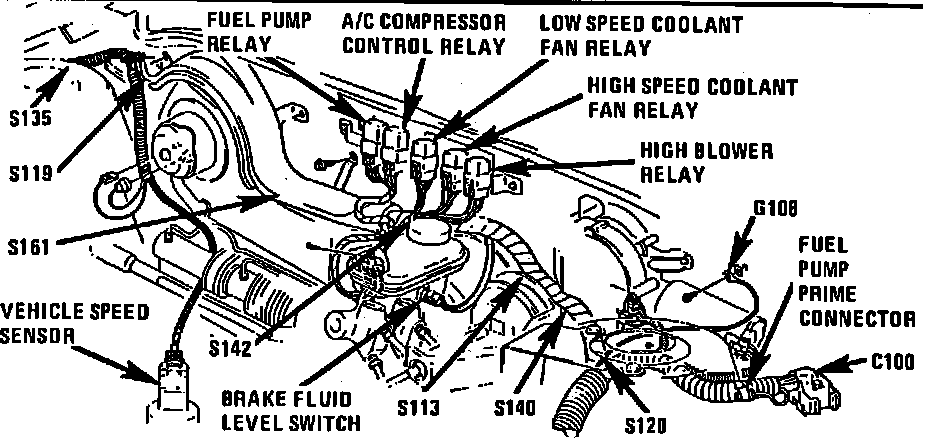

A/C Compressor Control Relay
Front Of Dash Panel.:
Rear Center Of Engine Compartment
Applicable to: 4-138/2.3L Engine
