Throttle Position Sensor (TPS)
Throttle Position Sensor (TPS)

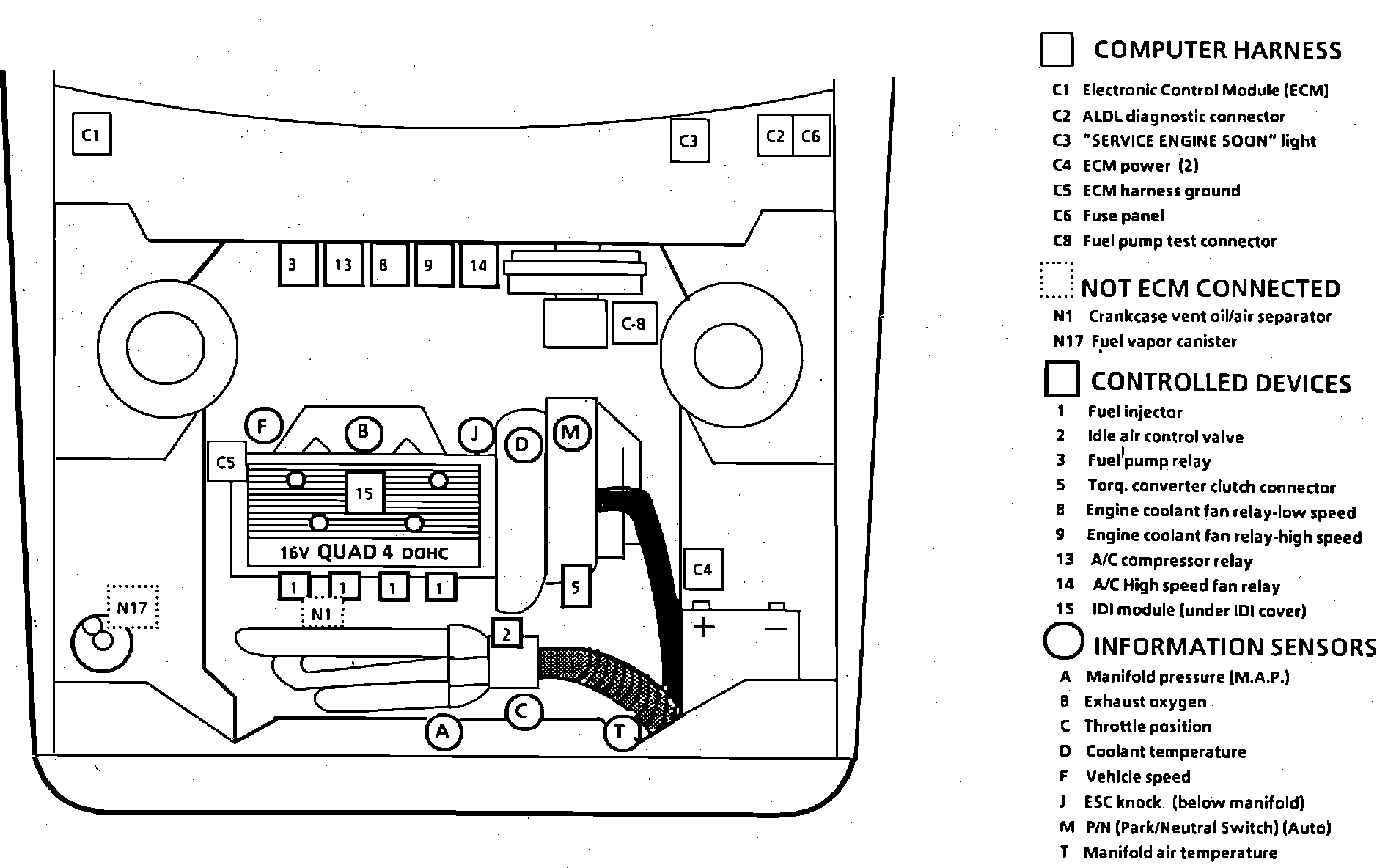

Engine Compartment Component Locations.:
Front Center Of Engine Compartment
Applicable to: 4-138/2.3L Engine
