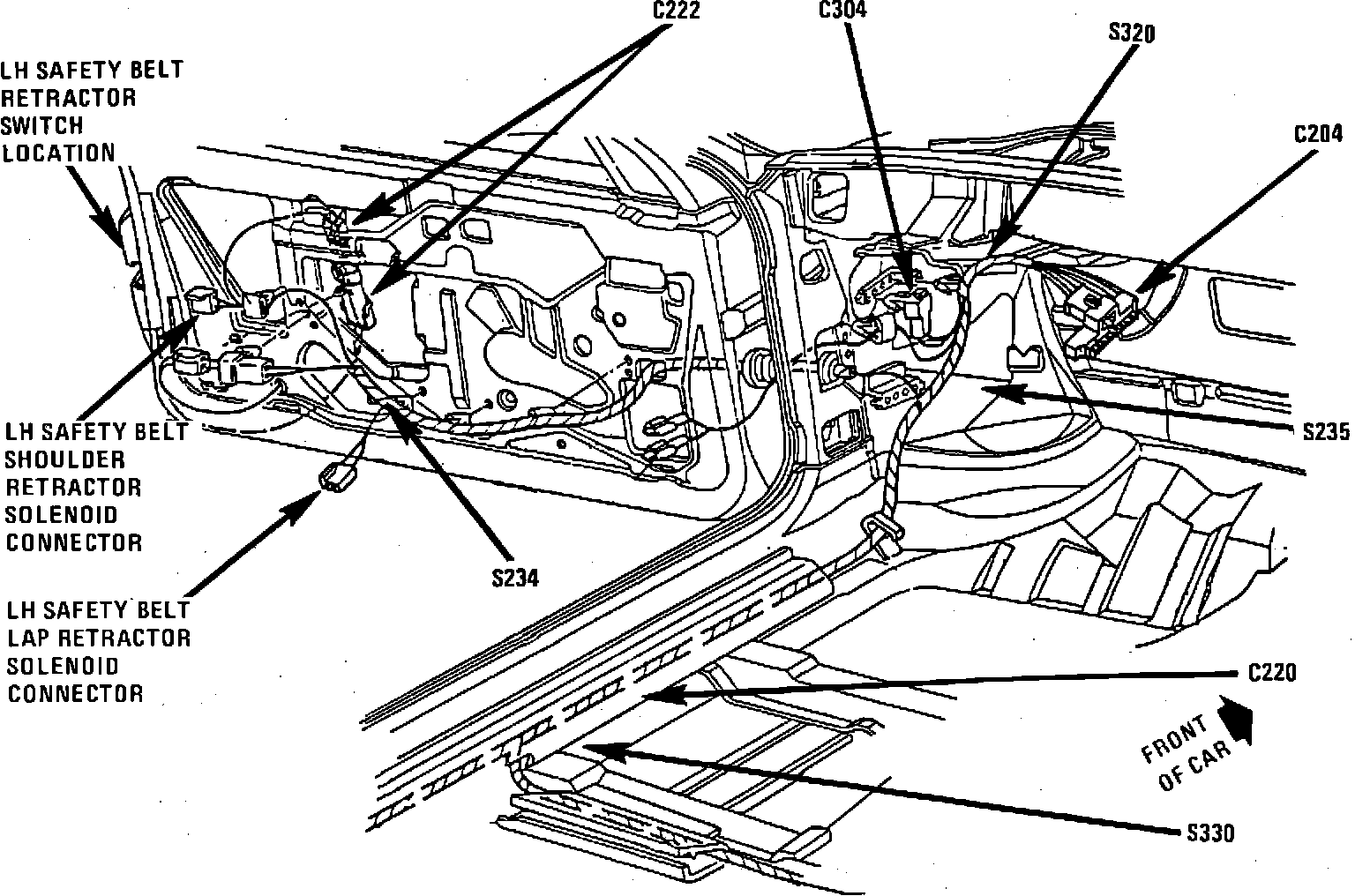

Seat Belt Retractor Switch

LH Side Of Passenger Compartment & Door.:




At LH Door Latch

Applicable to: Calais
