Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1988
>>
Calais FWD L4-138 2.3L DOHC QUAD 4
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>

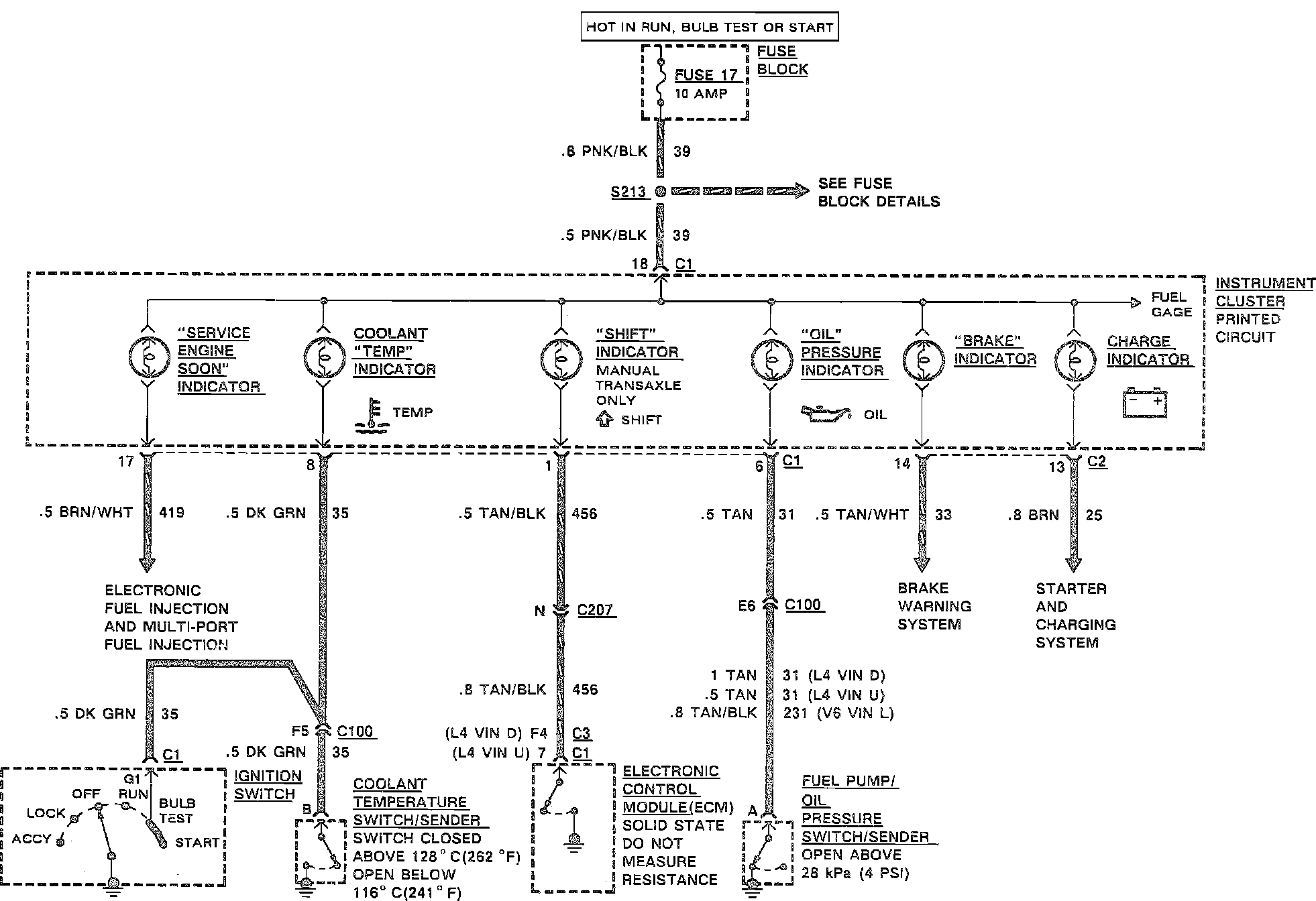

Standard Cluster - Indicators
Standard Cluster - Indicators
Standard Cluster - Indicators:
