Home >> Oldsmobile >> 1988 >> Cutlass Ciera Cruiser L4-151 2.5L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> I/P Fuse

I/P Fuse

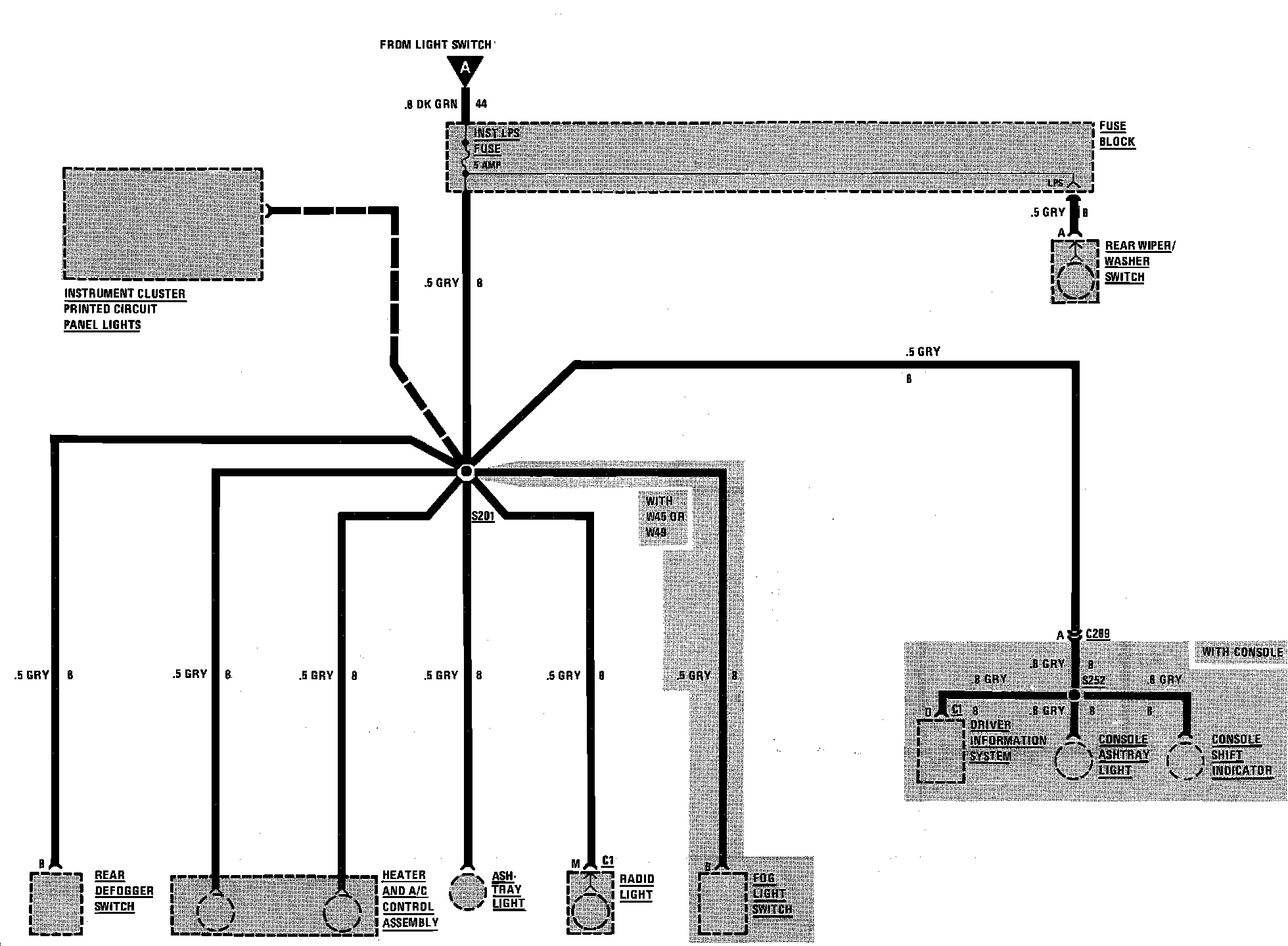

Light Switch Details (I/P Fuse):
