Tail Fuse
Tail Fuse

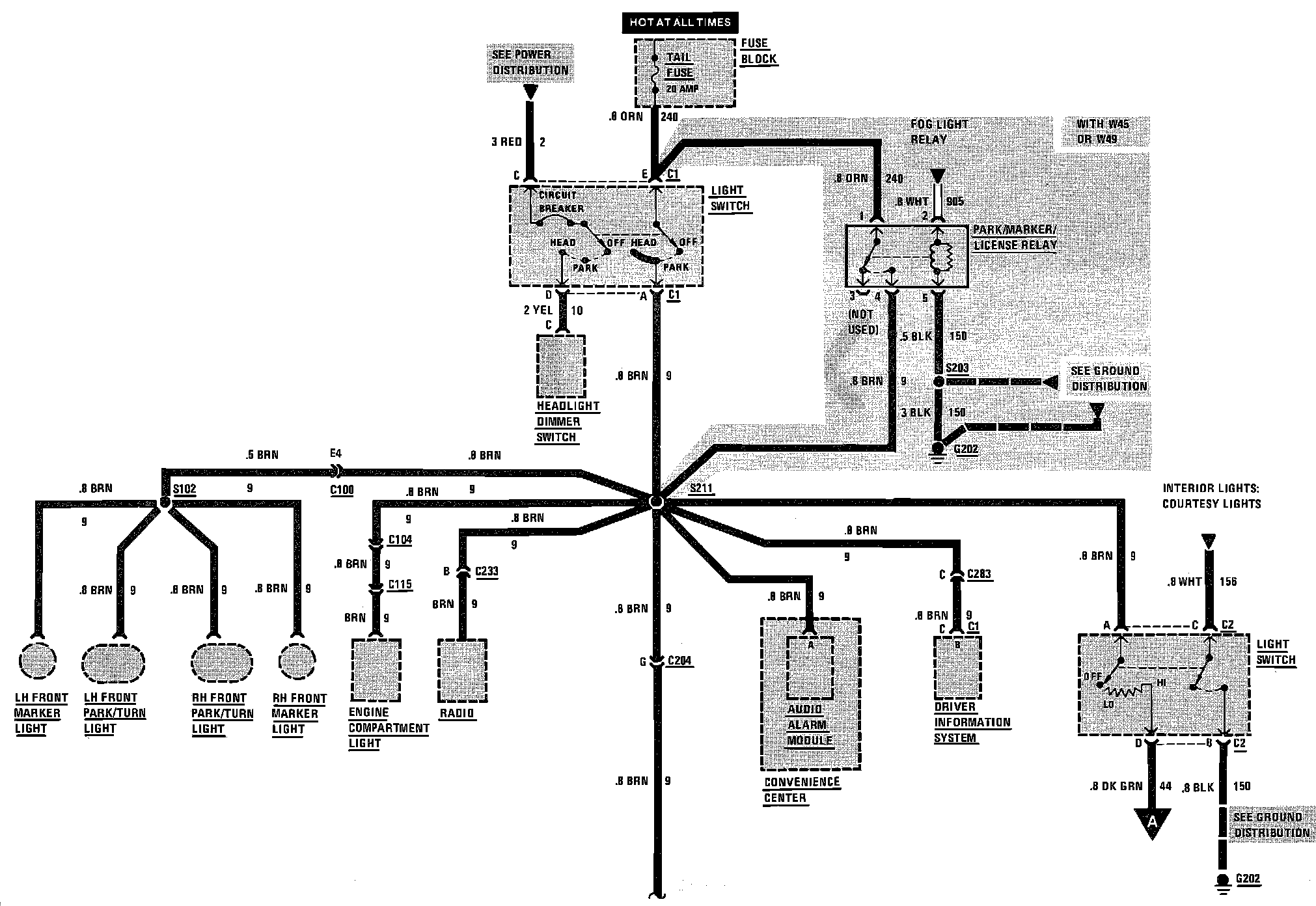

Light Switch Details (Tail Fuse). (Part 1 of 2):

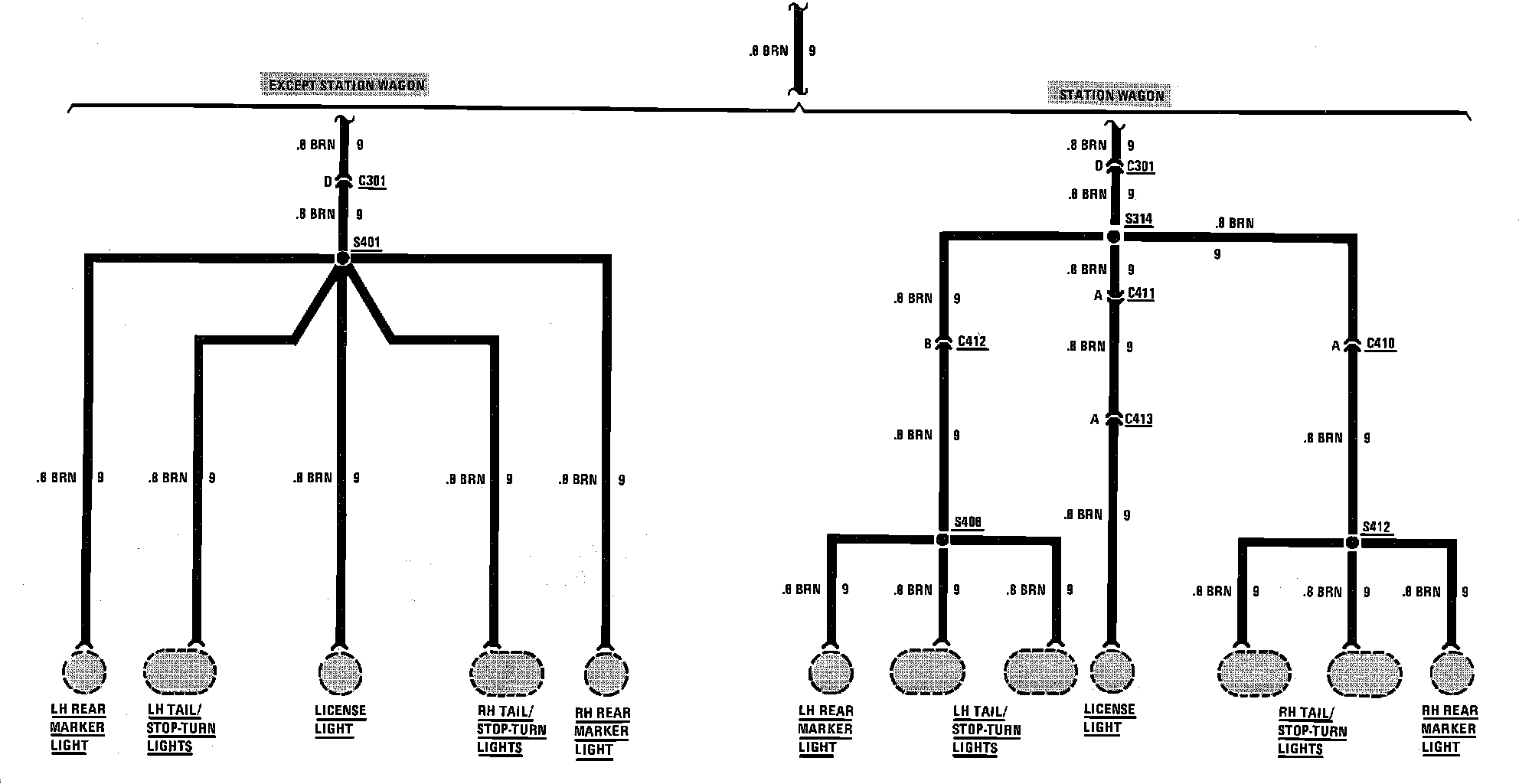

Light Switch Details (Tail Fuse). (Part 2 of 2):
