Fuse Block Details
Fuse Block Details

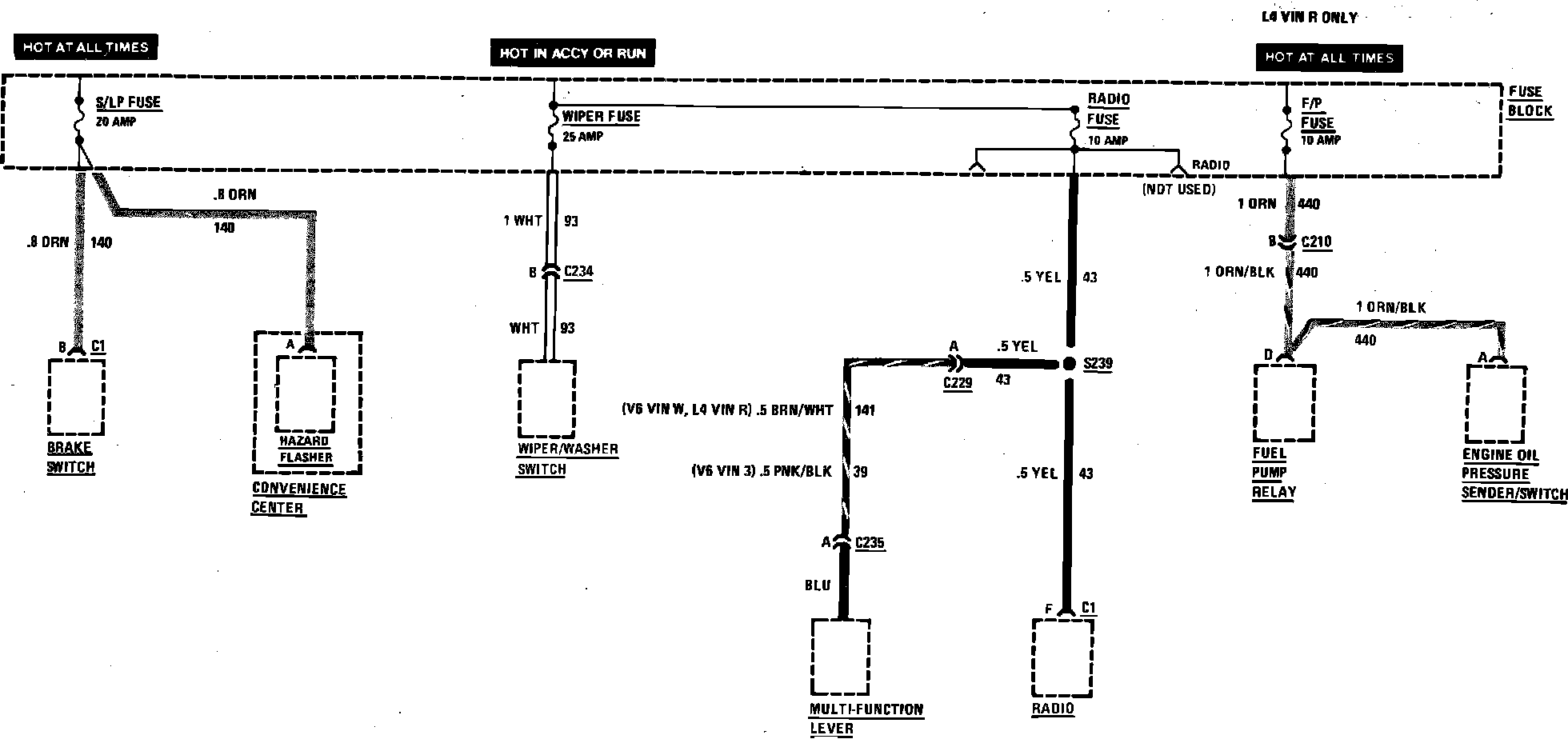

Fuse Block Details (Radio Fuse, Stop Lamp Fuse, Wiper Fuse & Fuel Pump):
