Mass Air Flow (MAF) Sensor
Mass Air Flow (MAF) Sensor

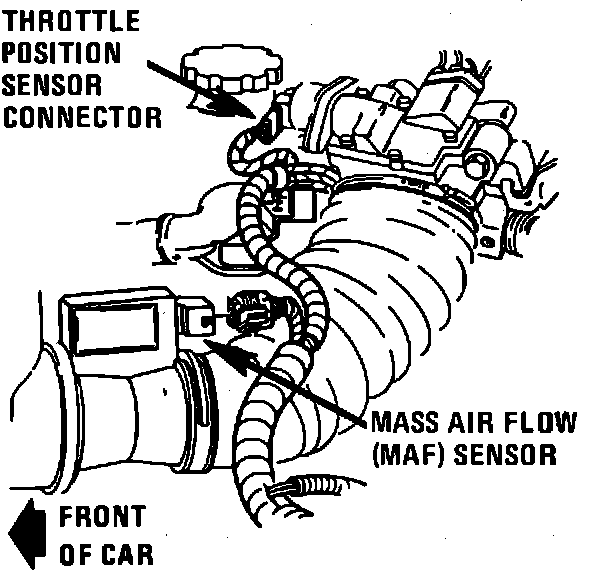

Top LH Side Of V6-173/2.8L:
LH Side Of Engine, In Air Intake Duct
Applicable to: 8L Engine
