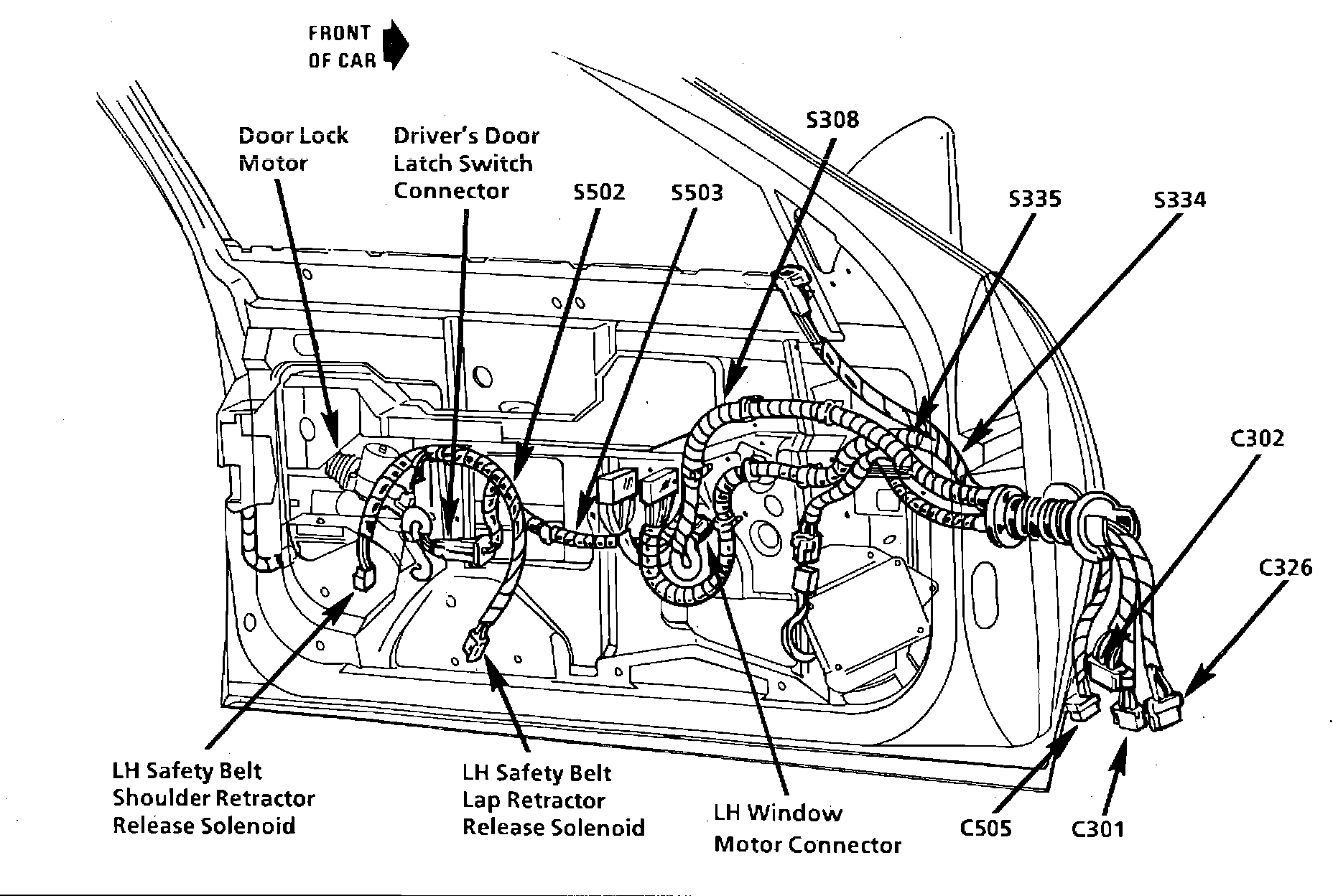

Door Latch Switch

LH Door (RH Similar).:




Inside Center Rear Of Door

Applicable to: Cutlass Supreme, Grand Prix & Regal
