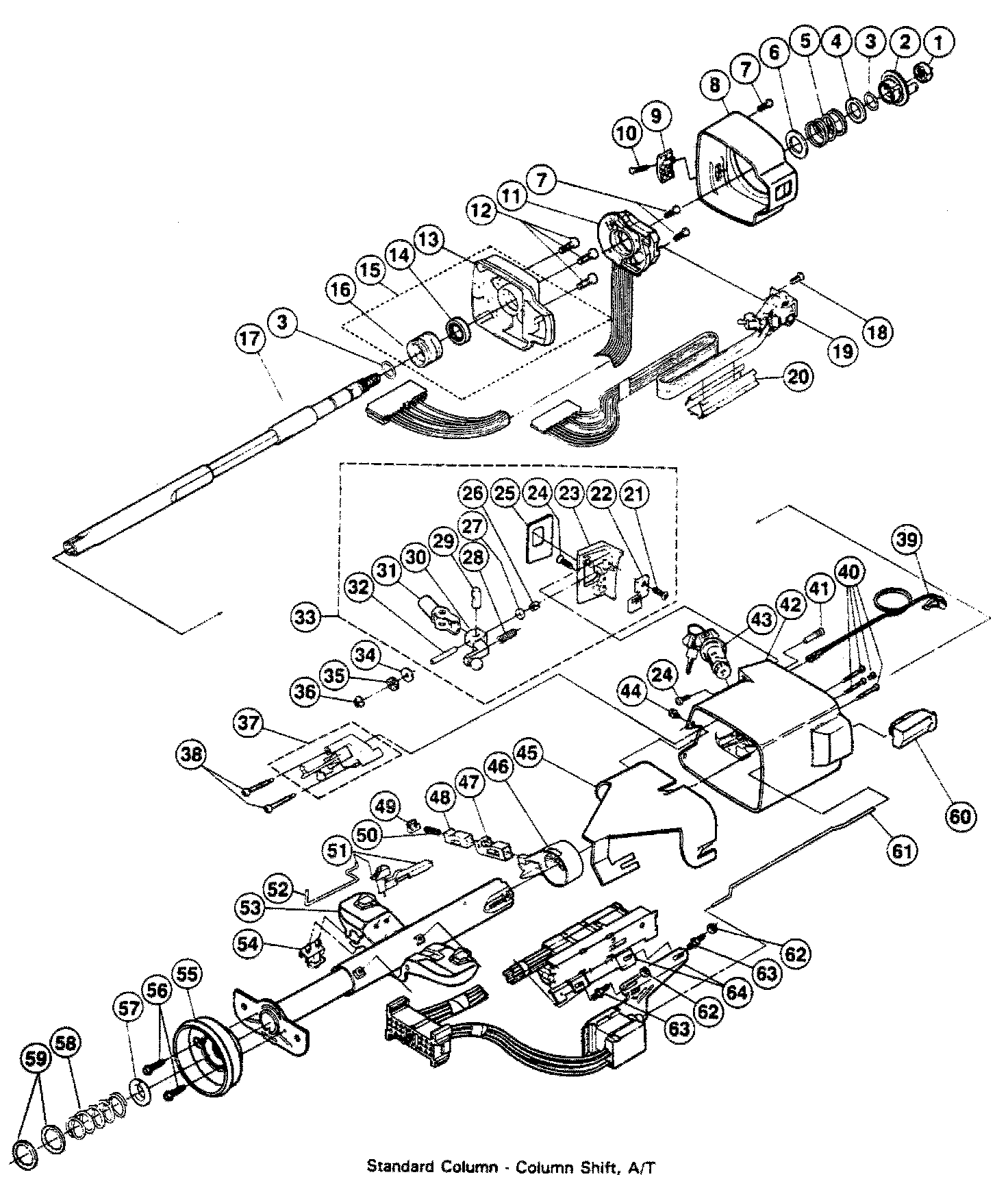

Standard Column - Column Shift - A/T

STANDARD COLUMN - COLUMN SHIFT - AUTOMATIC TRANSMISSION






1 - NUT, HEXAGON JAM (M14 x 1.5)

2 - CAM ASM, SPACER & CANCELLING

3 - RING, RETAINING

4 - WASHER, THRUST

5 - SPRING, UPPER BEARING

6 - WASHER, THRUST

7 - SCREW, PAN HD 8 - LOBED SOC TAP

8 - COVER, COLUMN HOUSING

9 - KNOB, HAZARD WARNING

10 - SCREW, OV HD C/REC (M3.5 x 1.27)

11 - SWITCH, ASM, TURN SIGNAL

12 - SCREW, PAN HD 6 - LOBED SOC TAP

13 - HOUSING, STEERING COLUMN

14 - BEARING ASM

15 - HOUSING ASM, STRG COLUMN

16 - SPACER STRG COLUMN HOUSING

17 - SHAFT ASM, STEERING

18 - SCR, OVL HD 8 - LOBED SOC TAP

19 - SWITCH ASM, PIVOT & PULSE

20 - PROTECTOR, WIRING

21 - SCREW, OVAL HD 6 - LOBED SOC TAP

22 - GATE, SHiFT LEVER

23 - CAP, COLUMN BOWL

24 - SCREW, OVAL HD 6 - LOBED SOC TAP

25 - SEAL, SHIFT LEVER

28 - BUSHING, CAP ACTUATOR PIN

27 - SPACER, SHIFT LEVER CLEVIS

28 - SPRING, SHIFT ~VER

29 - PIN, CABLE ARM ACTUATOR PIVOT

30 - ACTUATOR ASM, CABLE LEVER

31 - CLEVIS, SHIFT LEVER

32 - PIN, SHIFT LEVER CLEVIS PIVOT

33 - CAP ASM, SHIFT LEVER & BOWL

34 - RACE, BRG ASM THRUST

35 - BEARING ASM, NEEDLE THRUST

36 - BUSHING, BOWL ACTUATOR PIN

37 - ARM ASM, CABLE SHIFT

38 - SCREW, OVAL HD 6 - LOBED SOC TAP

39 - SWITCH ASM, BUZZER

40 - SCREW, PAN HEAD TAPPING

41 - SCREW, LOCK RETAINING

42 - BOWL, PAINTED

43 - LOCK CYL SET, STRG COLUMN

44 - SCREW, HEX WASHER HD TAPPING

45 - SHIELD, BOWL

46 - HOUSING, LOCK BOLT & SLEEVE

47 - TUBE, LOCK BOLT RETAINING

48 - BOLT, STRG SHAFT LOCK

49 - CAP, LOCK BOLT SPRING RET

50 - SPRING, LOCK BOLT

51 - RACK, SWITCH ACTUATOR

52 - ROD, IGNITION SWITCH

53 - JACKET ASM, STRG COLUMN

54 - ADJUSTER ASM, PRNDL

55 - BEARING ASM, ADAPTER &

56 - SCREW, HEX WASHER HD TAPPING

57 - SEAT, LOWER BEARING

58 - SPRiNG, LOWER BEARING

59 - RETAINER, LOWER SPRING

60 - CAP, DIMMER SWITCH ROD

61 - ROD, DIMMER SW ACTUATOR

62 - STUD DIMR & IGN SW MOUNTING

63 - NUT, HEXAGON (#10 - 24)

64 - SWITCH ASM, COLUMN LOCK & IGN
