Tilt Column - Floor Shift

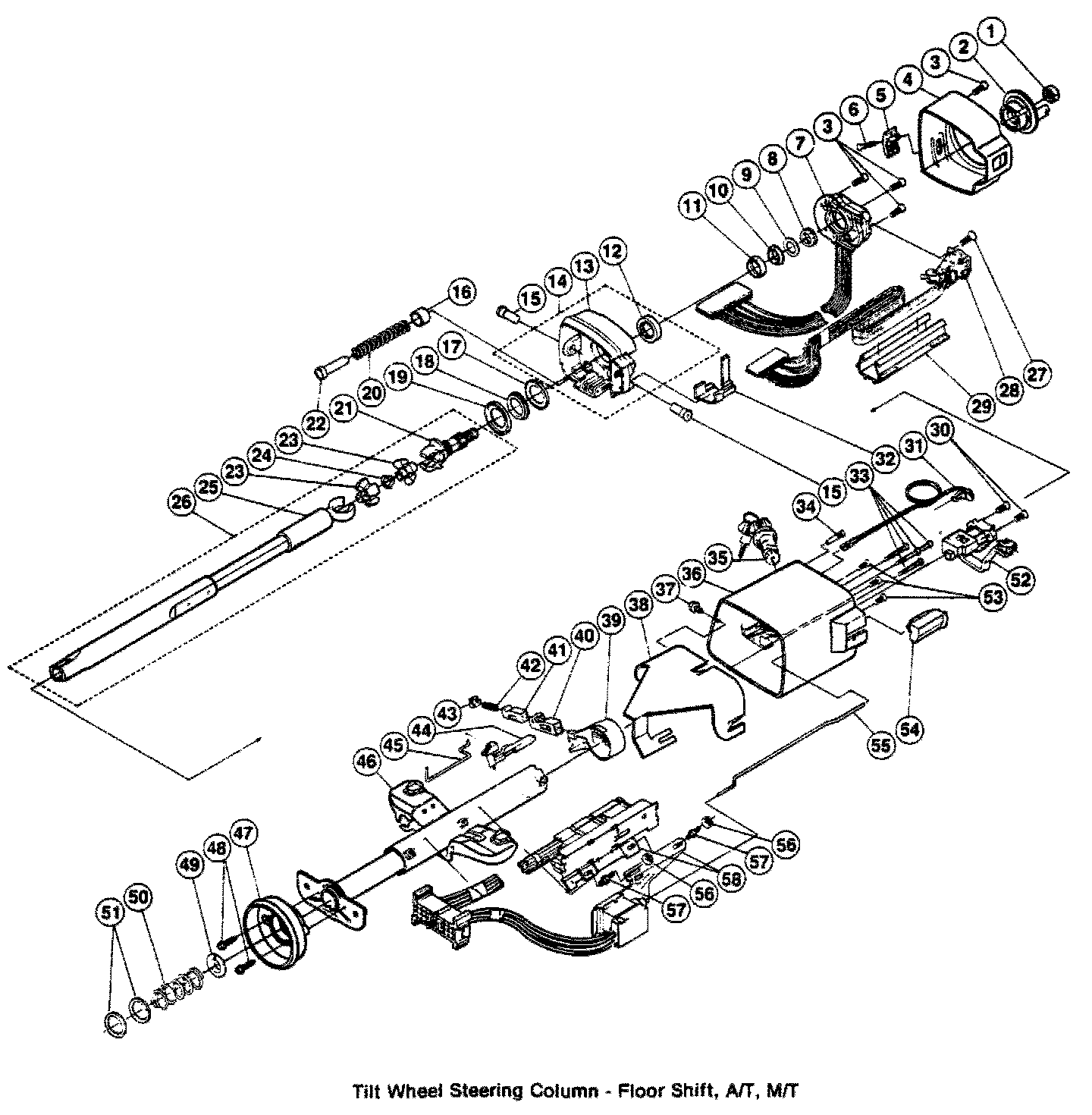

TILT COLUMN - FLOOR SHIFT - AUTOMATIC OR MANUAL TRANSMISSION






1 - NUT, HEXAGON JAM (M14 X 1.5)

2 - CAM ASM, SPACER & CANCELLING

3 - SCREW, PAN HD 6 - LOBED SOC TAP

4 - COVER, COLUMN HOUSING

5 - KNOB, HAZARD WARNING

6 - SCREW, DV HD CIREC (M3.5 X 1.27)

7 - SWITCH ASM, TURN SIGNAL

8 - NUT, UPPER SHAFT IBRG LOCK

9 - WASHER, FLAT

10 - SEAT, INNER RACE

11 - RACE, INNER

12 - BEARING ASM

13 - HOUSING, STRG COLUMN

14 - HOUSING ASM, STRG COLUMN

15 - PIN, PIVOT

16 - RETAINER, SPRING

17 - WASHER, THRUST

18 - BEARING ASM, NEEDLE THRUST

19 - RACE, THRUST BEARING ASM

20 - SPRING, WHEEL TILT

21 - SHAFT, UPPER STEERING

22 - GUIDE, TILT SPRING

23 - SPHERE, CENTERING

24 - SPRING, JOINT PRELOAD

25 - SHAFT ASM, LOWER STRG

26 - SHAFT ASM, STEERING

27 - SCR, OVL HD 6 - LOBED SOC TAP

28 - SWITCH ASM, PIVOT & PULSE

29 - PROTECTOR. WIRING

30 - SCR, OVL HD 6 - LOBED SOC TAP

31 - SWITCH ASM, BUZZER

32 - CAP, HSG SHOE PIN RETAlNER

33 - SCREW. PAN HEAD TAPPING

34 - SCREW, LOCK RETAINING

35 - LOCK CYL SET, STRG COLUMN

36 - BOWL, STRG COLUMN

37 - SCREW, HEX WASHER HD TAPPING

38 - SHIELD, BOWL

39 - HOUSING, LOCK BOLT & SLEEVE

40 - TUBE, LOCK BOLT RETAINER

41 - BOLT, STRG SHAFT LOCK

42 - SPRING, LOCK BOLT

43 - CAP, LOCK BOLT SPRING RET

44 - RACK, SWITCH ACTUATOR

45 - ROD, IGNITION SWITCH

46 - JACKET ASM, STRO COLUMN

47 - BEARING ASM, ADAPTER &

48 - SCREW, HEX WASHER HD TAPPING

49 - SEAT, LOWER BEARING

50 - SPRING, LOWIER BEARING

51 - RETAINER, LOWER SPRING

52 - BRACKET ASM, TILT LEVER &

53 - BUMPER, COLUMN TlLT

54 - CAP, DlMMER SWITCH ROD

55 - ROD, DIMMER SW ACTUATOR

56 - NUT, HEXAGON (#10 - 24)

57 - STUD, DIMR & IGN SW MOUNTING

58 - SWITCH ASM, IGNITION
