Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1988
>>
Cutlass Supreme FWD V6-173 2.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transaxle
Manual Transaxle

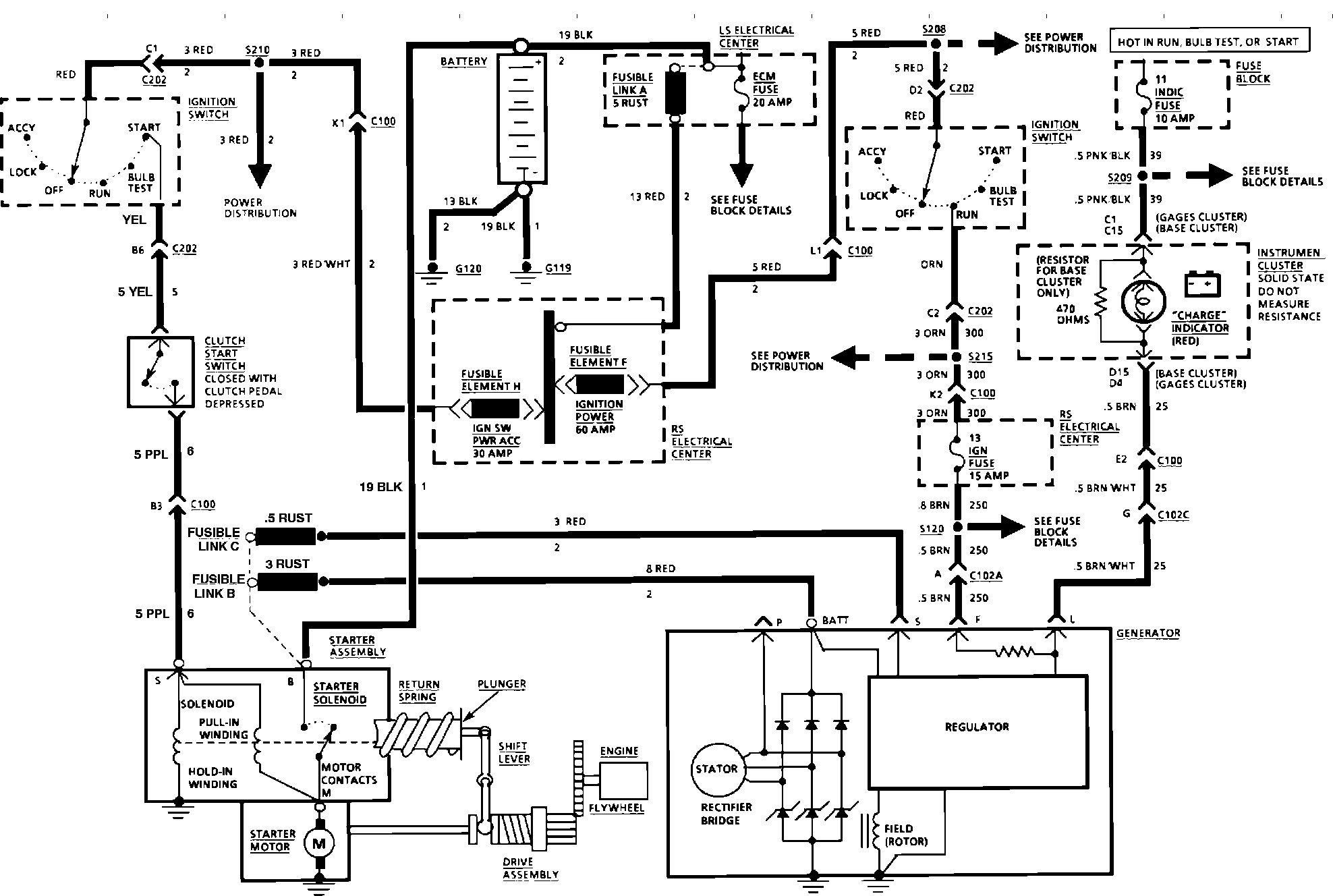

Charging & Starting System Wiring Circuit (Man Trans):
