Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1988
>>
Delta 88 V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antenna
>>

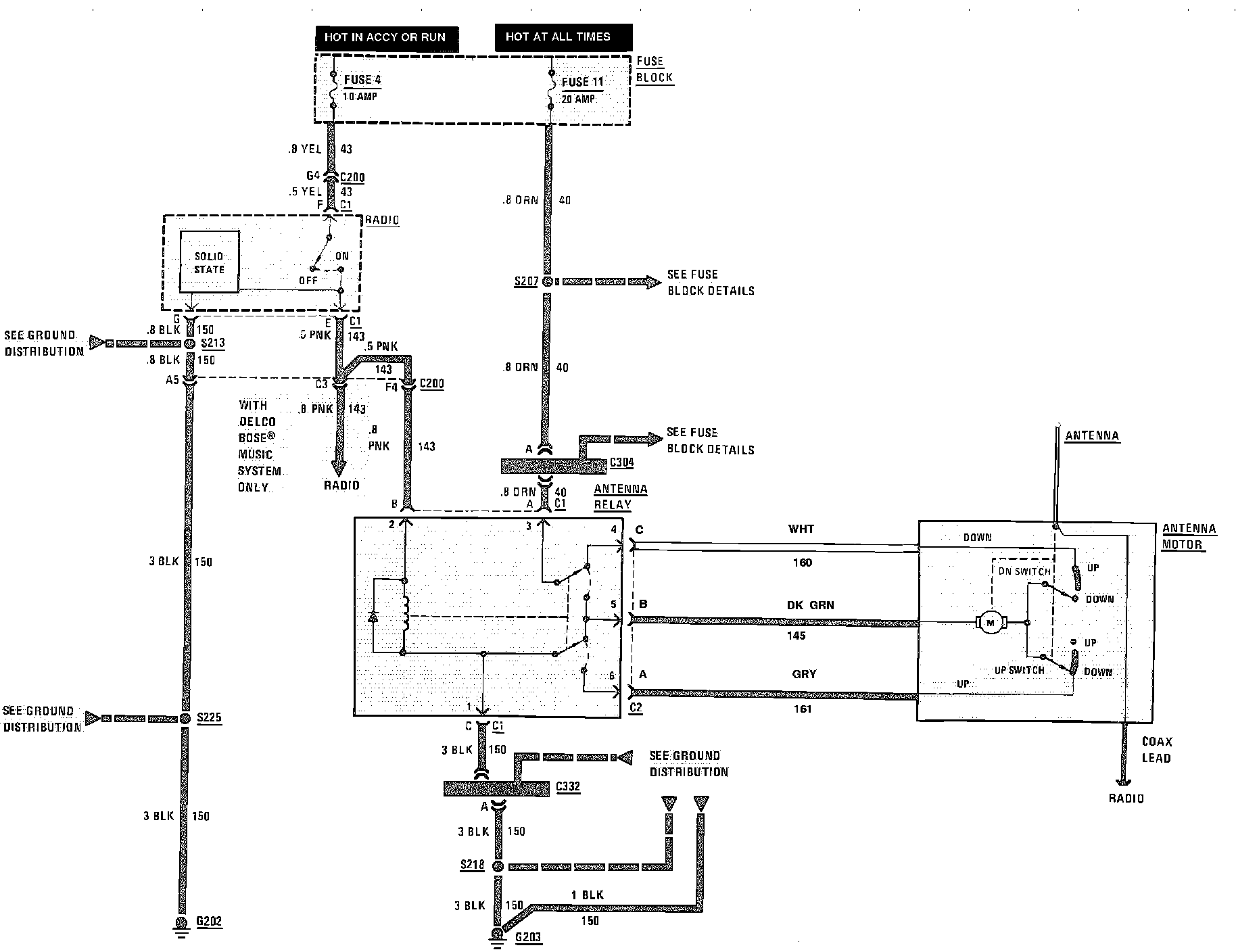

Power Antenna Wiring Circuit (Touring Sedan)
Power Antenna Wiring Circuit (Touring Sedan)
Power Antenna Wiring Circuit (Touring Sedan):
