Front Cigar Lighter & Vanity Mirror

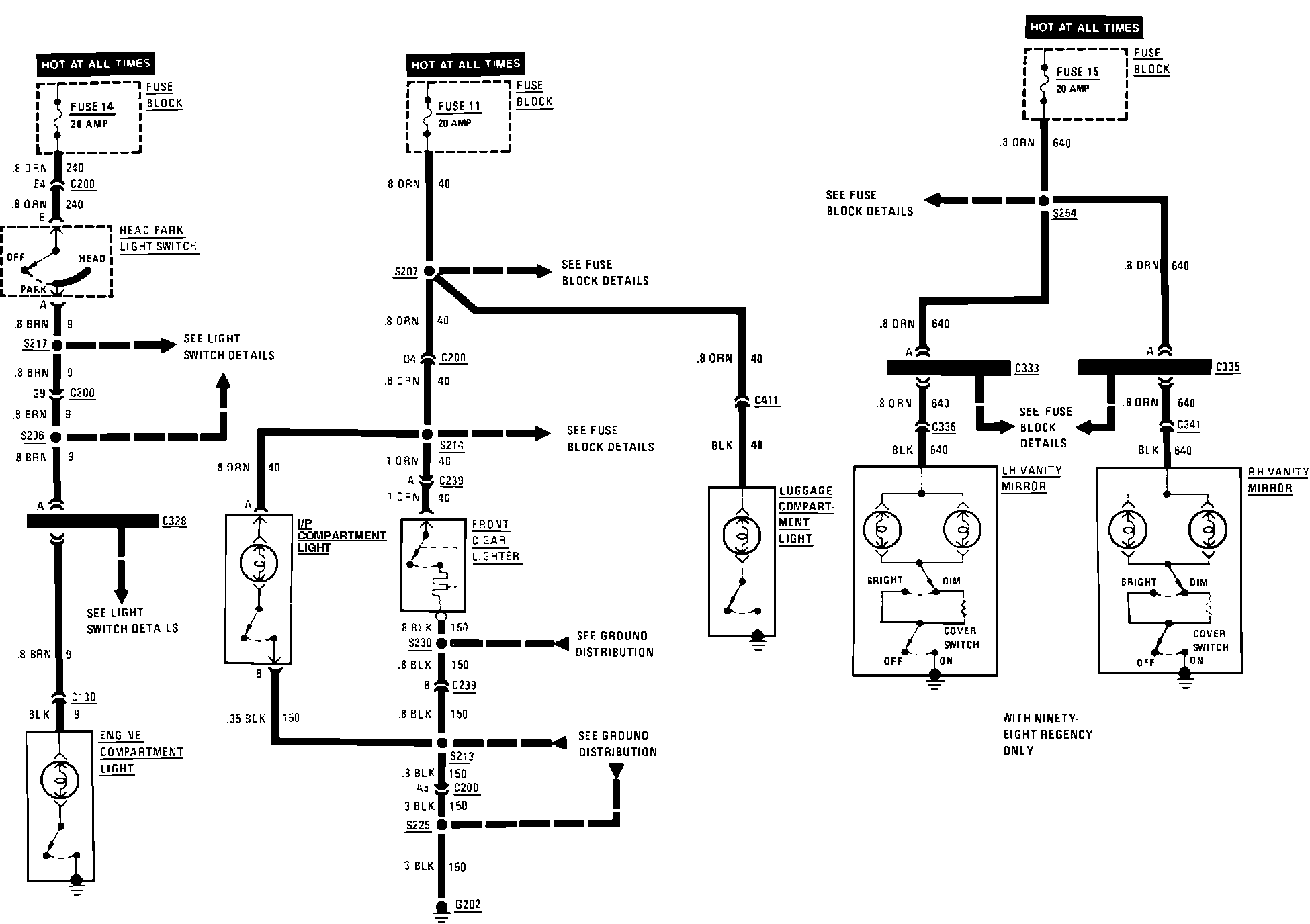

Engine, I/P & Luggage Compartments, Front Cigar Lighter & Vanity Mirror:
