Home >> Oldsmobile >> 1988 >> Firenza L4-121 2.0L VIN K TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Trunk Lamp

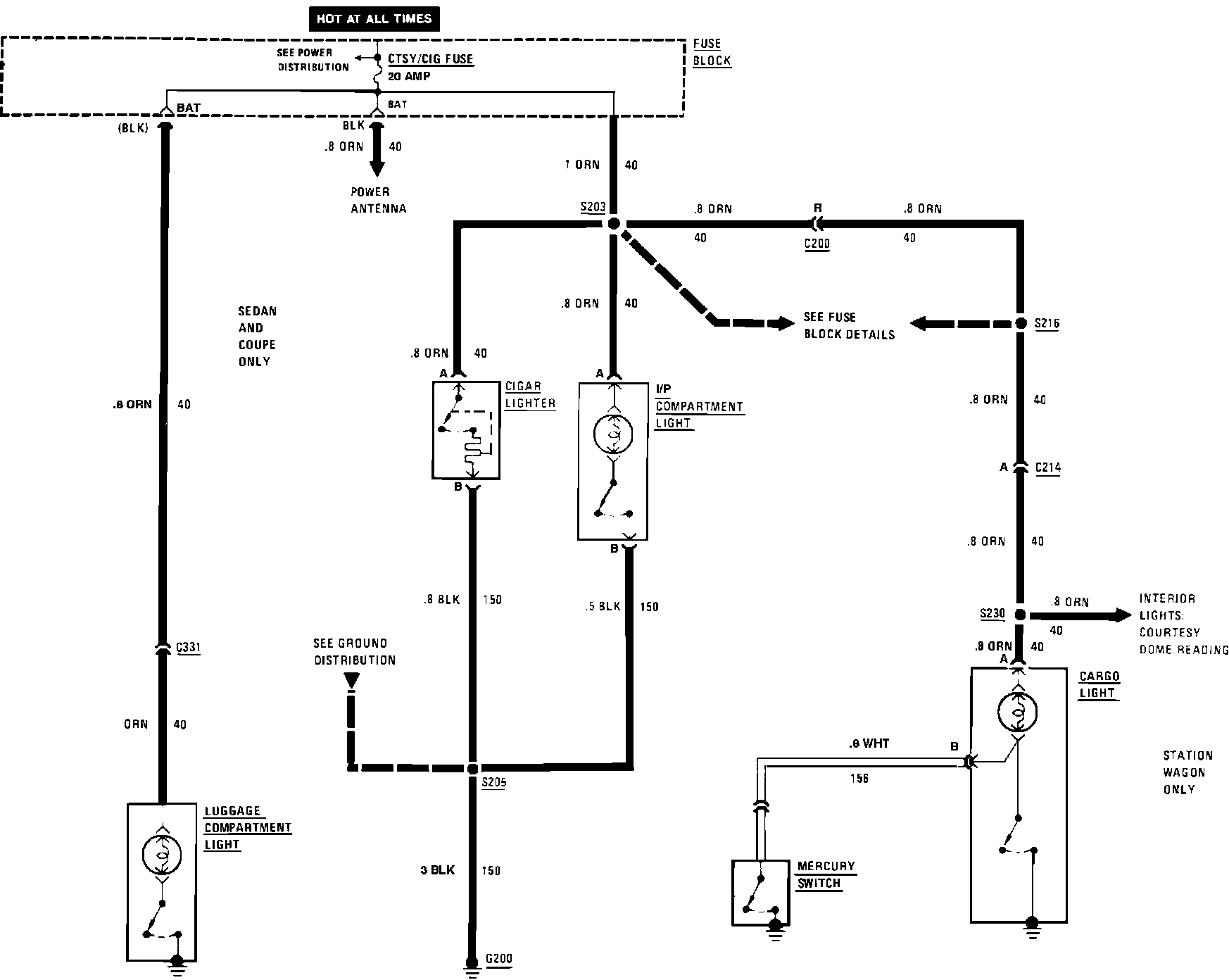

Trunk Lamp

Cigarette Lighter, Luggage, I/P & Cargo Compartment:
