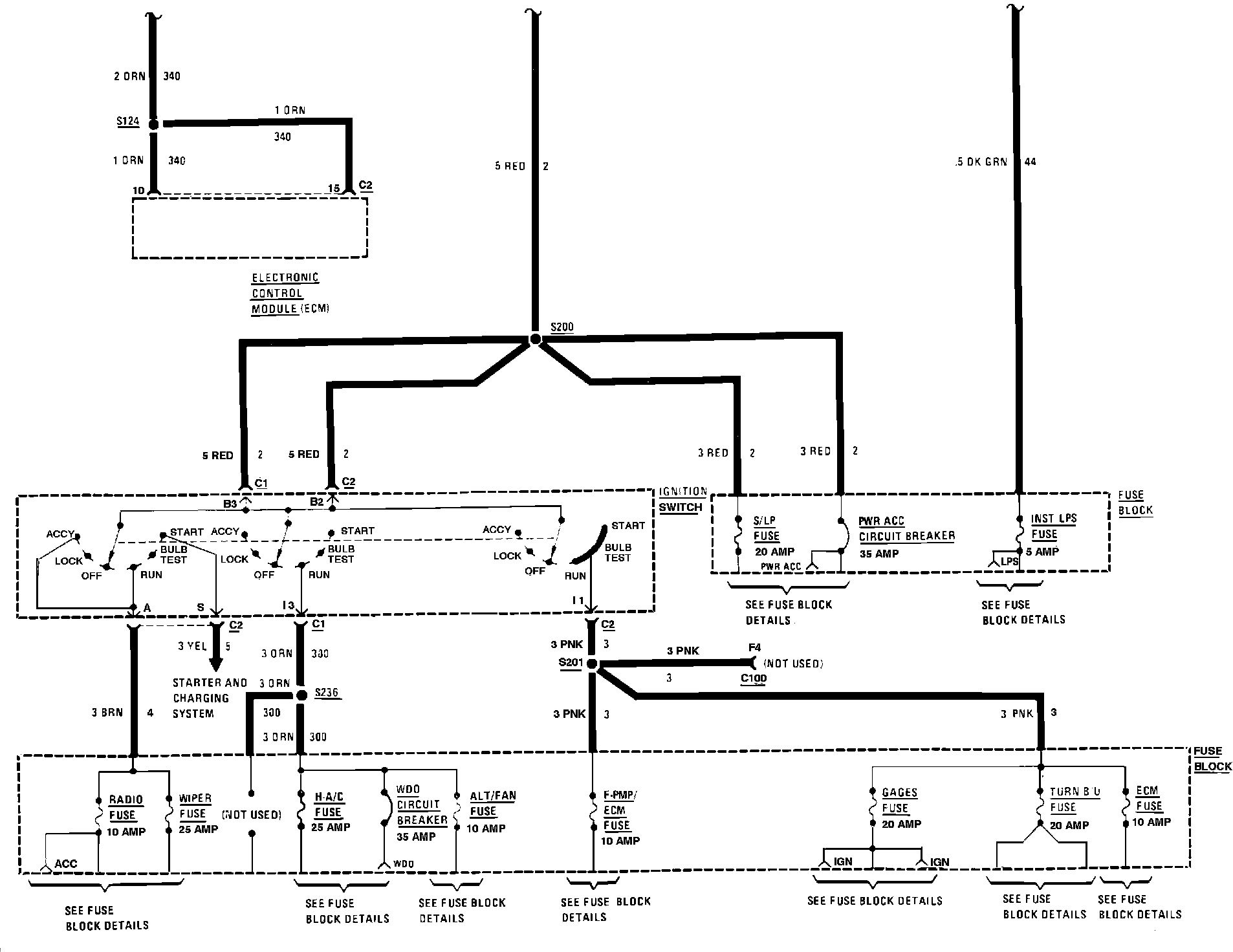

Power Distribution Wiring Circuit - VIN 1

Power Distribution Wiring Circuit - VIN 1:



Power Distribution Wiring Circuit - VIN 1:
