Power Distribution Wiring Circuit - VIN K

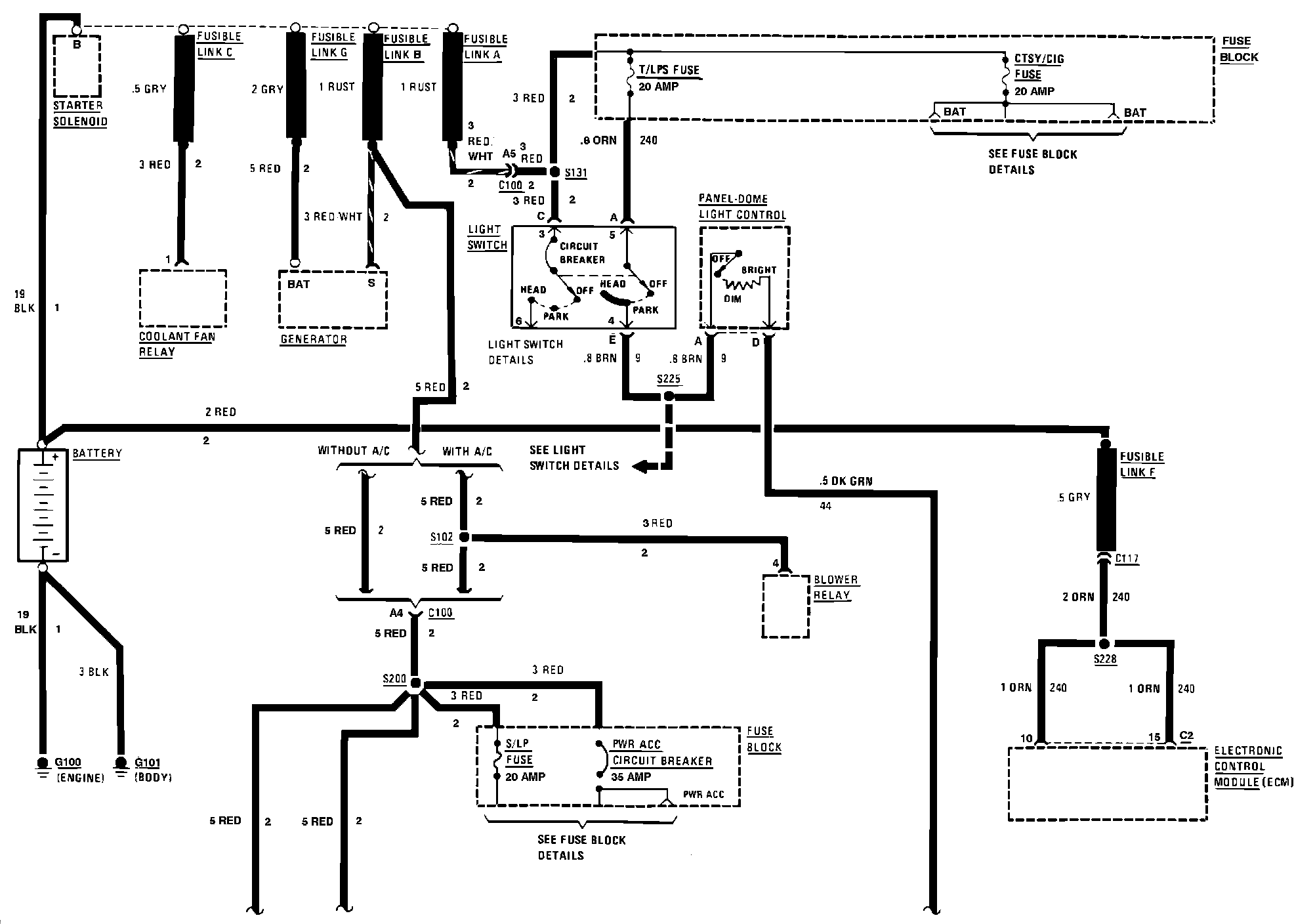

Power Distribution Wiring Circuit - VIN K:

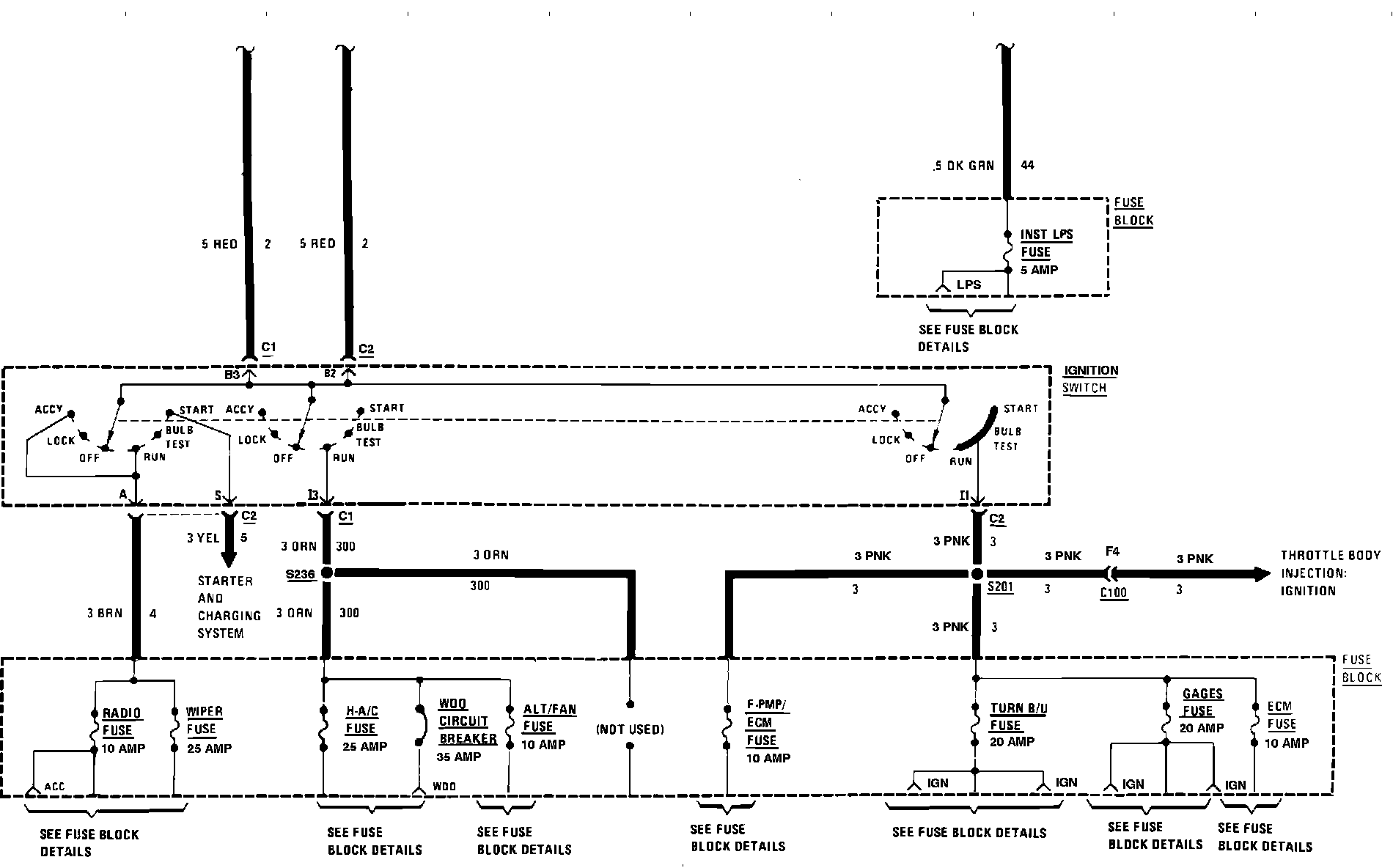

Power Distribution Wiring Circuit - VIN K:
