System Specifications

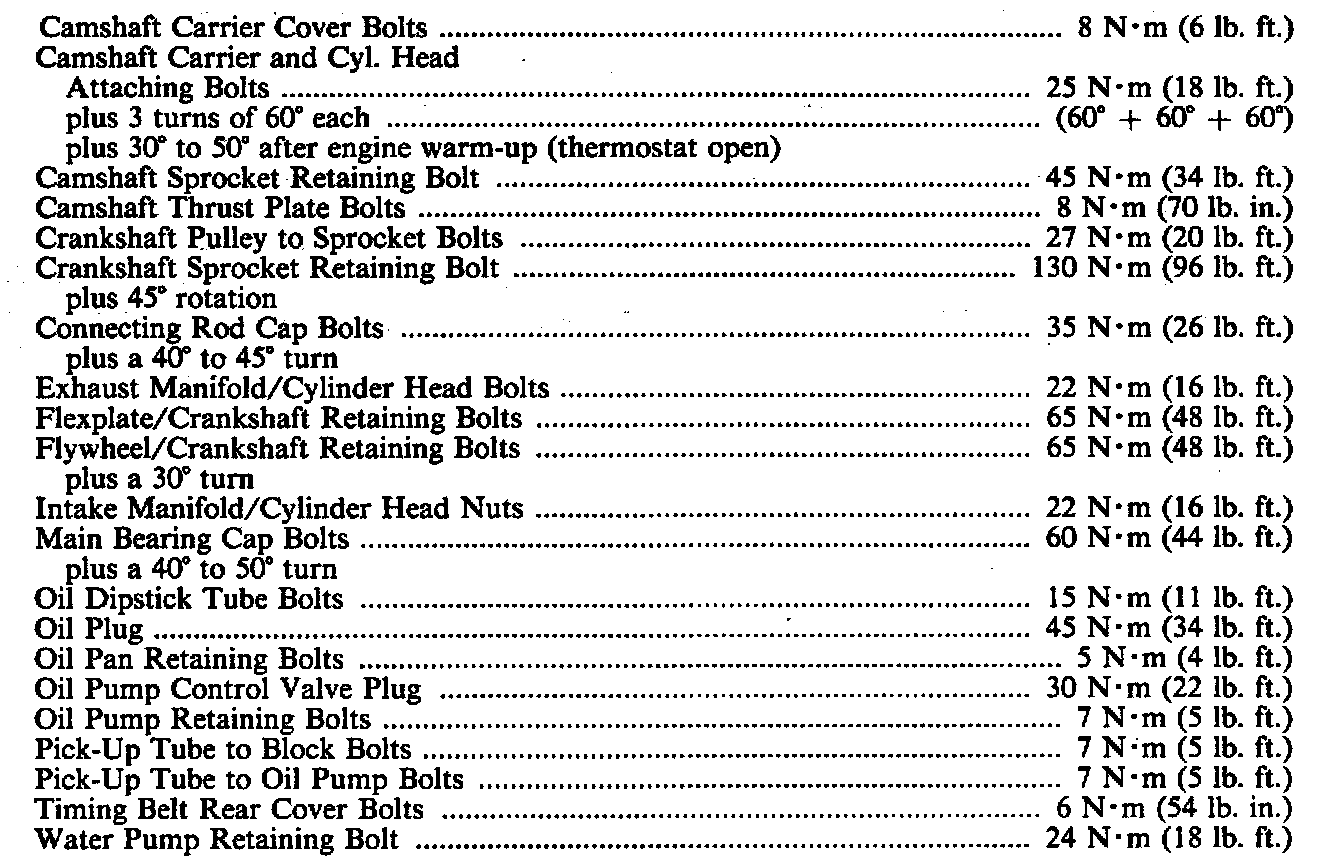

Torque Specifications:

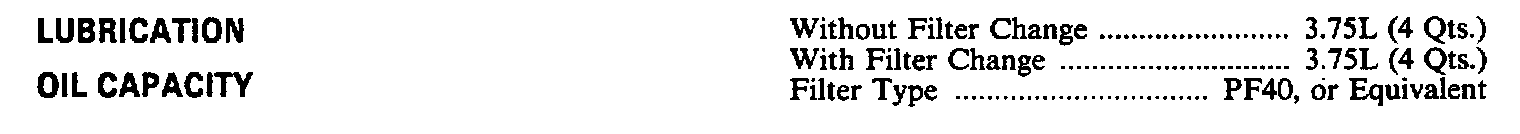

Engine Specifications:

Engine Specifications (METRIC):

Engine Specifications (ENGLISH):

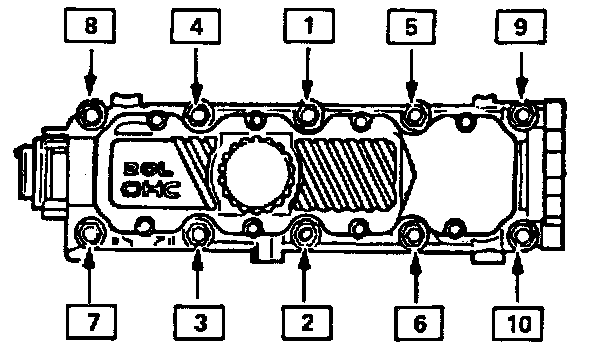

Camshaft Carrier And Cylinder Head Loosening Sequence:

Camshaft Carrier And Cylinder Head Torque Sequence:
