Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1988
>>
Firenza L4-121 2.0L VIN K TBI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Rear
Rear

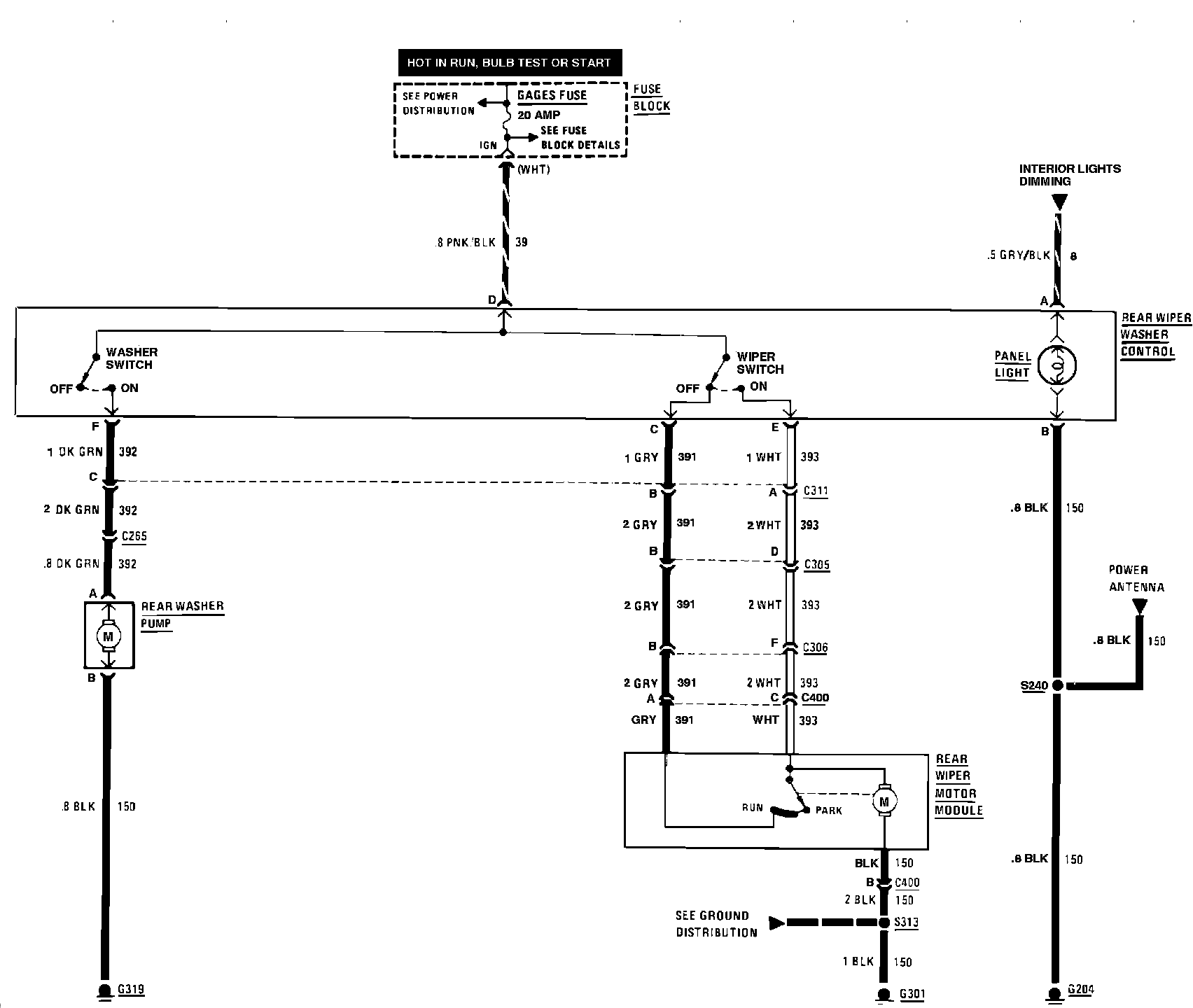

Rear Wiper-Washer Wiring Circuit:
