Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1988
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Mirrors
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

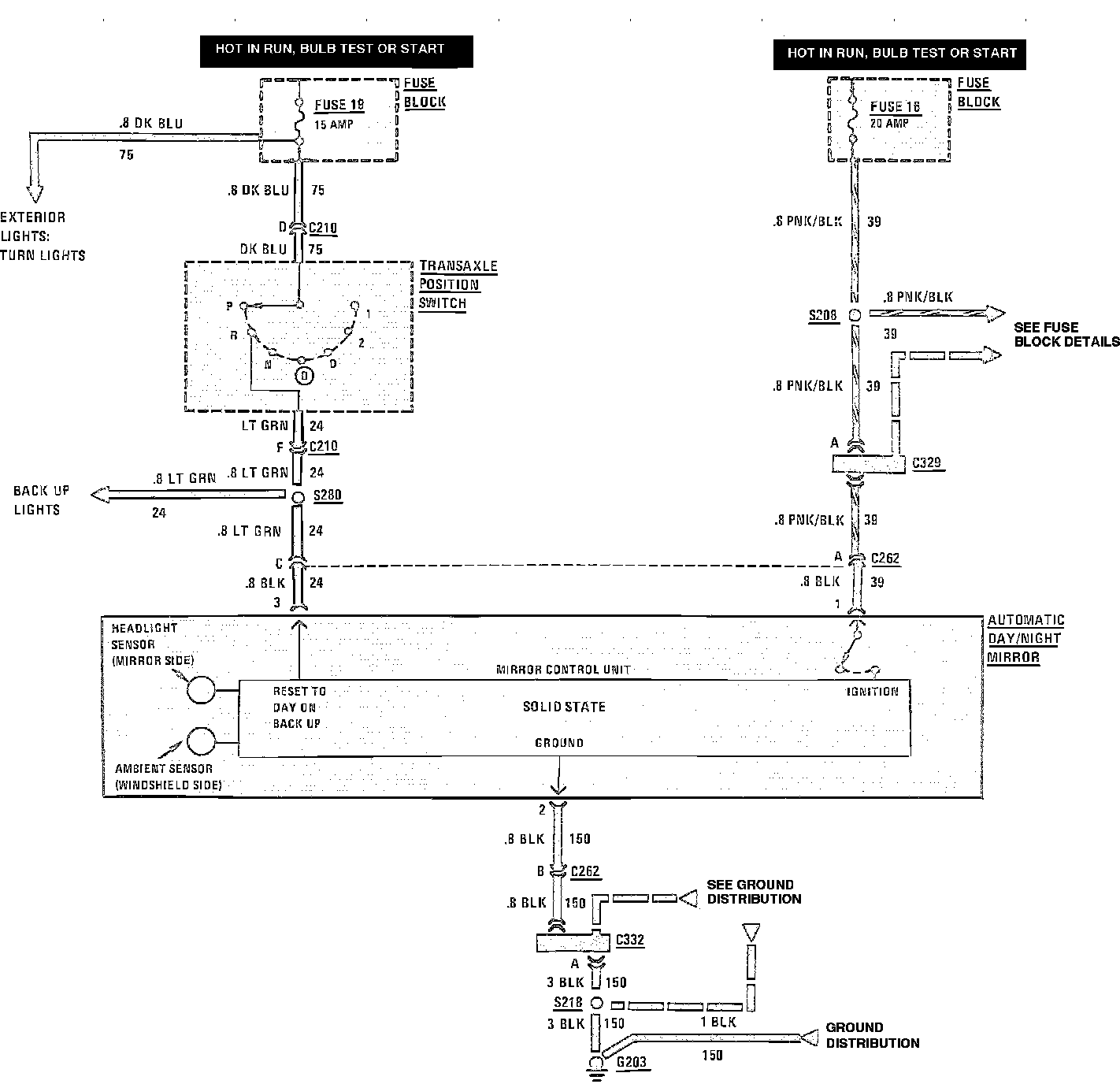

Automatic Day/Night Mirror Wiring Circuit:
