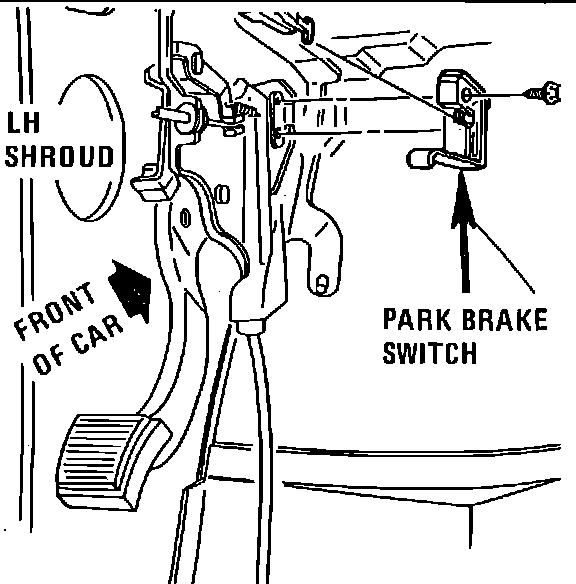

Park Brake Switch
Below LH Side Of I/P.:
Below LH Side Of I/P, Top Of Park Brake Assembly
Applicable to: 88 & 98
