Home >> Oldsmobile >> 1988 >> Ninety-Eight V6-3800 3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antenna >> Power Antenna Wiring Circuit (Exc. Touring Sedan)

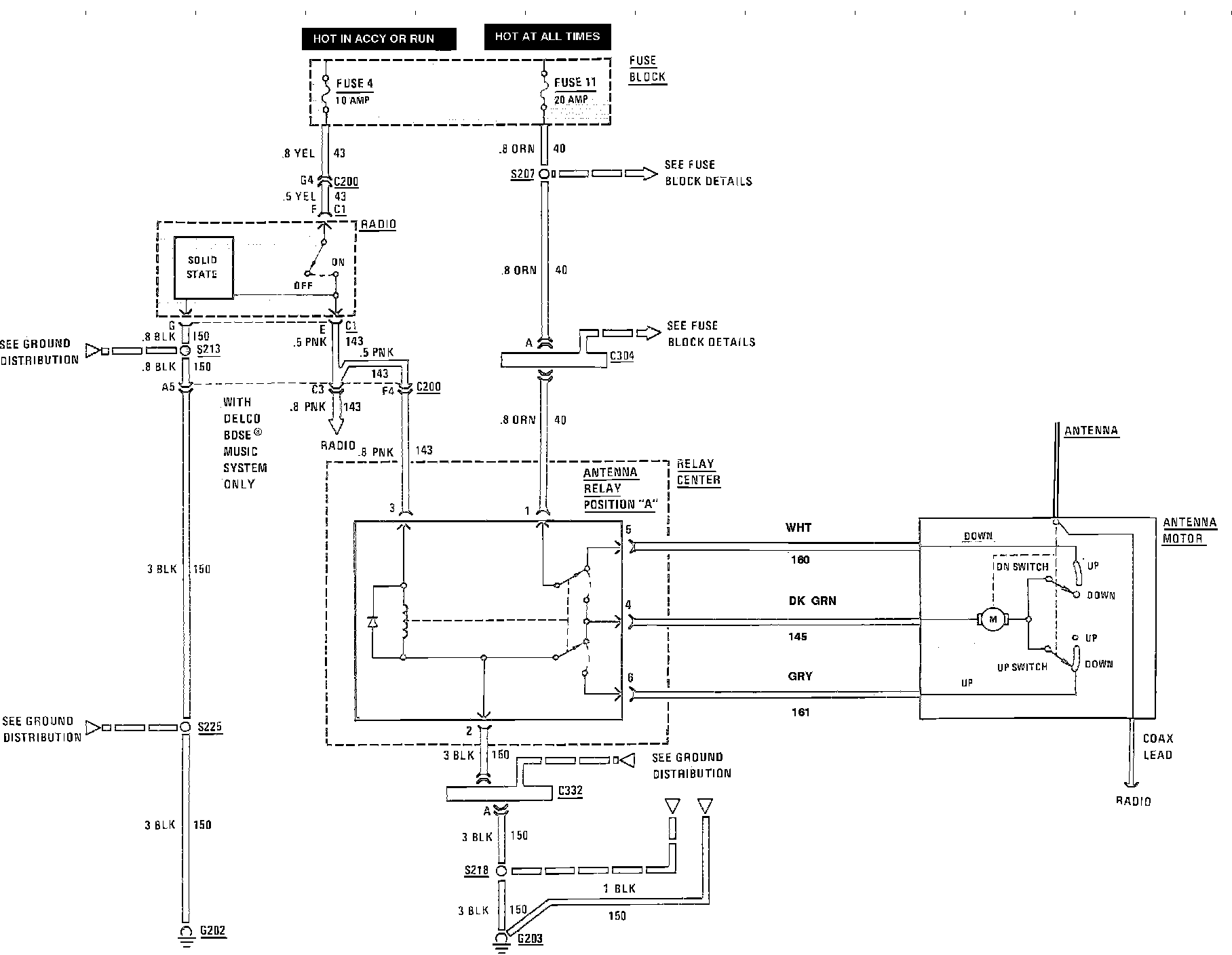

Power Antenna Wiring Circuit (Exc. Touring Sedan)

Power Antenna Wiring Circuit (Exc. Touring Sedan):
