Heated Glass Element
>>
Rear Window (W/Manual A/C)
Rear Window (W/Manual A/C)

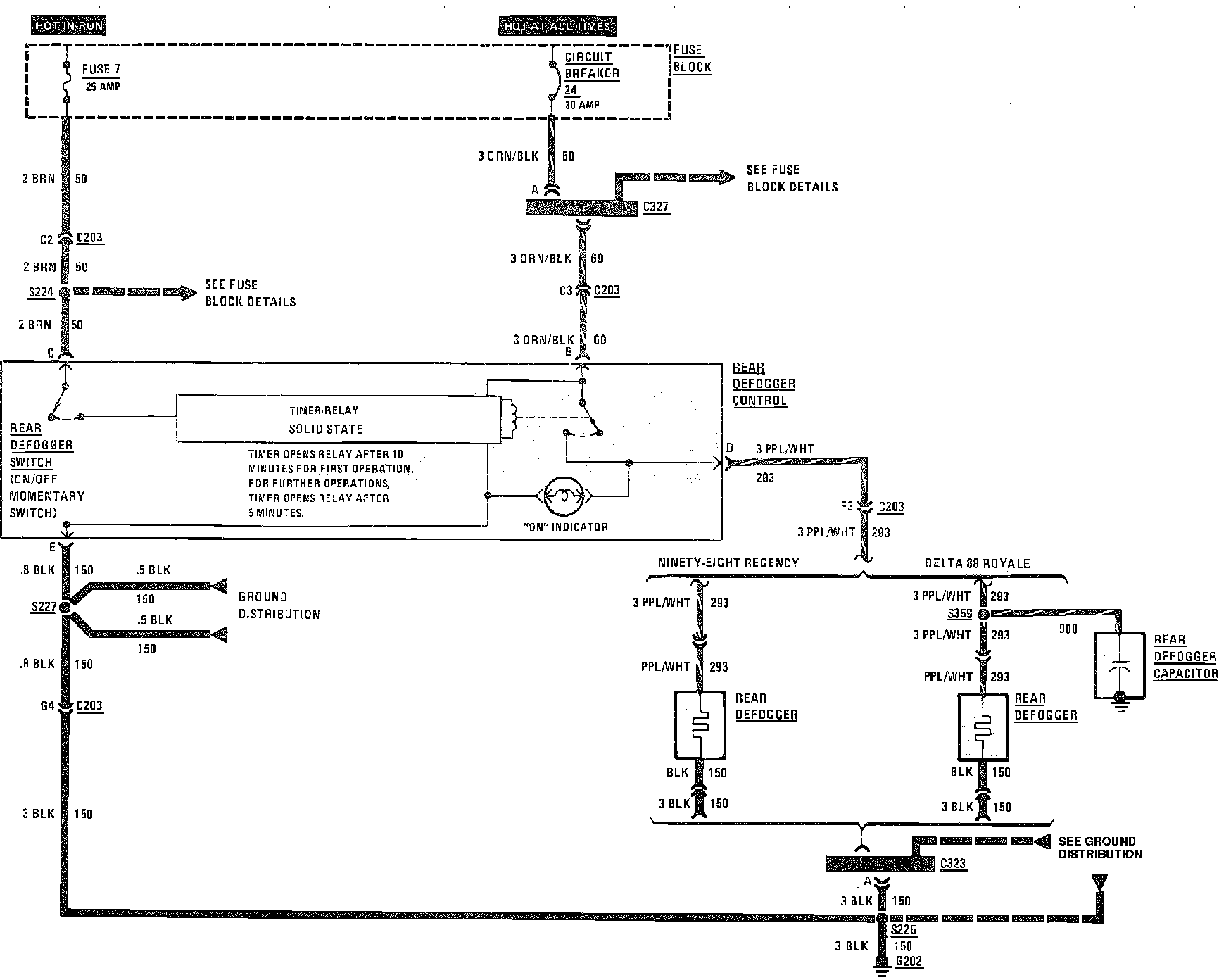

Defogger Wiring Circuit (Rear Window, W/Manual A/C):
