Home
>>
Oldsmobile
>>
1988
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Delco Bose System
With Delco Bose System

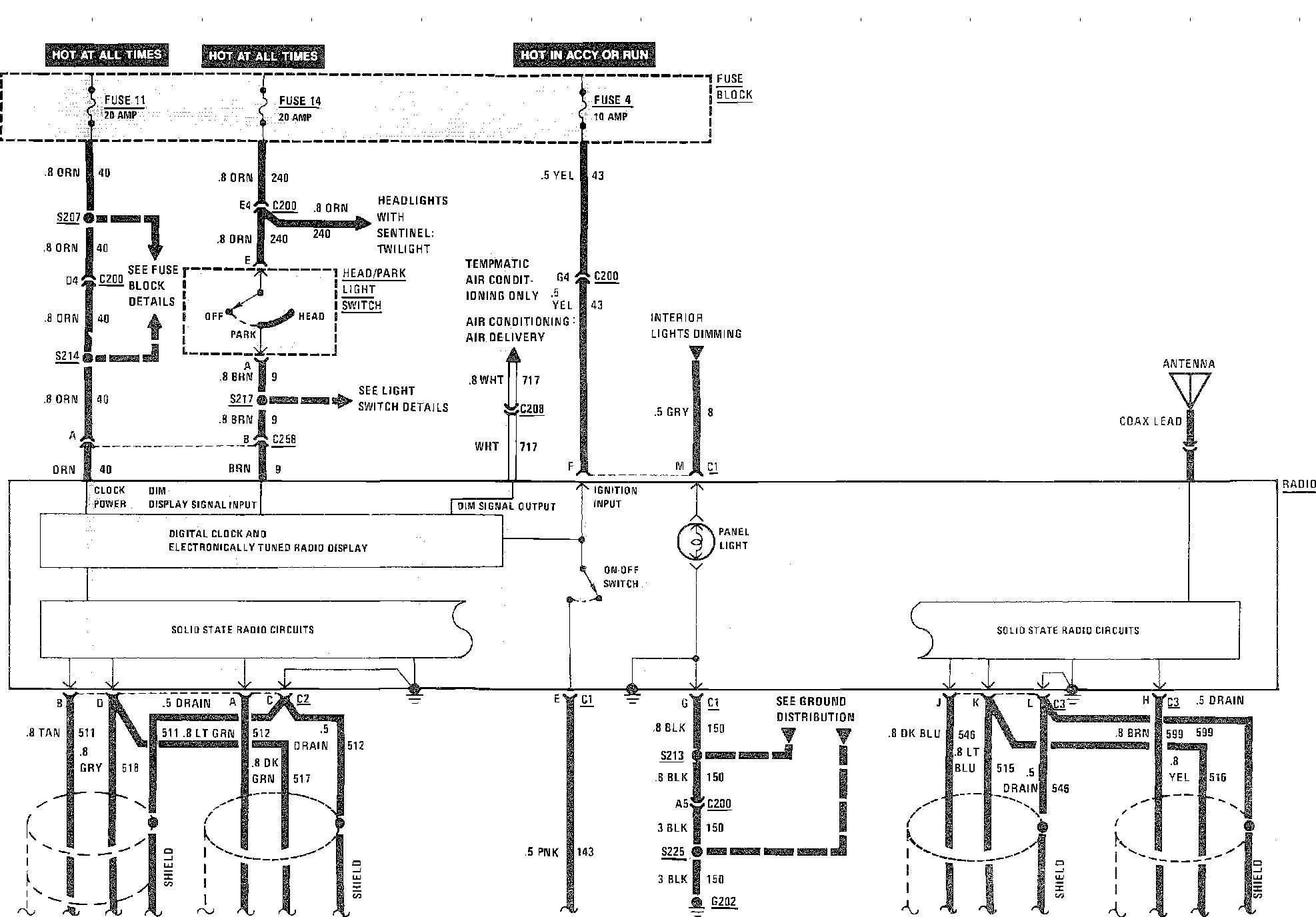

Radio Wiring Circuit (Delco):
Radio Wiring Circuit (Delco):
