4-Door Less 36-Way Door Connector (98)
4-Door Less 36-Way Door Connector (98)

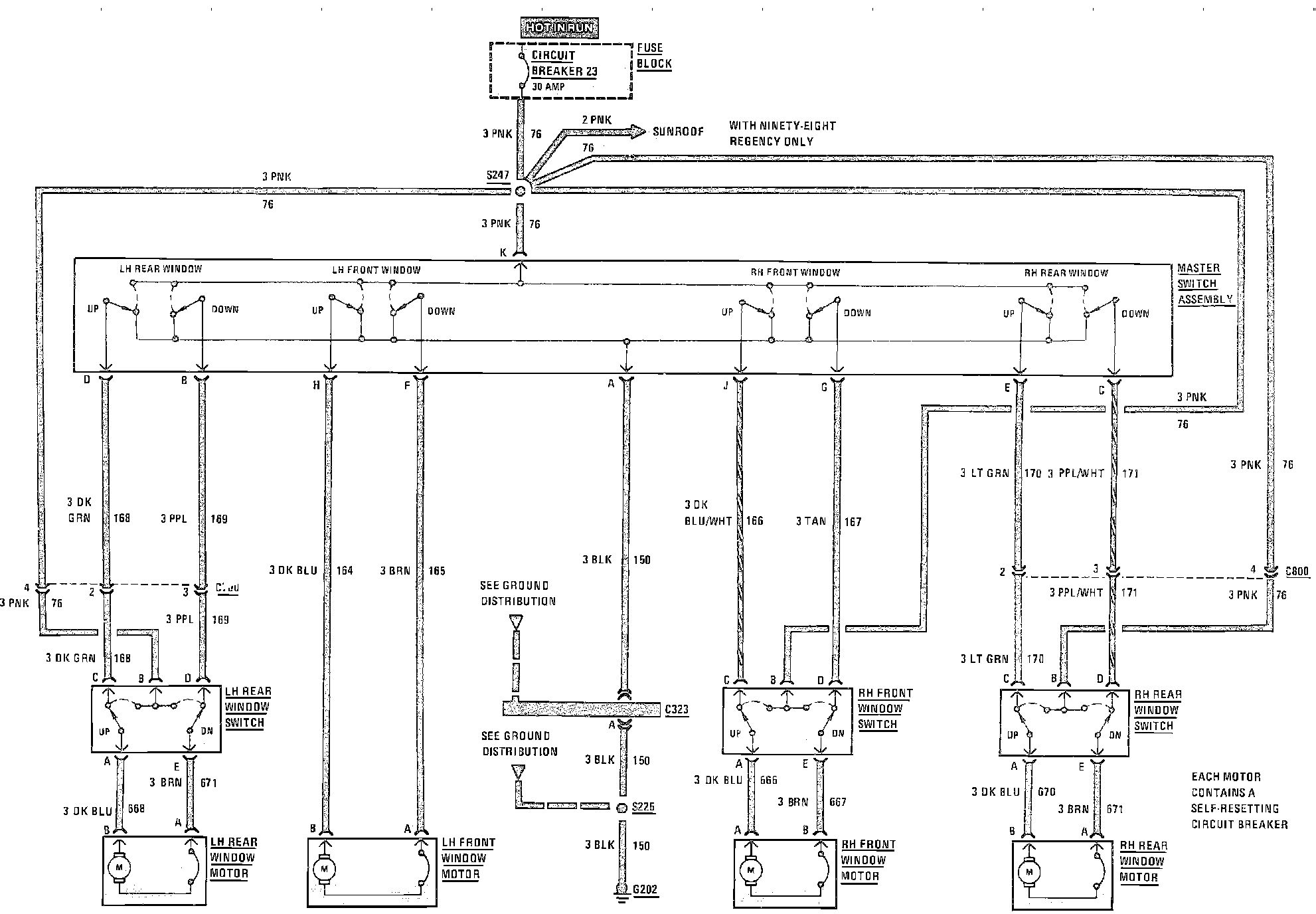

Power Window Wiring Circuit (4-Door, Less 36-Way Door Connector):
