Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1988
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
4-Door W/36-Way Door Connector (88)
4-Door W/36-Way Door Connector (88)

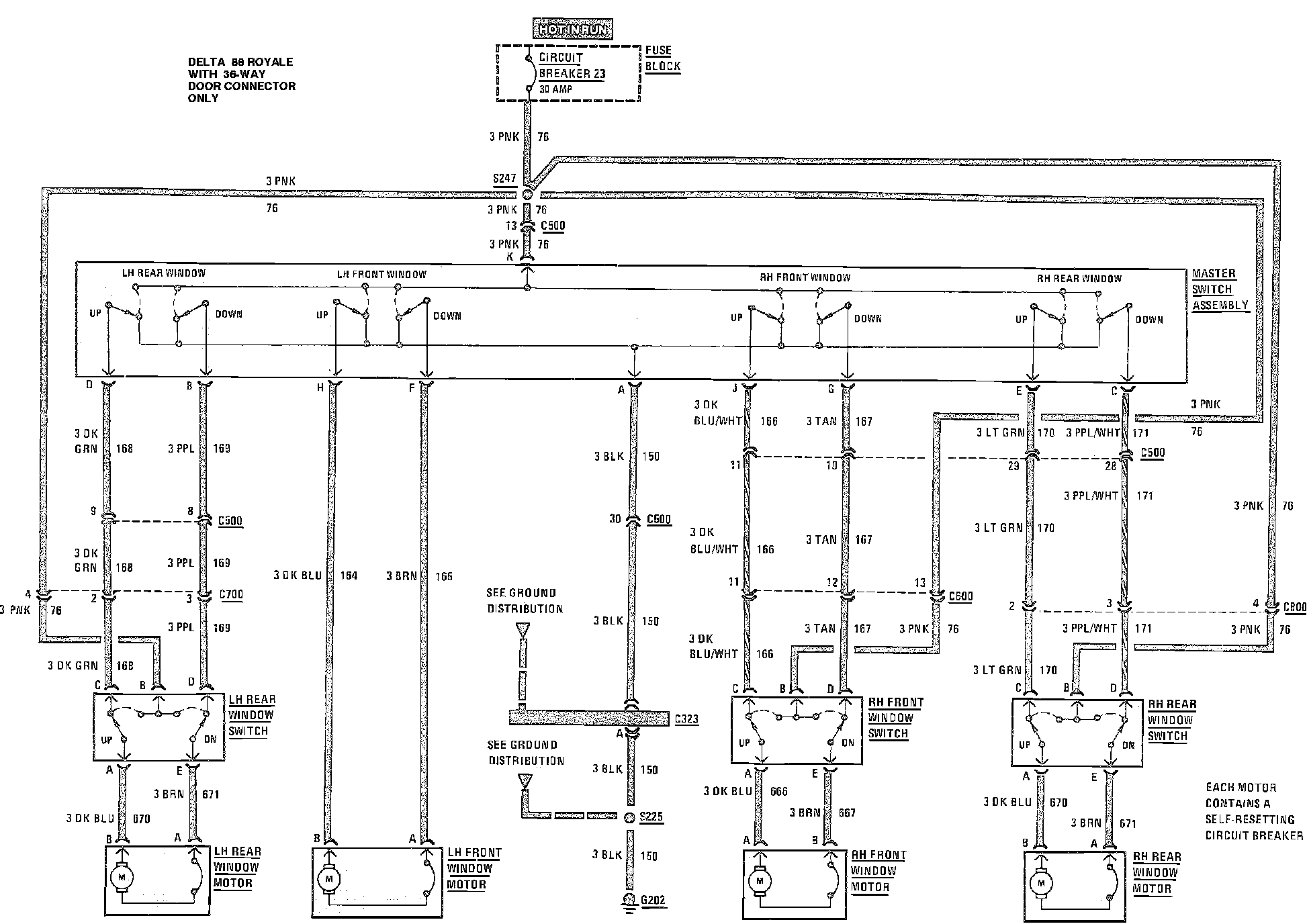

Power Window Wiring Circuit (4-Door, W/36-Way Door Connector):
