Oldsmobile
>>
1988
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Pulse
Pulse

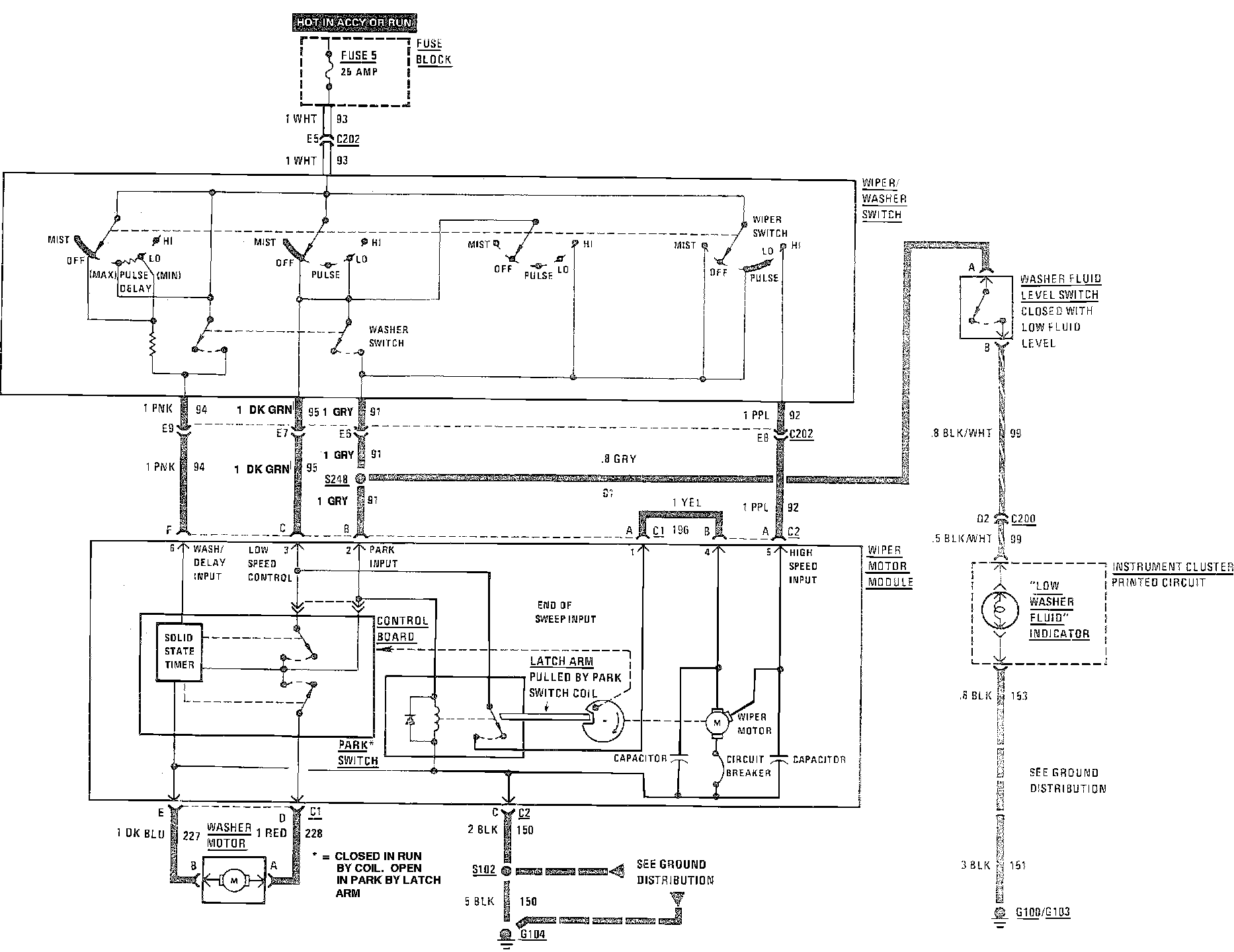

Windshield Washer/Wiper Wiring Circuit (W/Pulse)figure 465:
