Electrical Diagrams

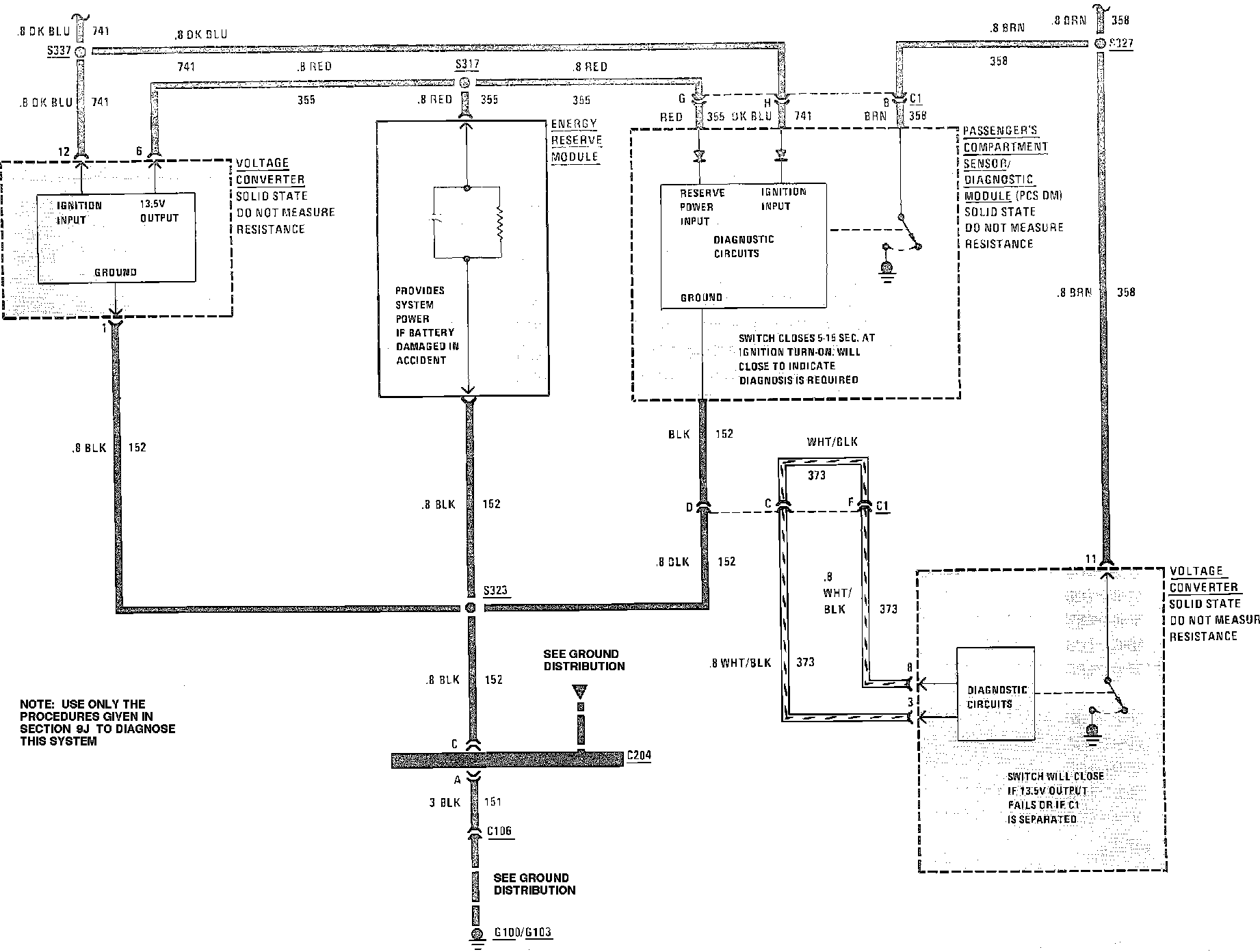

Inflatable Restraint System Wiring Circuit:



Inflatable Restraint System Wiring Circuit:
