Theft Deterrent Horn Relay

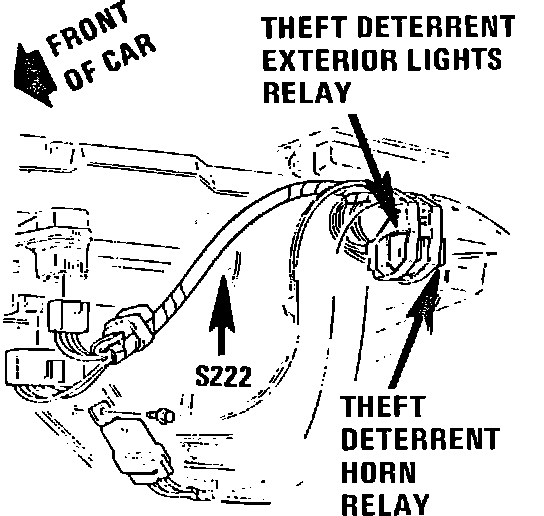

Theft Deterrent Horn Relay
Behind LH Side Of I/P.:
Behind LH Side Of I/P, Above Steering Column
Applicable to: Toronado
