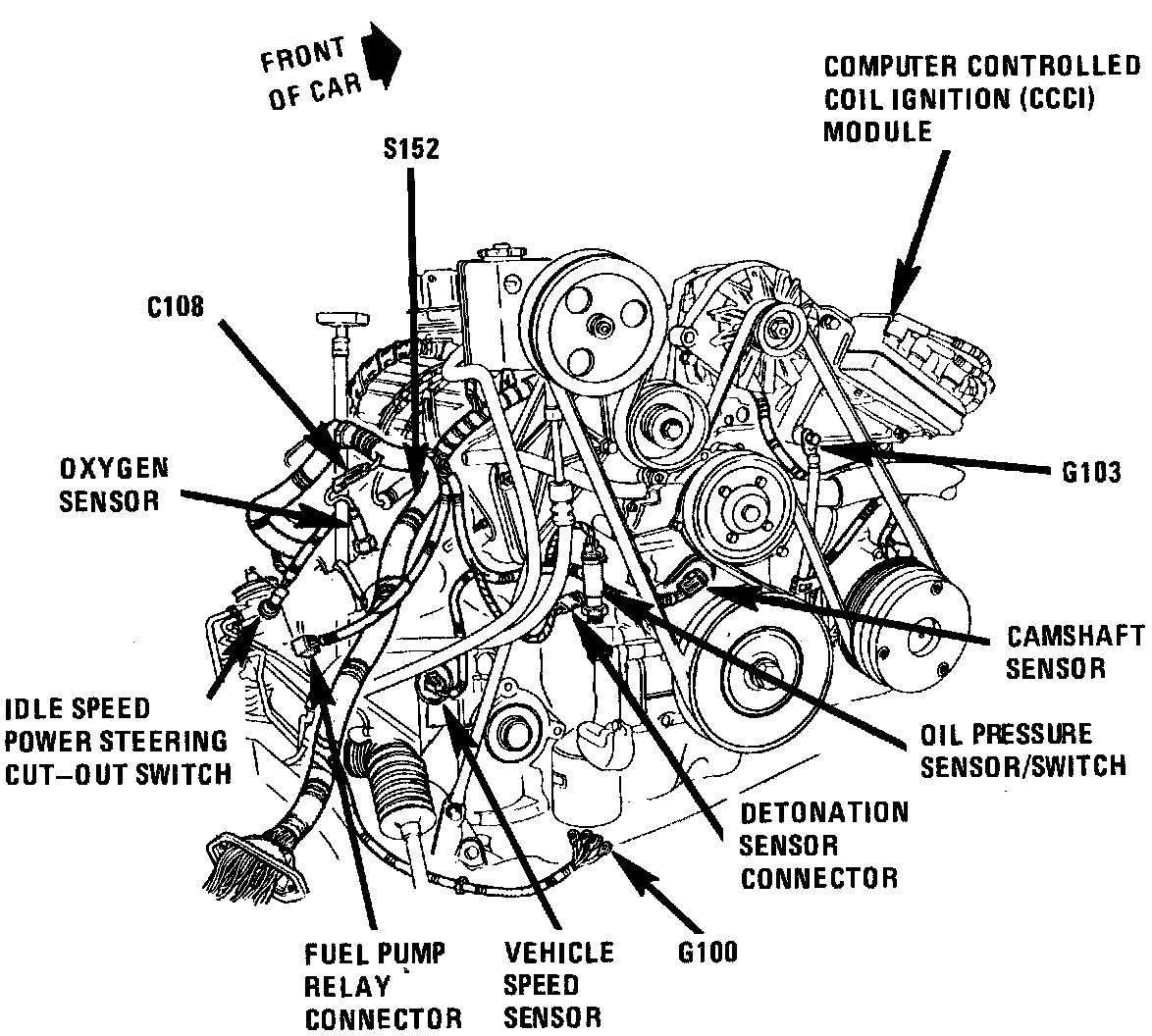

Oil Pressure Sensor
RH Side Of Engine.:
Lower RH Rear Of Engine
Applicable to: Reatta, Riviera & Toronado
