Less Cellular Telephone

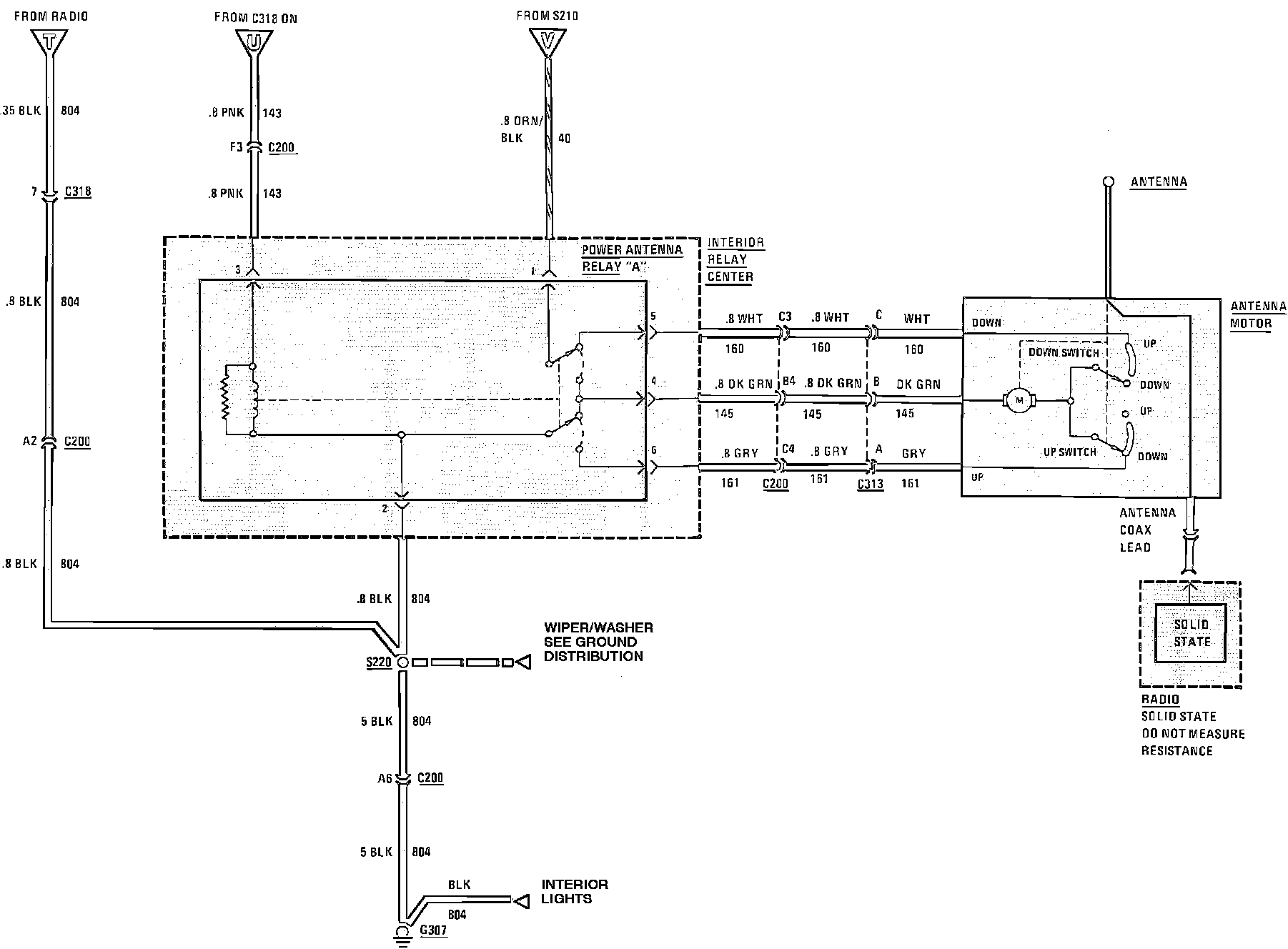

Power Antenna Wiring Circuit (Part 1 Of 2) Less Cellular Telephone:

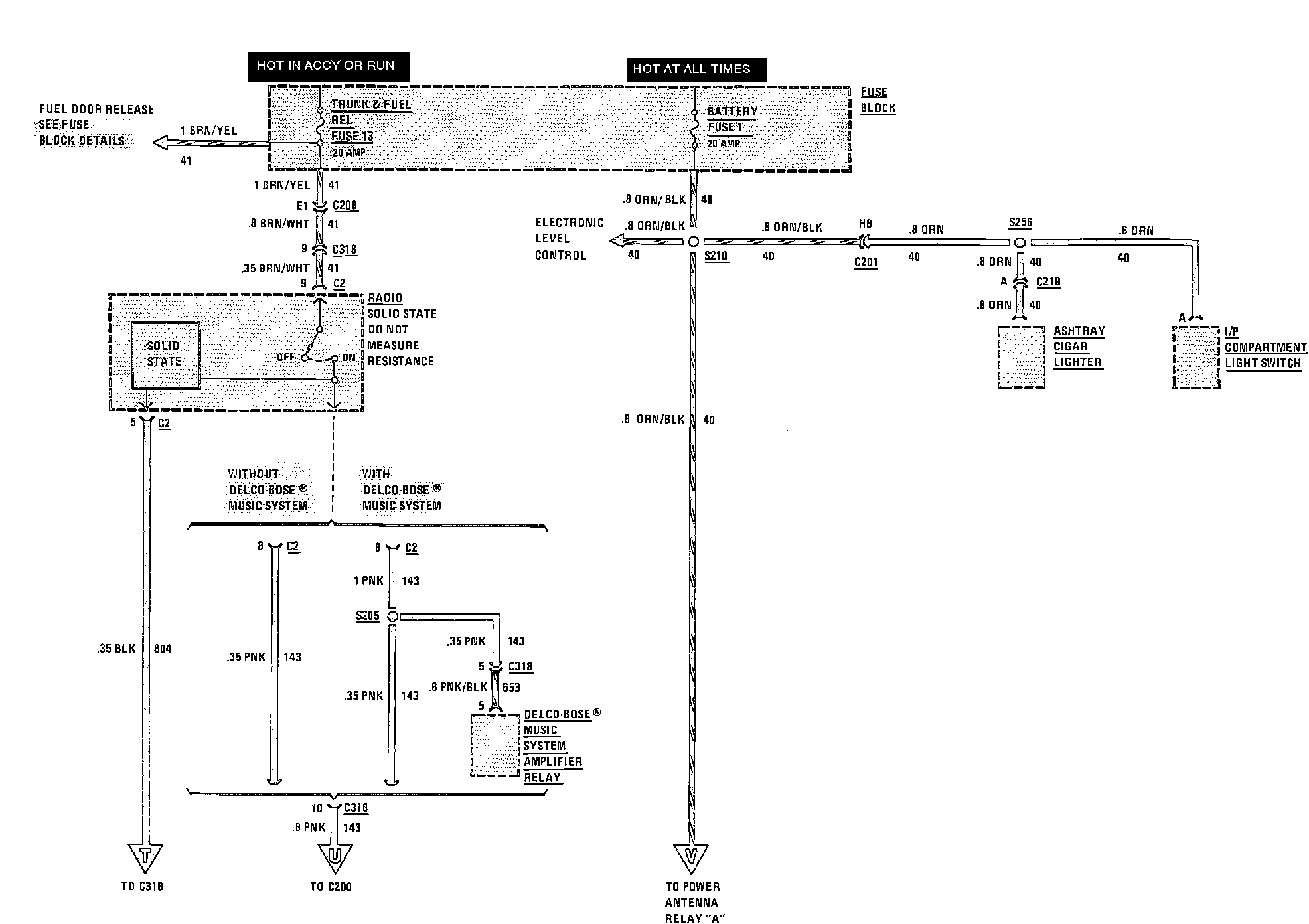

Power Antenna Wiring Circuit (Part 2 Of 2):
