Part 3 of 4

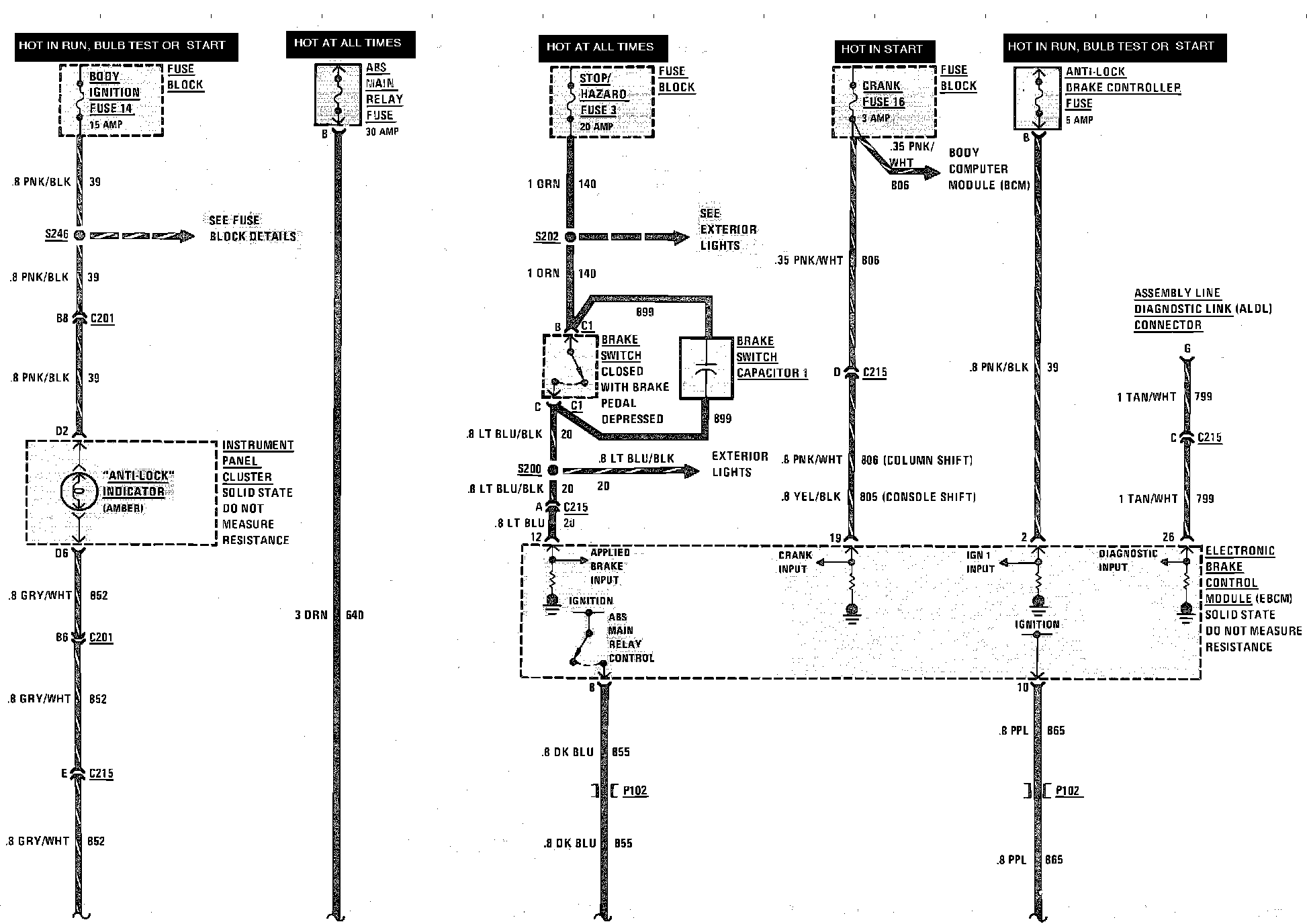

Anti-lock Brake System Wiring Circuit (Part 3a Of 4):



Anti-lock Brake System Wiring Circuit (Part 3b Of 4):
