Headlamp Reminder Indicator
Headlamp Reminder Indicator

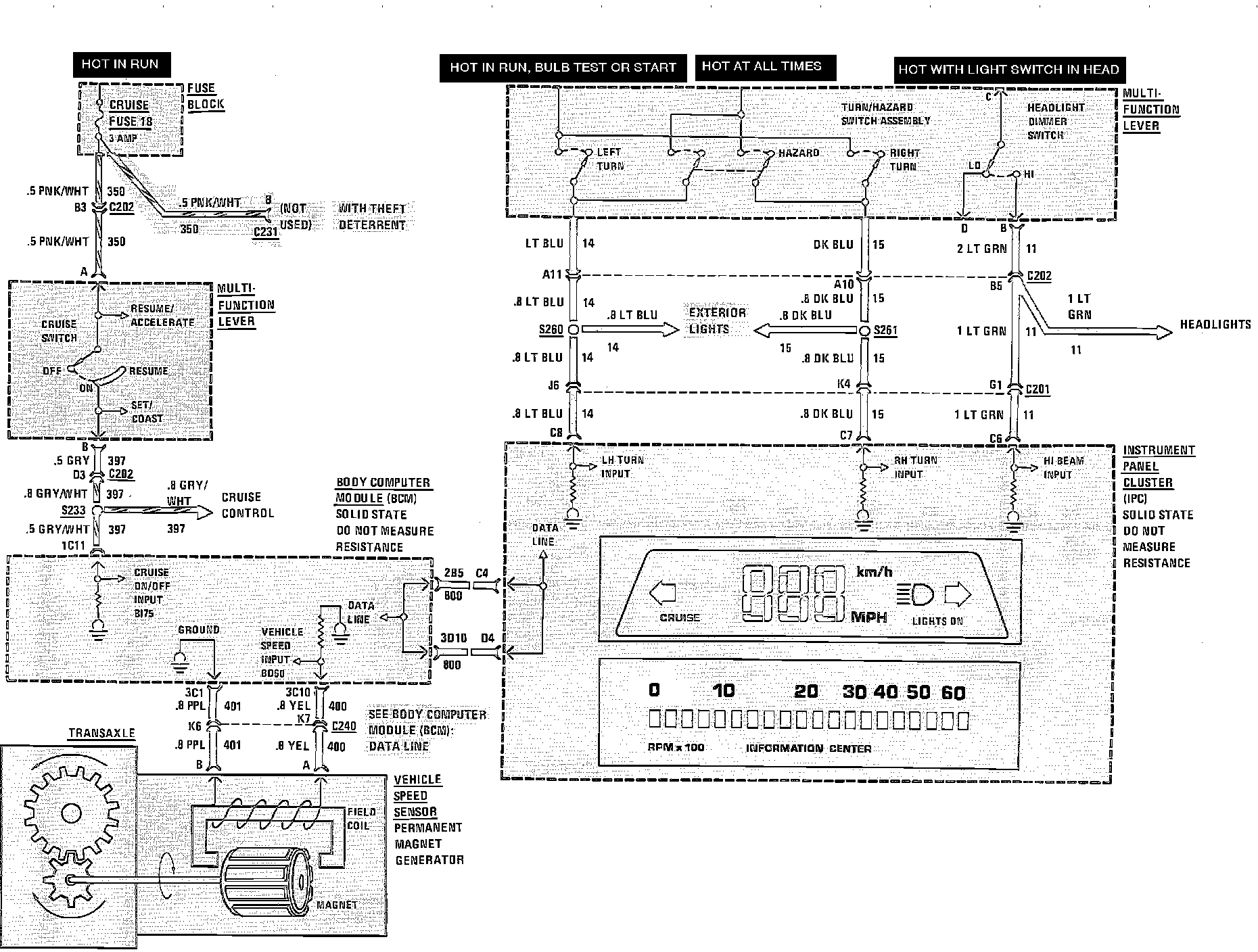

Instrument Panel Cluster Wiring Circuit (Hi Beam Indicator):
